ZSS-115-02-G-D-630
Samtec Inc.
Samtec Inc.
CONN HDR .100" 30POS
$6.50
Available to order
Reference Price (USD)
1+
$6.50000
500+
$6.435
1000+
$6.37
1500+
$6.305
2000+
$6.24
2500+
$6.175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-115-02-G-D-630 male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.630" (16.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
68602-226HLF
Samtec Inc.
TSM-119-03-F-DV-A
Mill-Max Manufacturing Corp.
435-40-244-00-160000
Preci-Dip
892-70-060-10-004101
Samtec Inc.
ZSS-117-05-L-D-940
Sullins Connector Solutions
PBC28DFDN
Samtec Inc.

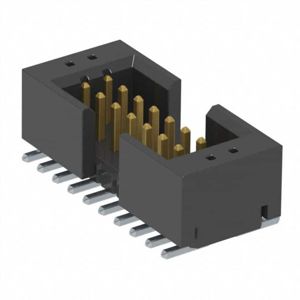

FTM-106-02-L-DV-S
Samtec Inc.

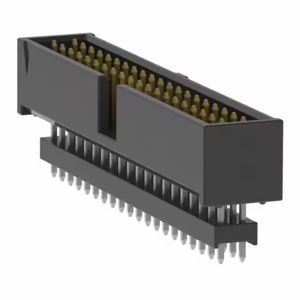

ZSS-120-01-L-D-520
