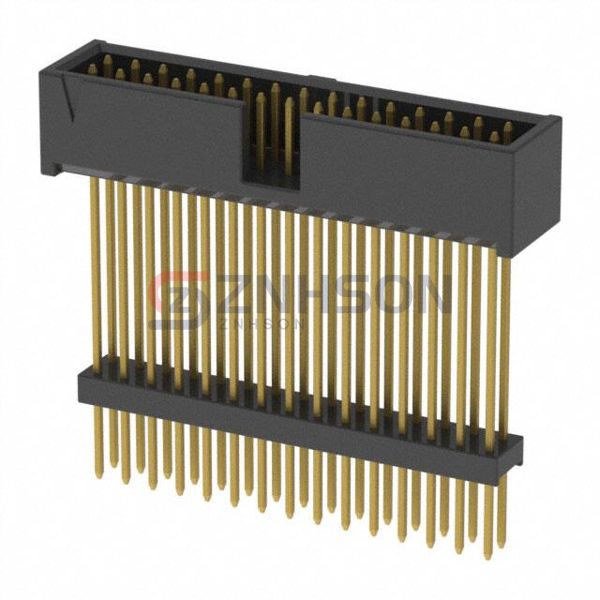

ZSS-115-09-G-D-1165
Samtec Inc.
Samtec Inc.
CONN HDR .100" 30POS
$7.76
Available to order
Reference Price (USD)
1+
$7.76000
500+
$7.6824
1000+
$7.6048
1500+
$7.5272
2000+
$7.4496
2500+
$7.372
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the ZSS-115-09-G-D-1165 rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.265" (6.73mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.165" (29.59mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-115-01-G-D-SM-A-P-TR
Molex
0705430107
JST Sales America Inc.
BS3P-SHF-1AA(LF)(SN)
Mill-Max Manufacturing Corp.

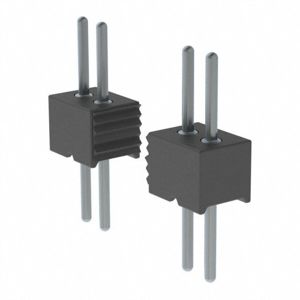

850-90-045-10-001000
TE Connectivity AMP Connectors

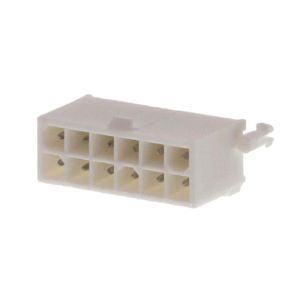

1-770621-0
Samtec Inc.

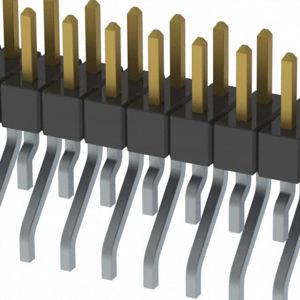

MMT-132-01-S-DH
