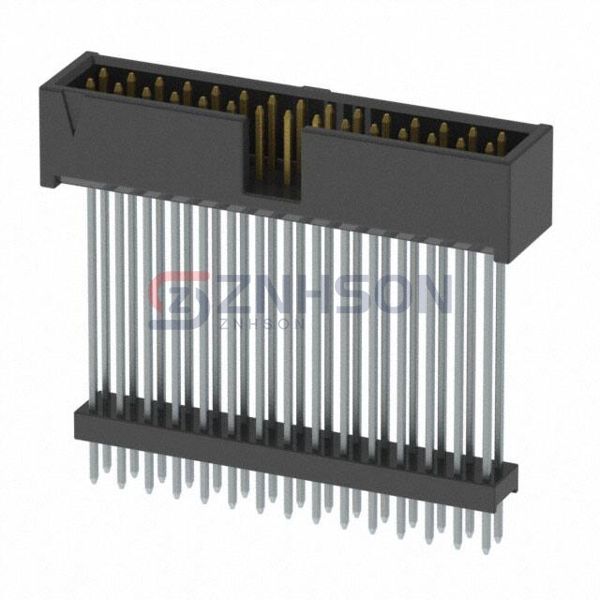

ZSS-115-09-L-D-1286
Samtec Inc.
Samtec Inc.
CONN HDR .100" 30POS
$6.43
Available to order
Reference Price (USD)
1+
$6.43000
500+
$6.3657
1000+
$6.3014
1500+
$6.2371
2000+
$6.1728
2500+
$6.1085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-115-09-L-D-1286 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.144" (3.66mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.286" (32.66mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
2-292141-0
Preci-Dip
350-10-122-00-012101
Molex
46207-0210
TE Connectivity AMP Connectors

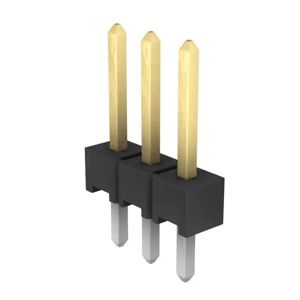

5-146291-3
Samtec Inc.

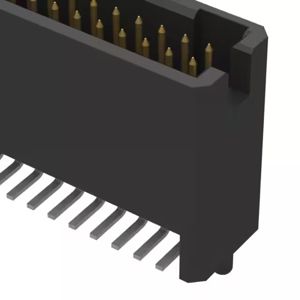

TFC-115-32-F-D-A-TR
Samtec Inc.

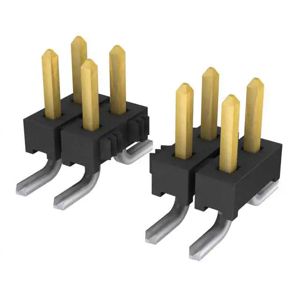

TMM-115-01-F-D-SM-P
Molex

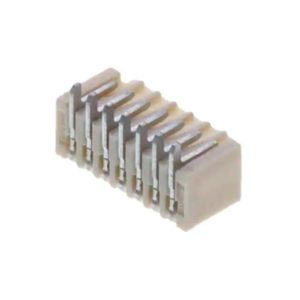

0874370773
Samtec Inc.

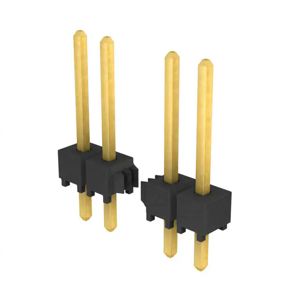

TSW-117-14-G-S
Samtec Inc.

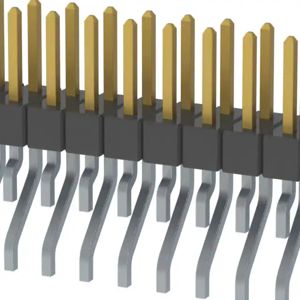

MMT-124-02-L-DH-K
