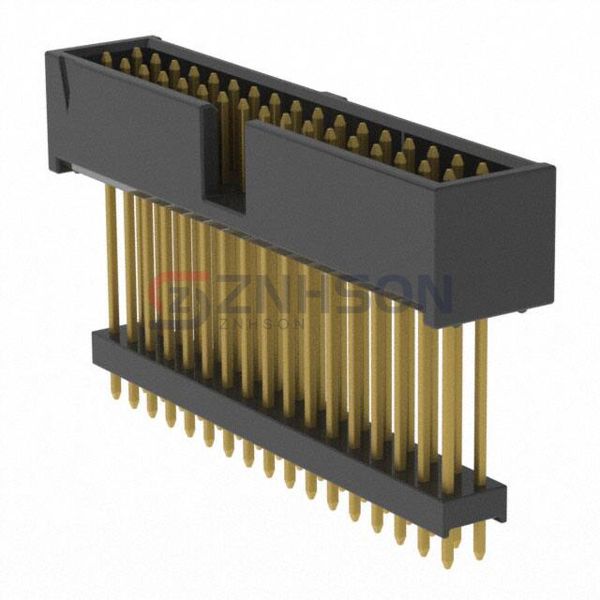

ZSS-117-05-G-D-910
Samtec Inc.
Samtec Inc.
CONN HDR .100" 34POS
$8.64
Available to order
Reference Price (USD)
1+
$8.64000
500+
$8.5536
1000+
$8.4672
1500+
$8.3808
2000+
$8.2944
2500+
$8.208
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the ZSS-117-05-G-D-910 rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the ZSS-117-05-G-D-910 meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.910" (23.11mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC36DGBN
Samtec Inc.
HTSW-108-07-T-S-007
TE Connectivity AMP Connectors
1909782-3
Samtec Inc.
FTMH-106-03-F-DV-A-P-TR
Molex
0039299082
Preci-Dip
852-80-044-30-002101
Samtec Inc.

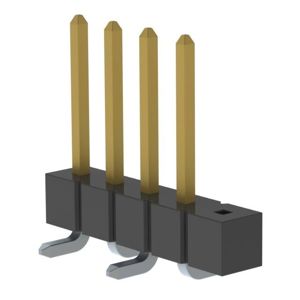

TSM-105-02-S-SV-001
Samtec Inc.

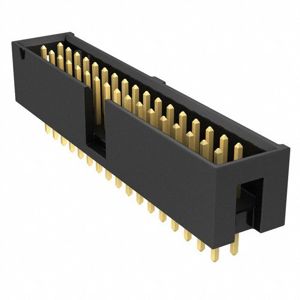

TST-117-01-G-D
Samtec Inc.

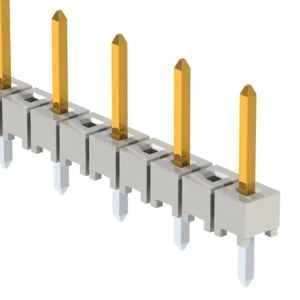

HTSW-220-07-L-S
