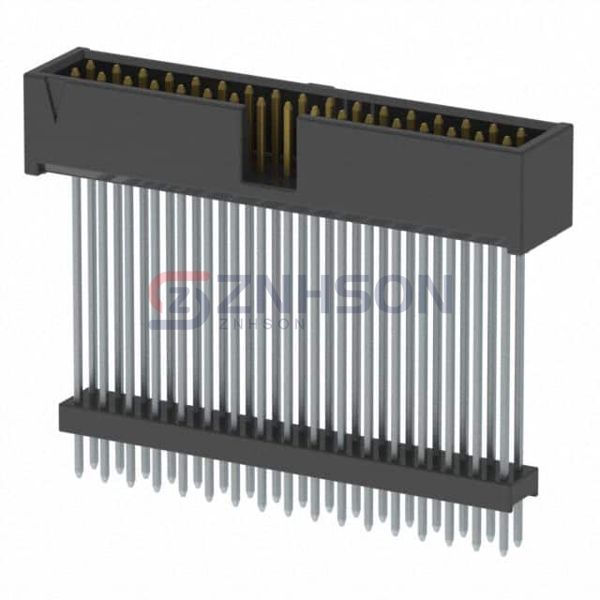

ZSS-117-09-S-D-1290
Samtec Inc.
Samtec Inc.
CONN HDR .100" 34POS
$11.11
Available to order
Reference Price (USD)
1+
$11.11000
500+
$10.9989
1000+
$10.8878
1500+
$10.7767
2000+
$10.6656
2500+
$10.5545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ZSS-117-09-S-D-1290 rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the ZSS-117-09-S-D-1290 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.290" (32.77mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
800-80-056-10-001101
Harwin Inc.
M50-3501042
Molex

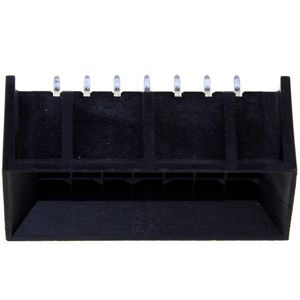

0444321402
Samtec Inc.

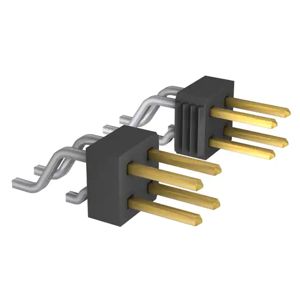

TSM-117-01-L-DH-TR
Samtec Inc.

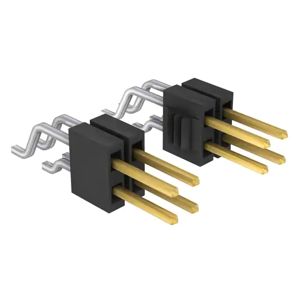

FTSH-145-04-L-DH
Amphenol ICC (FCI)

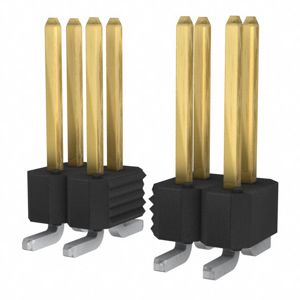

95278-102-28LF
Molex

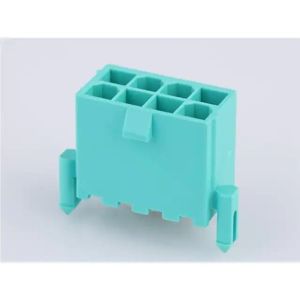

1724470510
Samtec Inc.

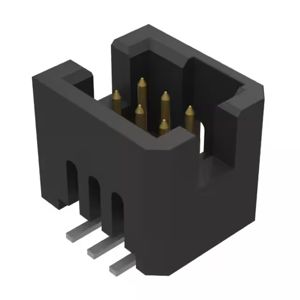

TFC-103-02-L-D-K-TR
Amphenol ICC (FCI)

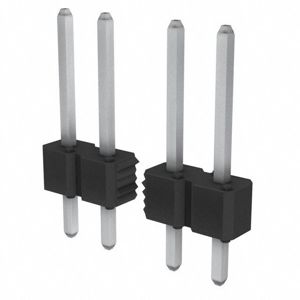

77311-422-19LF
