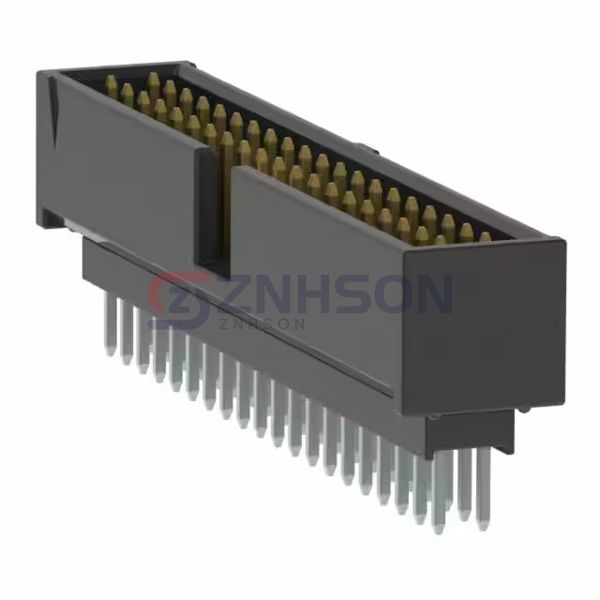

ZSS-120-01-S-D-465
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$10.46
Available to order
Reference Price (USD)
1+
$10.46000
500+
$10.3554
1000+
$10.2508
1500+
$10.1462
2000+
$10.0416
2500+
$9.937
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the ZSS-120-01-S-D-465 rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.165" (4.19mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.465" (11.81mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Phoenix Contact
1714934
Molex
0702871026
Samtec Inc.
TSM-106-01-T-SH-LC-P
Samtec Inc.
TSM-104-04-L-SH-A
TE Connectivity AMP Connectors
794065-1
Molex
0022045152
TE Connectivity AMP Connectors
1-179959-2
Samtec Inc.

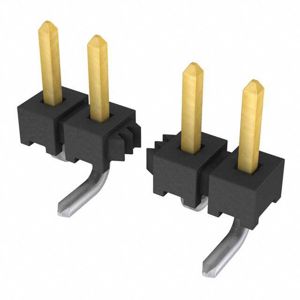

TMM-105-01-S-S-SM-P-TR
Amphenol ICC (FCI)

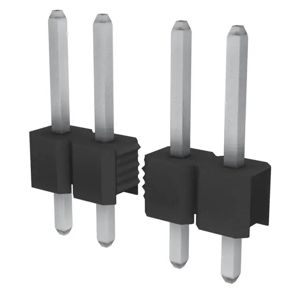

861400071YO15320LF
