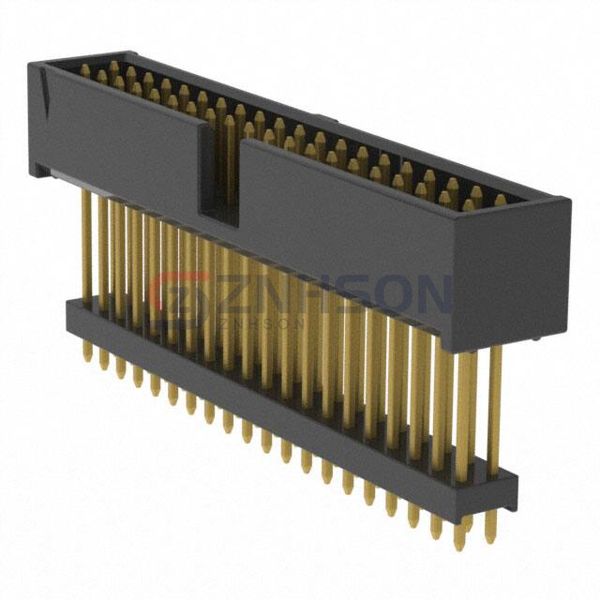

ZSS-120-04-G-D-800
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$9.20
Available to order
Reference Price (USD)
1+
$9.20000
500+
$9.108
1000+
$9.016
1500+
$8.924
2000+
$8.832
2500+
$8.74
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-120-04-G-D-800 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.800" (20.32mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77313-402-28LF
Molex
0348258200
Samtec Inc.
TSW-106-25-L-D-RA-012
Hirose Electric Co Ltd
DF1BZ-4P-2.5DS
TE Connectivity AMP Connectors
6-146276-7
TE Connectivity AMP Connectors
4-1971921-3

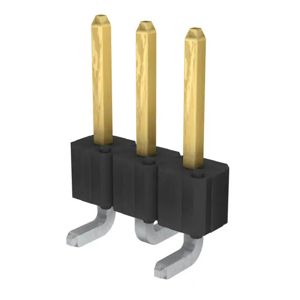

Amphenol ICC (FCI)
54201-S0803ALF

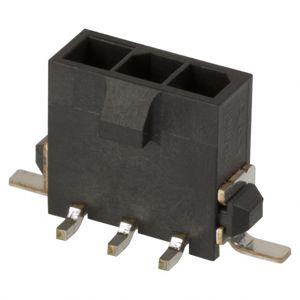

TE Connectivity AMP Connectors
