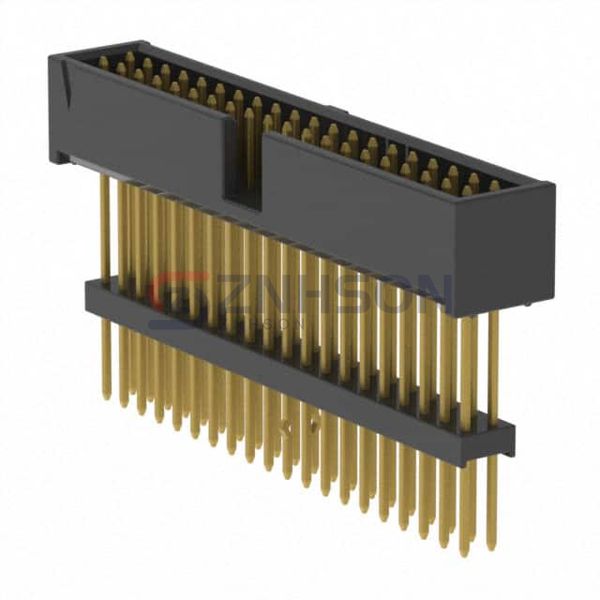

ZSS-120-06-G-D-865-LL
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$10.26
Available to order
Reference Price (USD)
1+
$10.26000
500+
$10.1574
1000+
$10.0548
1500+
$9.9522
2000+
$9.8496
2500+
$9.747
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-120-06-G-D-865-LL male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.265" (6.73mm)
- Overall Contact Length: 1.130" (28.70mm)
- Insulation Height: 0.865" (21.97mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
GBC14SBSN-M89
Samtec Inc.
TSM-105-01-S-DH-LC-K
Samtec Inc.
FTM-110-02-L-DV-P
TE Connectivity AMP Connectors
796137-2
Samtec Inc.

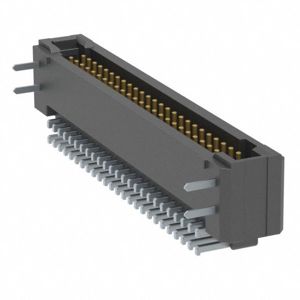

TFM-125-02-L-DH-TR
Mill-Max Manufacturing Corp.

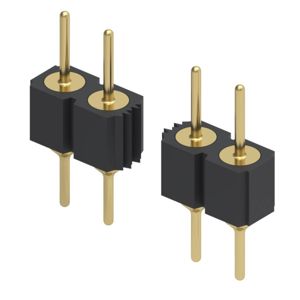

350-10-150-00-006000
Samtec Inc.

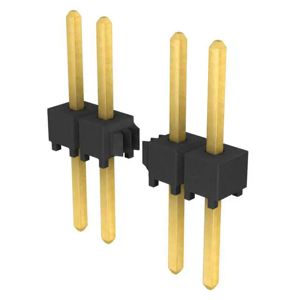

TSW-116-26-G-S
Samtec Inc.

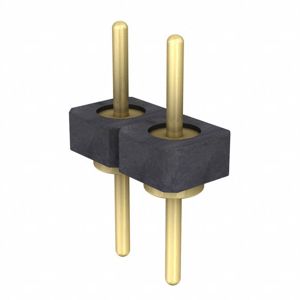

BBL-102-G-E
