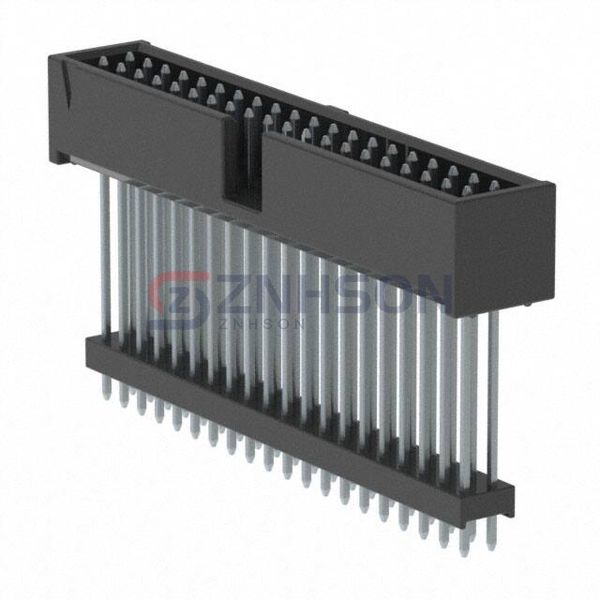

ZSS-120-06-T-D-1030
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$5.96
Available to order
Reference Price (USD)
1+
$5.96000
500+
$5.9004
1000+
$5.8408
1500+
$5.7812
2000+
$5.7216
2500+
$5.662
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the ZSS-120-06-T-D-1030 rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the ZSS-120-06-T-D-1030 is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 1.130" (28.70mm)
- Insulation Height: 1.030" (26.16mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TFM-104-01-L-S-RA
Amphenol ICC (FCI)
86130102114345E1LF
Samtec Inc.
TSM-106-01-S-SH-A-P
Samtec Inc.
FTSH-120-02-L-DH-A
Samtec Inc.
TSM-106-01-L-DH-K-TR
Samtec Inc.
TMM-104-03-F-D
TE Connectivity AMP Connectors
5-146277-3
Würth Elektronik
64901421022
JST Sales America Inc.

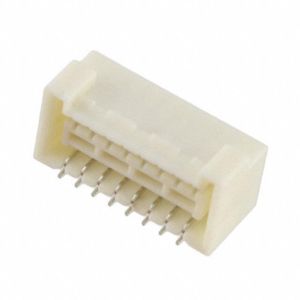

SM16B-ZPDSS-TF(LF)(SN)
