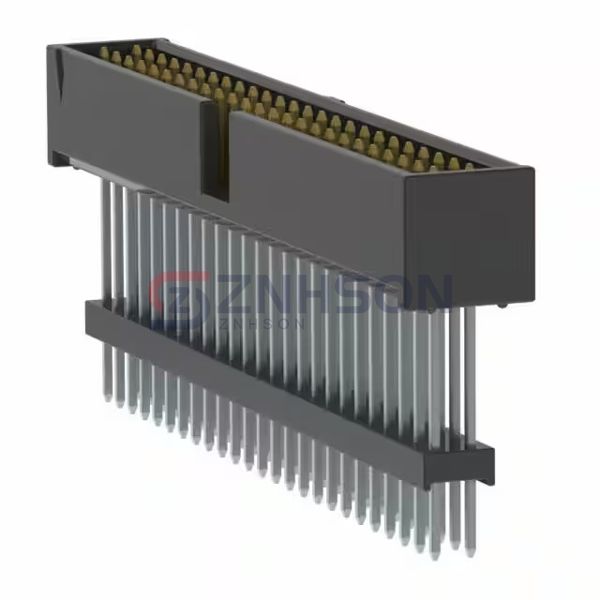

ZSS-125-05-S-D-880
Samtec Inc.
Samtec Inc.
CONN HDR .100" 50POS
$15.32
Available to order
Reference Price (USD)
1+
$15.32000
500+
$15.1668
1000+
$15.0136
1500+
$14.8604
2000+
$14.7072
2500+
$14.554
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the ZSS-125-05-S-D-880 rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the ZSS-125-05-S-D-880 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.880" (22.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Major League Electronics
TSHS-105-D-06-A-T-LF
Amphenol ICC (Commercial Products)
G88MP18102CEU
Molex
0901303340
Samtec Inc.

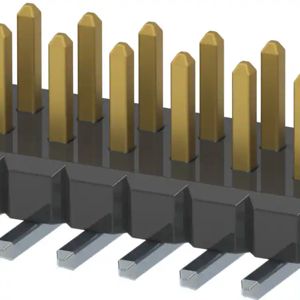

FTM-121-03-F-DV-P
Samtec Inc.

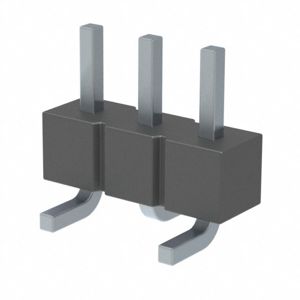

TSM-103-04-TM-SV
Amphenol ICC (FCI)

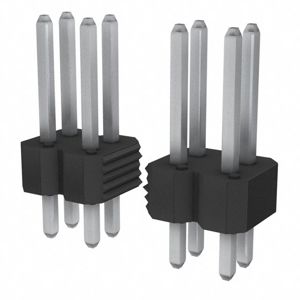

77313-424-32LF
Samtec Inc.

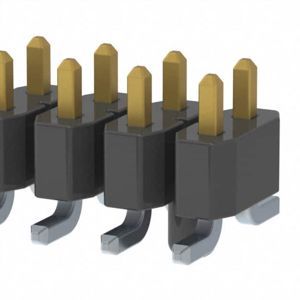

TSM-106-05-L-DV-A
Samtec Inc.

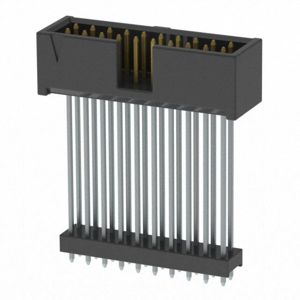

ZSS-110-08-L-D-1228
Samtec Inc.

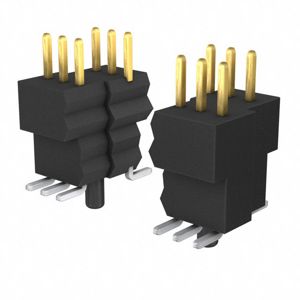

BKT-135-05-L-V-A-P
