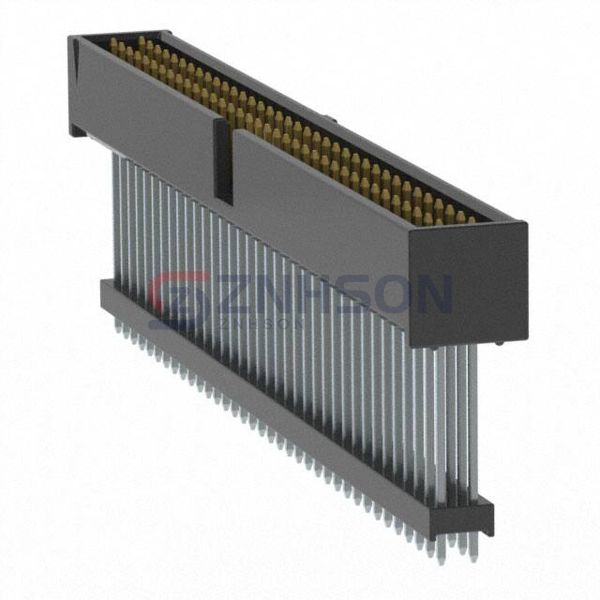

ZSS-136-05-L-D-940
Samtec Inc.
Samtec Inc.
CONN HDR .100" 72POS
$14.97
Available to order
Reference Price (USD)
1+
$14.97000
500+
$14.8203
1000+
$14.6706
1500+
$14.5209
2000+
$14.3712
2500+
$14.2215
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the ZSS-136-05-L-D-940 rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the ZSS-136-05-L-D-940 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 72
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.940" (23.88mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
3M
929834-05-33
Mill-Max Manufacturing Corp.
852-40-020-20-001000
Samtec Inc.
TMM-125-05-G-D-SM-A
Amphenol ICC (FCI)
77311-446-06LF
Samtec Inc.
TMMH-120-01-T-D
Samtec Inc.
TSM-108-03-S-DV-P
Samtec Inc.
ZSS-116-04-G-D-790
Samtec Inc.
TMM-148-01-S-D
Preci-Dip

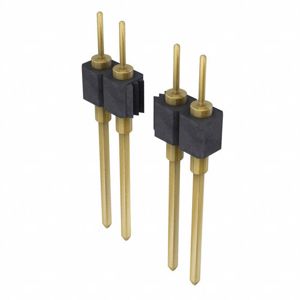

353-10-136-00-001101
