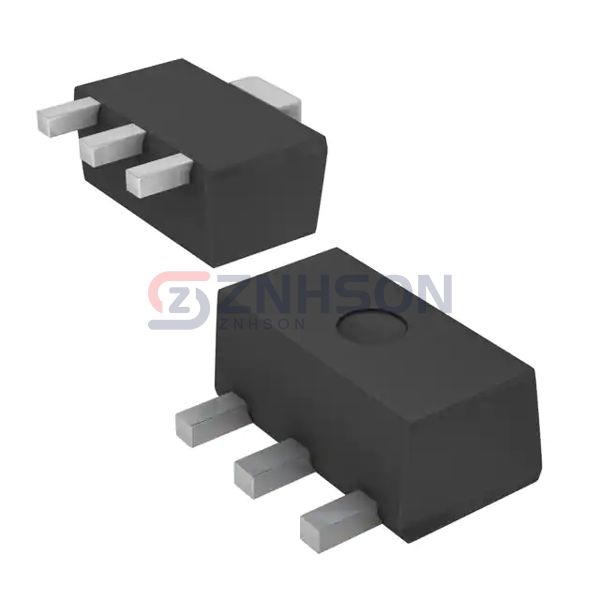

ZXMN3A01ZTA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 2.2A SOT89
$0.51
Available to order
Reference Price (USD)
1,000+
$0.20700
2,000+
$0.19050
5,000+
$0.17950
10,000+
$0.16850
25,000+
$0.16080
50,000+
$0.16000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZXMN3A01ZTA single MOSFET from Diodes Incorporated is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the ZXMN3A01ZTA is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 2.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 186 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 970mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-89-3
- Package / Case: TO-243AA
