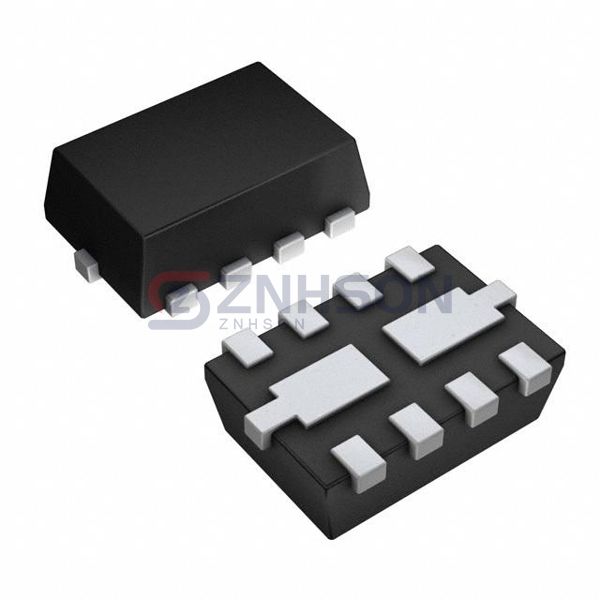

ZXTDA1M832TA
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP 15V/12V 8MLP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the ZXTDA1M832TA BJT Array Diodes Incorporated s flagship solution for Darlington pair configurations. This Discrete Semiconductor Product boasts high current gain (hFE) perfect for solenoid drivers, stepper motor controllers, and industrial PLCs. The ZXTDA1M832TA is extensively used in robotics and power supply units due to its exceptional thermal management. Its lead-free compliance and RoHS certification make it an environmentally responsible choice for global markets.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 4.5A, 4A
- Voltage - Collector Emitter Breakdown (Max): 15V, 12V
- Vce Saturation (Max) @ Ib, Ic: 280mV @ 50mA, 4.5A, 300mV @ 150mA, 4A
- Current - Collector Cutoff (Max): 25nA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 3A, 2V / 180 @ 2.5A, 2V
- Power - Max: 1W
- Frequency - Transition: 120MHz, 110MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-MLP (3x2)
