Backplane Connectors - Contacts
Backplane Connectors - Contacts: Category Overview
1. Definition of Backplane Connectors - Contacts
Backplane Connectors - Contacts are critical components within the broader Connectors, Interconnects category, designed to establish reliable electrical connections in high-density backplane systems. These contacts serve as the conductive interface between backplane connectors and daughter cards, ensuring signal integrity, power delivery, and mechanical stability in demanding applications such as servers, telecommunications equipment, and industrial systems.
2. Types of Backplane Connector Contacts
This category includes several specialized contact types, each tailored for specific performance requirements:
- Press-Fit Contacts: Engineered for secure, solderless mounting into PCB holes, ideal for high-vibration environments.
- Solderable Contacts: Designed for traditional soldering processes, offering robust connections in standard backplane assemblies.
- High-Speed Signal Contacts: Optimized for minimal insertion loss and crosstalk, supporting data rates exceeding 25 Gbps.
- Power Contacts: Built to handle higher current loads, often used in hybrid backplanes combining signal and power transmission.
Materials range from phosphor bronze (for cost-effective solutions) to beryllium copper (for high-cycle durability), with plating options like gold (low resistance) or tin (economical).
3. Purchasing Recommendations
When selecting Backplane Connector Contacts, consider:
- Compatibility: Match contact specifications (pitch, current rating, plating) to your backplane connector model and PCB design.
- Signal Requirements: For high-frequency applications, prioritize contacts with impedance control and shielding features.
- Environmental Factors: Choose corrosion-resistant plating (e.g., gold over nickel) for harsh conditions.
- Compliance Standards: Verify adherence to industry norms (e.g., IEC, MIL-SPEC) for reliability.
Investing in high-quality contacts minimizes insertion loss, reduces maintenance costs, and extends the lifespan of critical interconnect systems. Partner with trusted suppliers to ensure traceability and technical support for complex configurations.
Returned in English as requested.
Filter and sort
Categories

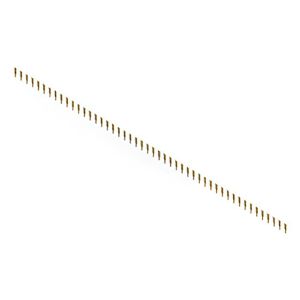

103-048-253-200
103 SERIES CONTACT STRIP WITH 48

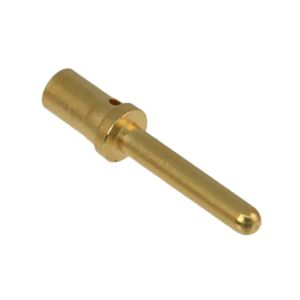

1650153-2
CONTACT PIN POWER 12AWG GOLD

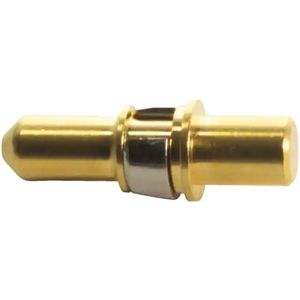

09030006136
DIN-SIGNAL POWER CONT. M, 40A SO

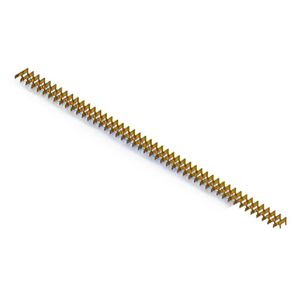

105-047-203-200
105 SERIES CONTACT STRIP WITH 47

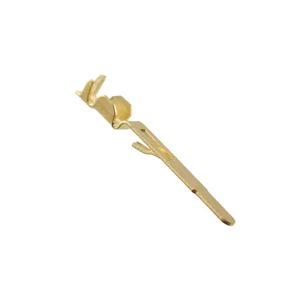

030-2491-001
CONTACT NON-GEND SGNL 20-22AWG

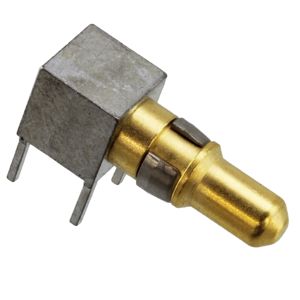

148354-1
CONTACT PIN POWER GOLD

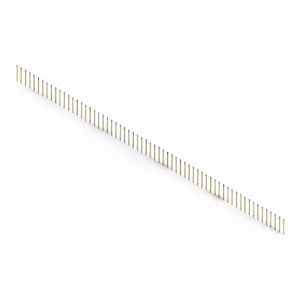

106-063-253-100
106 SERIES CONTACT STRIP WITH 63

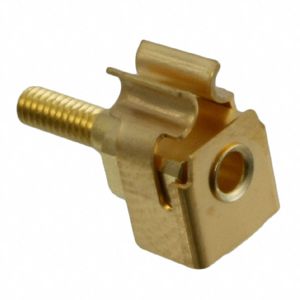

532924-3
CONTACT SOCKET POWER GOLD
105-026-203-200
105 SERIES CONTACT STRIP WITH 26

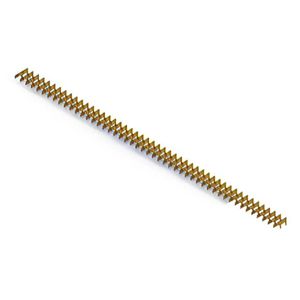

105-048-203-200
105 SERIES CONTACT STRIP WITH 48

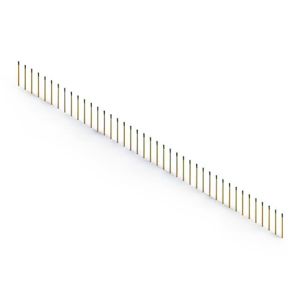

106-041-253-100
106 SERIES CONTACT STRIP WITH 41

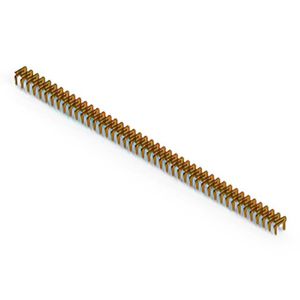

105-044-208-100
105 SERIES CONTACT STRIP WITH 44

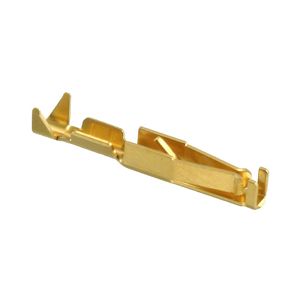

PCN10-2630SC
CONTACT SCKT SGNL 26-30AWG GOLD

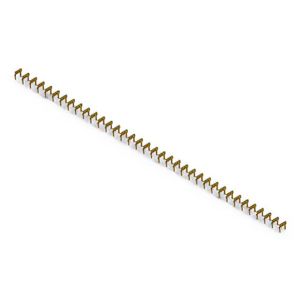

105-036-208-200
105 SERIES CONTACT STRIP WITH 36

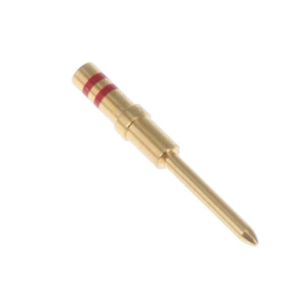

1738011-1
CONTACT PIN 20-24AWG GOLD

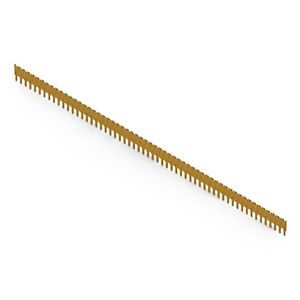

103-058-253-100
103 SERIES CONTACT STRIP WITH 58

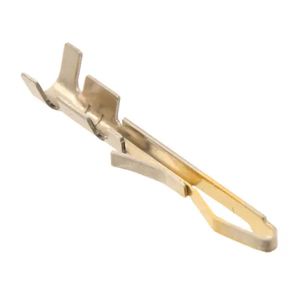

QR/P8-SC-211(12)
CONTACT SOCKET PWR 20-24AWG GOLD

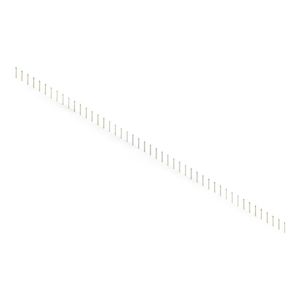

106-047-253-200
106 SERIES CONTACT STRIP WITH 47

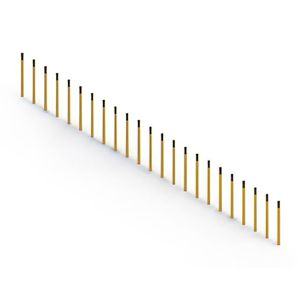

106-023-253-100
106 SERIES CONTACT STRIP WITH 23

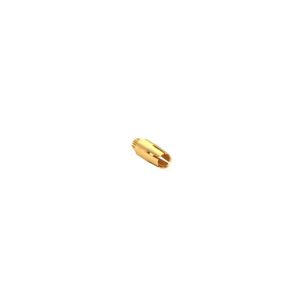

044639
SPCNT HIAMP F 180 40A EP1 FD
