Backplane Connectors - Contacts
Backplane Connectors - Contacts: Category Overview
1. Definition of Backplane Connectors - Contacts
Backplane Connectors - Contacts are critical components within the broader Connectors, Interconnects category, designed to establish reliable electrical connections in high-density backplane systems. These contacts serve as the conductive interface between backplane connectors and daughter cards, ensuring signal integrity, power delivery, and mechanical stability in demanding applications such as servers, telecommunications equipment, and industrial systems.
2. Types of Backplane Connector Contacts
This category includes several specialized contact types, each tailored for specific performance requirements:
- Press-Fit Contacts: Engineered for secure, solderless mounting into PCB holes, ideal for high-vibration environments.
- Solderable Contacts: Designed for traditional soldering processes, offering robust connections in standard backplane assemblies.
- High-Speed Signal Contacts: Optimized for minimal insertion loss and crosstalk, supporting data rates exceeding 25 Gbps.
- Power Contacts: Built to handle higher current loads, often used in hybrid backplanes combining signal and power transmission.
Materials range from phosphor bronze (for cost-effective solutions) to beryllium copper (for high-cycle durability), with plating options like gold (low resistance) or tin (economical).
3. Purchasing Recommendations
When selecting Backplane Connector Contacts, consider:
- Compatibility: Match contact specifications (pitch, current rating, plating) to your backplane connector model and PCB design.
- Signal Requirements: For high-frequency applications, prioritize contacts with impedance control and shielding features.
- Environmental Factors: Choose corrosion-resistant plating (e.g., gold over nickel) for harsh conditions.
- Compliance Standards: Verify adherence to industry norms (e.g., IEC, MIL-SPEC) for reliability.
Investing in high-quality contacts minimizes insertion loss, reduces maintenance costs, and extends the lifespan of critical interconnect systems. Partner with trusted suppliers to ensure traceability and technical support for complex configurations.
Returned in English as requested.
Filter and sort
Categories

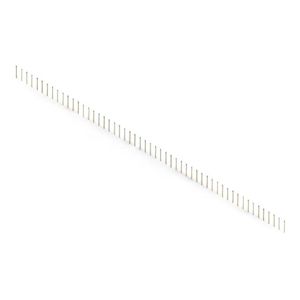

106-053-250-200
106 SERIES CONTACT STRIP WITH 53

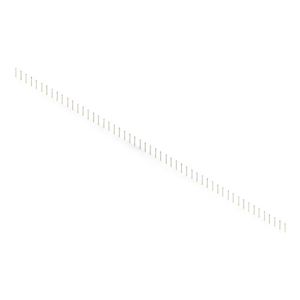

106-053-253-200
106 SERIES CONTACT STRIP WITH 53

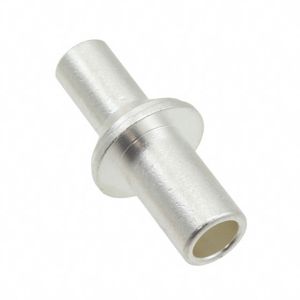

1766190-1
CONTACT PIN SIGNAL 6AWG SILVER

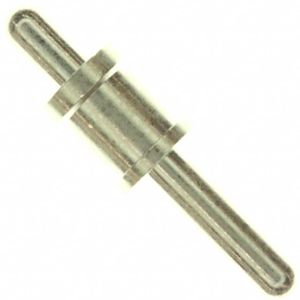

1766262-1
CONTACT PIN POWER SILVER

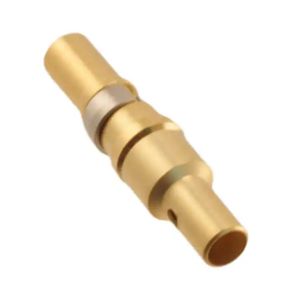

09030006260
CONTACT SOCKET COAXIAL

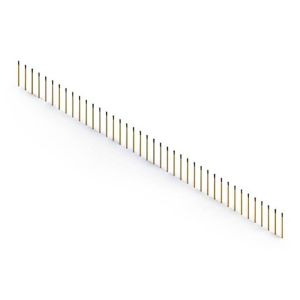

106-040-253-100
106 SERIES CONTACT STRIP WITH 40

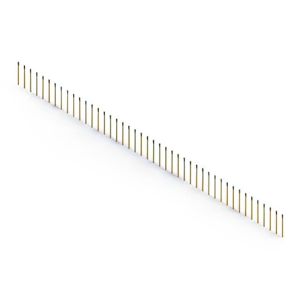

106-044-253-100
106 SERIES CONTACT STRIP WITH 44

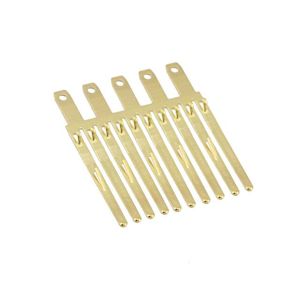

030-7380-005
CONTACT NON-GEND SGNL 18-30AWG

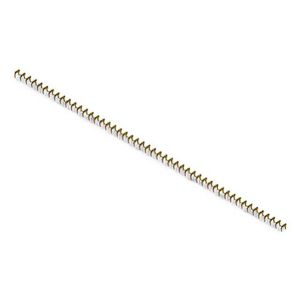

105-048-208-200
105 SERIES CONTACT STRIP WITH 48

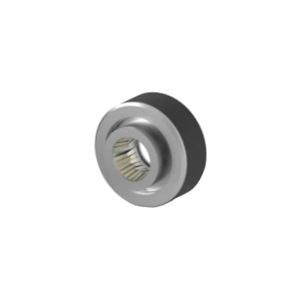

2361483-1
ICCON INSERT SIZE 8.0MM SOCKET F

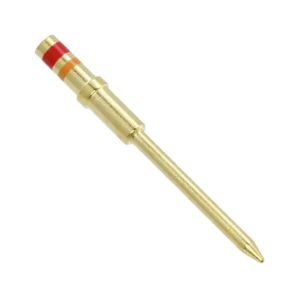

208265-3
CONTACT PIN SIGNAL 20-24AWG GOLD

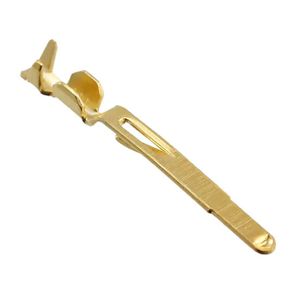

030-2409-003
CONTACT NON-GEND SGNL 20-22AWG

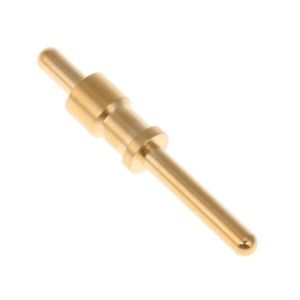

1650060-2
CONTACT PIN POWER GOLD

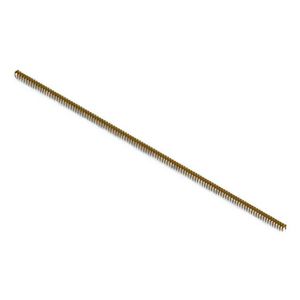

105-115-208-100
105 SERIES CONTACT STRIP WITH 11

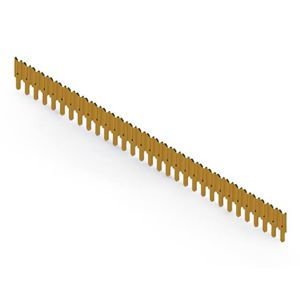

103-031-253-100
103 SERIES CONTACT STRIP WITH 31

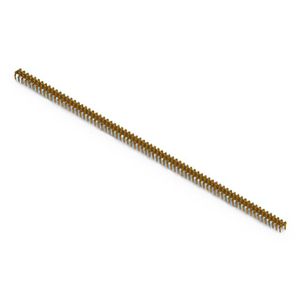

105-074-208-100
105 SERIES CONTACT STRIP WITH 74

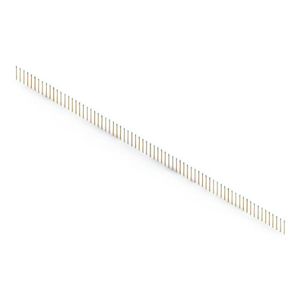

106-073-253-100
106 SERIES CONTACT STRIP WITH 73

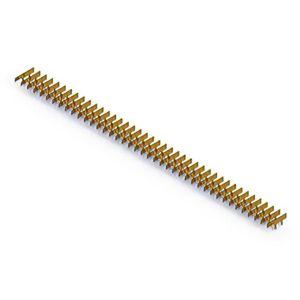

105-041-202-200
105 SERIES CONTACT STRIP WITH 41
106-002-251-200
106 SERIES CONTACT STRIP WITH 2

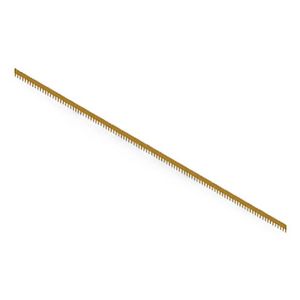

103-108-253-100
103 SERIES CONTACT STRIP WITH 10
