Backplane Connectors - Contacts
Backplane Connectors - Contacts: Category Overview
1. Definition of Backplane Connectors - Contacts
Backplane Connectors - Contacts are critical components within the broader Connectors, Interconnects category, designed to establish reliable electrical connections in high-density backplane systems. These contacts serve as the conductive interface between backplane connectors and daughter cards, ensuring signal integrity, power delivery, and mechanical stability in demanding applications such as servers, telecommunications equipment, and industrial systems.
2. Types of Backplane Connector Contacts
This category includes several specialized contact types, each tailored for specific performance requirements:
- Press-Fit Contacts: Engineered for secure, solderless mounting into PCB holes, ideal for high-vibration environments.
- Solderable Contacts: Designed for traditional soldering processes, offering robust connections in standard backplane assemblies.
- High-Speed Signal Contacts: Optimized for minimal insertion loss and crosstalk, supporting data rates exceeding 25 Gbps.
- Power Contacts: Built to handle higher current loads, often used in hybrid backplanes combining signal and power transmission.
Materials range from phosphor bronze (for cost-effective solutions) to beryllium copper (for high-cycle durability), with plating options like gold (low resistance) or tin (economical).
3. Purchasing Recommendations
When selecting Backplane Connector Contacts, consider:
- Compatibility: Match contact specifications (pitch, current rating, plating) to your backplane connector model and PCB design.
- Signal Requirements: For high-frequency applications, prioritize contacts with impedance control and shielding features.
- Environmental Factors: Choose corrosion-resistant plating (e.g., gold over nickel) for harsh conditions.
- Compliance Standards: Verify adherence to industry norms (e.g., IEC, MIL-SPEC) for reliability.
Investing in high-quality contacts minimizes insertion loss, reduces maintenance costs, and extends the lifespan of critical interconnect systems. Partner with trusted suppliers to ensure traceability and technical support for complex configurations.
Returned in English as requested.
Filter and sort
Categories

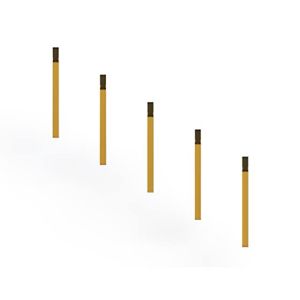

106-005-253-200
106 SERIES CONTACT STRIP WITH 5

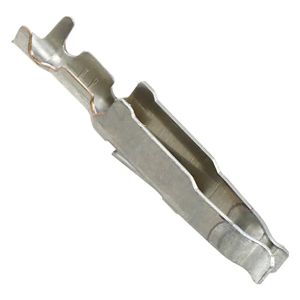

09060006454
CONTACT SOCKET SIGNAL 28-34AWG

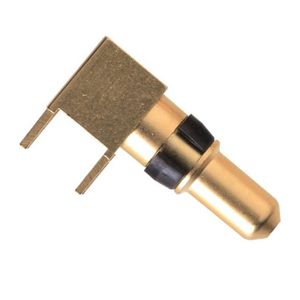

09030008104
MALE 40AMP CONTACT (DIN 41626),

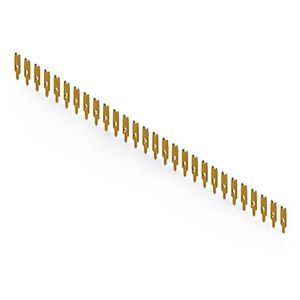

103-028-251-200
103 SERIES CONTACT STRIP WITH 28

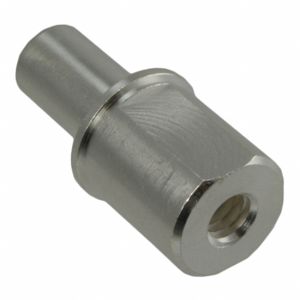

1766269-1
CONTACT PIN POWER SILVER

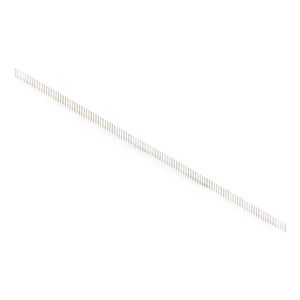

106-115-253-100
106 SERIES CONTACT STRIP WITH 11

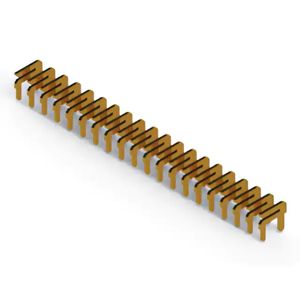

105-020-208-100
105 SERIES CONTACT STRIP WITH 20

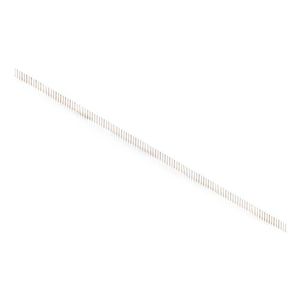

106-120-253-100
106 SERIES CONTACT STRIP WITH 12

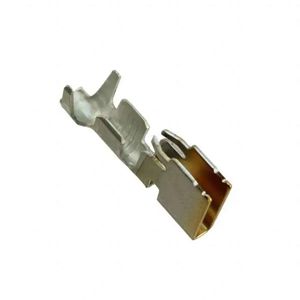

1-1600961-8
CONTACT BLADE SCKT PWR 12-16AWG

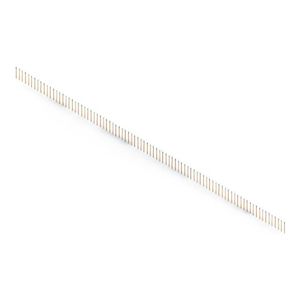

106-087-253-100
106 SERIES CONTACT STRIP WITH 87

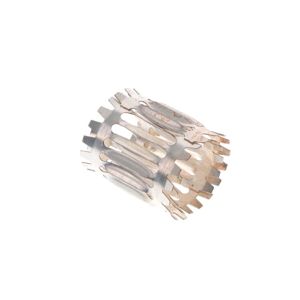

5-192013-9
CONTACT FEMALE BAND SILVER

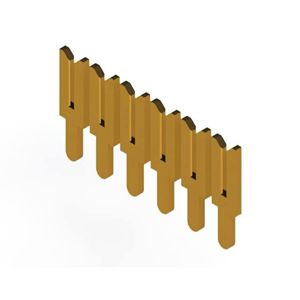

103-006-253-100
103 SERIES CONTACT STRIP WITH 6

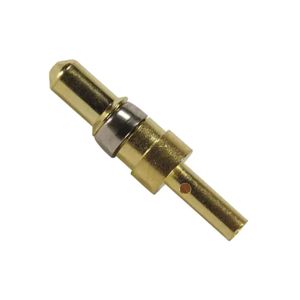

09030006113
CONTACT PIN POWER 12AWG
106-028-250-200
106 SERIES CONTACT STRIP WITH 28

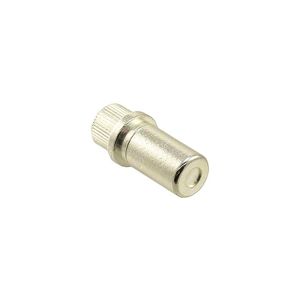

1857523-3
CONTACT PIN POWER

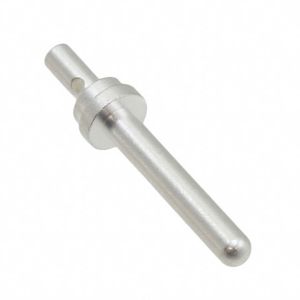

1766188-1
CONTACT PIN PWR 12-14AWG SILVER

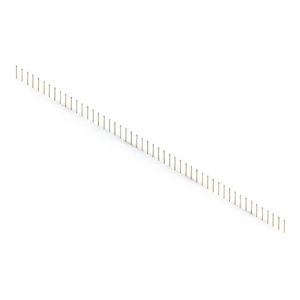

106-050-250-200
106 SERIES CONTACT STRIP WITH 50
516-290-542
CONTACT NON-GEND SGNL 18-28AWG

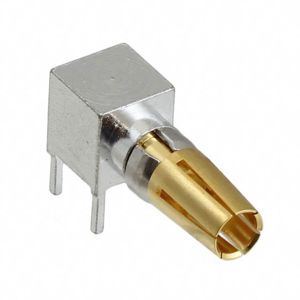

148513-1
CONTACT SOCKET POWER GOLD

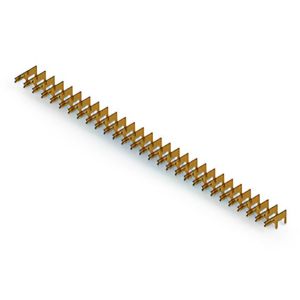

105-029-203-200
105 SERIES CONTACT STRIP WITH 29
