Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories

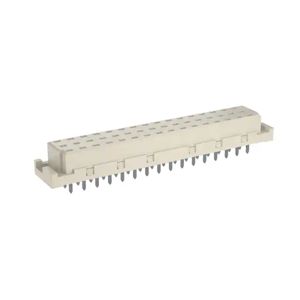

354660
DIN E 48POS F SLDR 4.5MM CL2

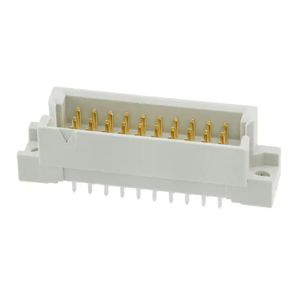

09291306902
CONN DIN HDR 30POS PCB GOLD

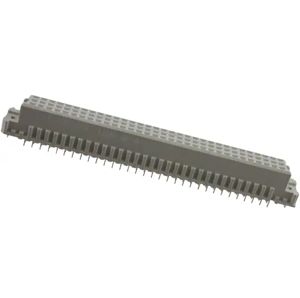

5650963-5
CONN DIN RCPT 96POS PCB GOLD

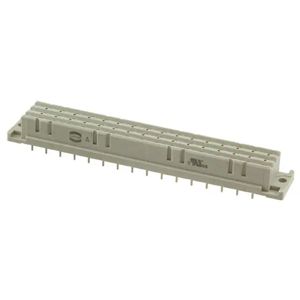

09062487833
CONN DIN RCPT 48POS PCB GOLD

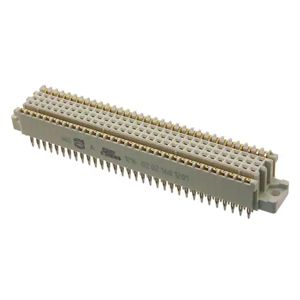

02021601201
CONN DIN RCPT 160POS PCB

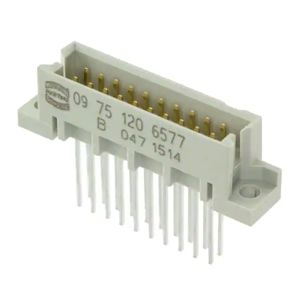

09751206577
CONN DIN HDR 20POS PCB GOLD

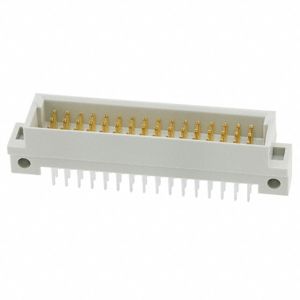

09231487922
CONN DIN HDR 48POS PCB GOLD

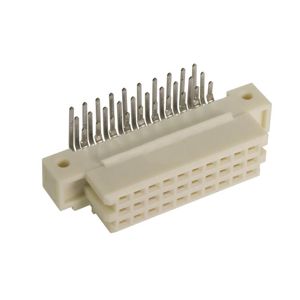

09292306801
DIN 3R FEMALE ANGLED 30PIN PL2

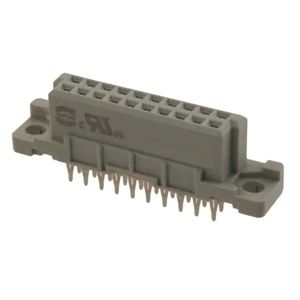

09242206850
CONN DIN RCPT 20POS PCB GOLD

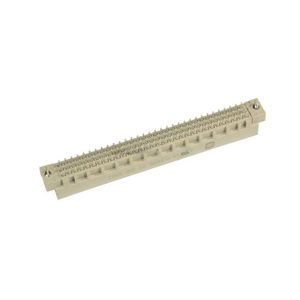

09733966902
CONN DIN HDR 96POS PCB GOLD

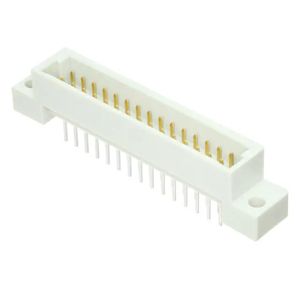

XC5E-1081-3
CONN DIN PLUG 10POS PCB GOLD

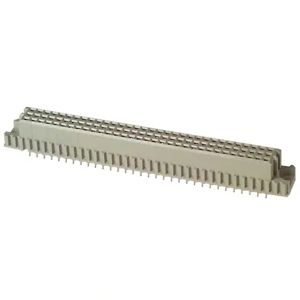

5535090-5
CONN DIN RCPT 96POS PCB GOLD
09034967825
CONN DIN RCPT 96POS PCB GOLD

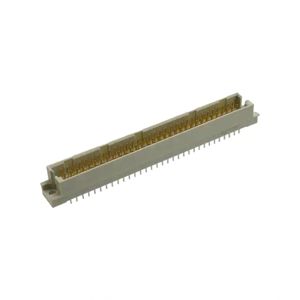

PCN10-96P-2.54DSA(81)
CONN DIN HDR 96POS PCB GOLD

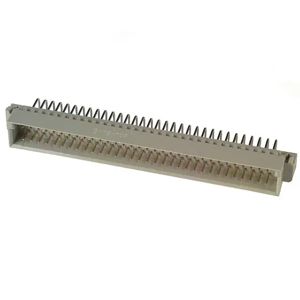

5650945-5
CONN DIN PLUG 96POS PCB RA GOLD

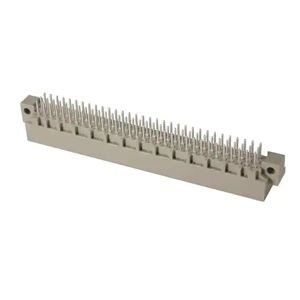

09031647922
CONN DIN HDR 96POS PCB GOLD
1-650909-4
CONN DIN PLUG 96POS PCB GOLD

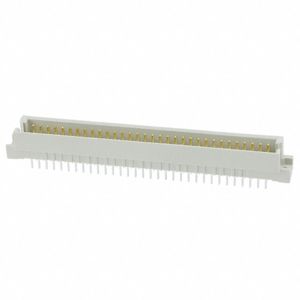

09731642903
CONN DIN HDR 96POS PCB GOLD

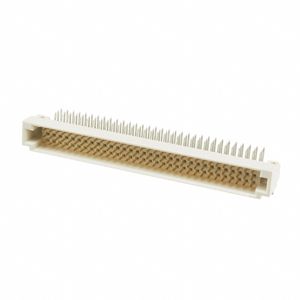

5148003-5
CONN DIN PLUG 96POS PCB RA GOLD

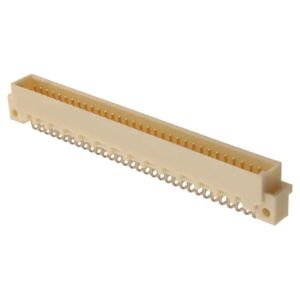

09021647919
CONN DIN HDR 64POS PCB RA
