Backplane Connectors - Housings: Category Introduction

Definition of Backplane Connectors - Housings

Backplane Connectors - Housings are critical components in high-speed electronic systems, designed to provide secure and reliable interconnections between printed circuit boards (PCBs) in backplane applications. These housings serve as the structural framework that holds and aligns the connector contacts, ensuring proper signal integrity, mechanical stability, and protection against environmental factors. They are widely used in telecommunications, data centers, industrial equipment, and high-performance computing systems where robust and high-density connections are essential.

Types of Backplane Connector Housings

Standard Housings Designed for general-purpose backplane applications, offering a balance of durability and cost-efficiency.
High-Speed Housings Optimized for signal integrity in high-frequency applications, featuring advanced shielding and impedance control.
Modular Housings Allow flexible configurations to support varying PCB layouts and system designs.
Ruggedized Housings Built for harsh environments with enhanced resistance to vibration, shock, and extreme temperatures.
Custom Housings Engineered to meet specific mechanical or electrical requirements for specialized applications.

Purchasing Recommendations

When selecting Backplane Connector Housings, consider the following factors:
- Compatibility Ensure the housing matches the connector type (e.g., press-fit, solder-on) and PCB specifications.
- Signal Requirements For high-speed data transmission, choose housings with low crosstalk and EMI shielding.
- Durability Assess environmental conditions (temperature, humidity, vibration) to select appropriate material (e.g., high-temperature plastics, metal reinforcements).
- Supplier Reliability Source from trusted manufacturers to guarantee quality, compliance (e.g., UL, RoHS), and long-term availability.

By choosing the right housing for your backplane connectors, you can enhance system performance, reduce maintenance costs, and ensure long-term reliability in demanding applications.

516 SERIES RACK & PANEL CONNECTO

Shopping cart

Backplane Connectors - Housings

Definition of Backplane Connectors - Housings

Types of Backplane Connector Housings

Purchasing Recommendations

Filter and sort

Categories

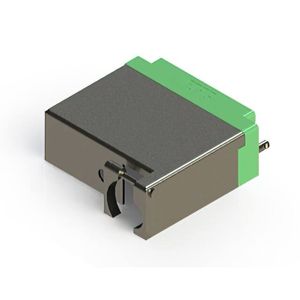

516-090-541-162

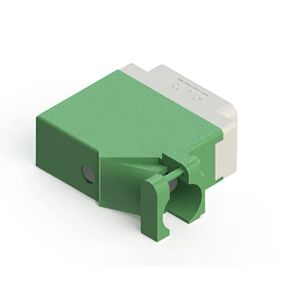

516-038-500-346

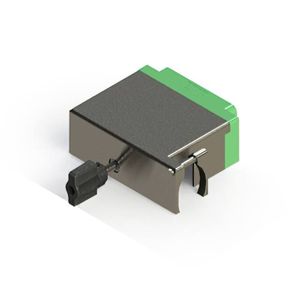

516-120-520-155

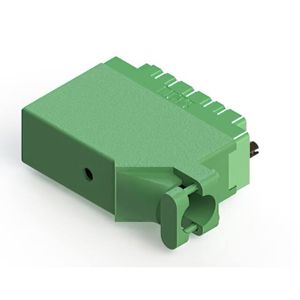

516-056-542-222

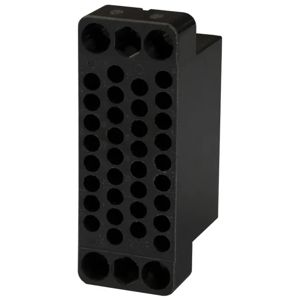

200838-2

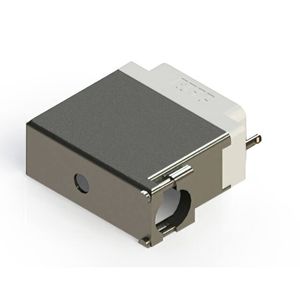

516-038-520-352

516-038-542-640

516-056-500-406

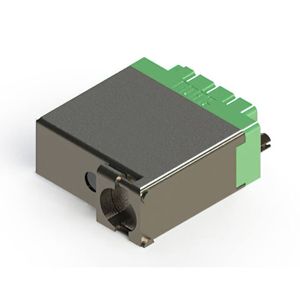

516-038-000-262

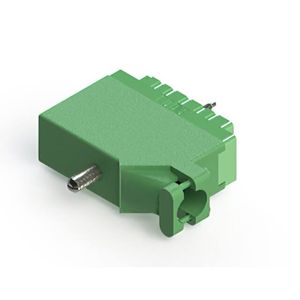

516-056-542-625

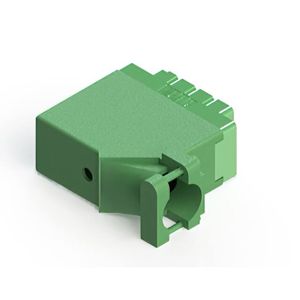

516-038-541-640

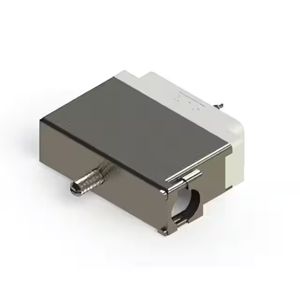

516-056-540-355

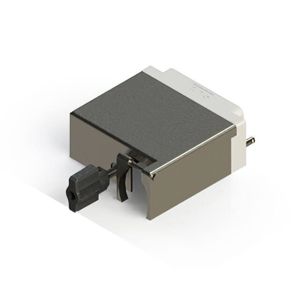

516-120-542-361

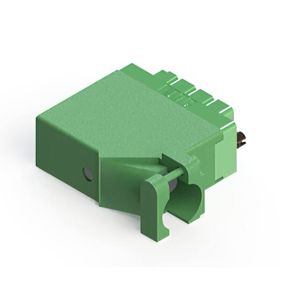

516-038-000-242

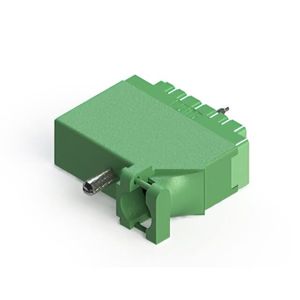

516-056-540-235

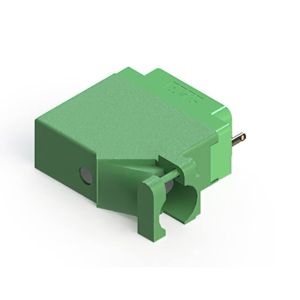

516-038-541-542

519-036-000-431

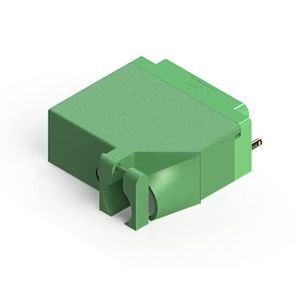

516-120-541-112

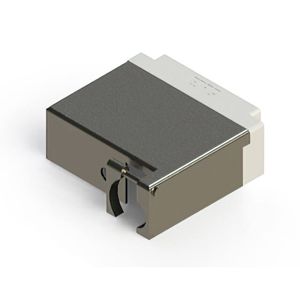

516-090-520-360

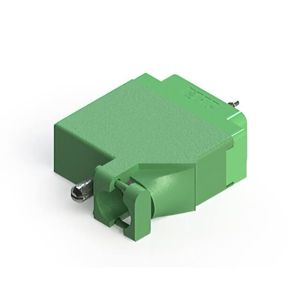

516-038-520-115
