Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
CT2142-2
PLUG BANANA 2MM DIY STACK RED
CT2910-2
CONN BANANA JACK QC RED
3271
CONN BANANA PLUG MINIATURE RIVET
1825-5
CONN BANANA PLUG STACK SLDRLESS
108-0901-001
CONN BANANA JACK SLDR TABS WHITE

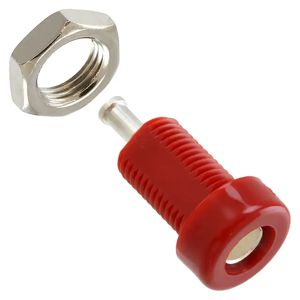

108-2302-621
CONN BANANA JACK TURRET RED

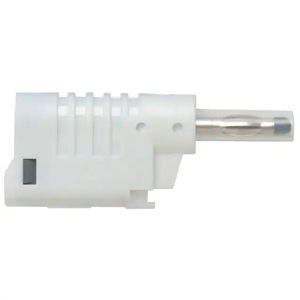

73093-9
CONN BANANA PLUG STACK SLDRLESS

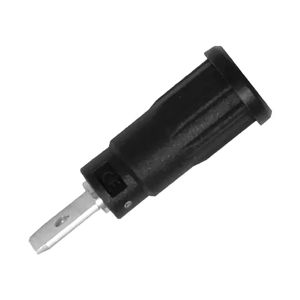

CT3078-0
JACK PNL SAFET 2MM QC PUSHIN BLK

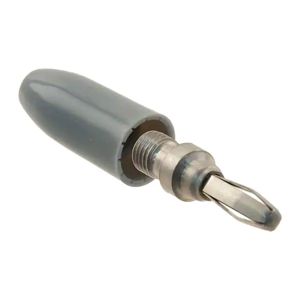

108-0313-001
CONN BANANA PLUG SOLDERLESS GRAY

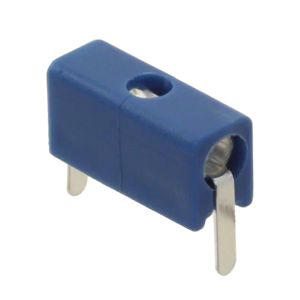

105-0760-001
CONN TIP JACK SOLDER BLUE

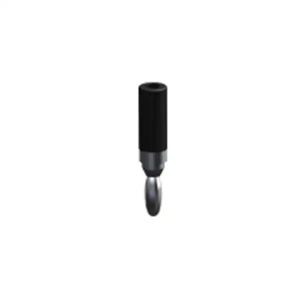

6077
CONN BANANA PLUG MINI SLDR BLACK

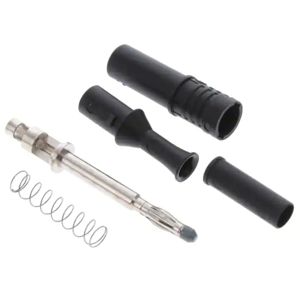

CT3201-S-0
CONN BANANA PLUG SOLDER BLACK

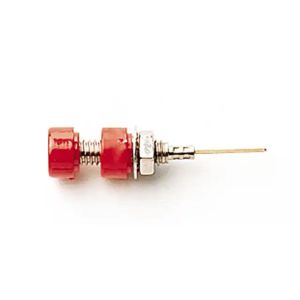

4022-2
CONN BANANA JCK MINI WW RED 10PC

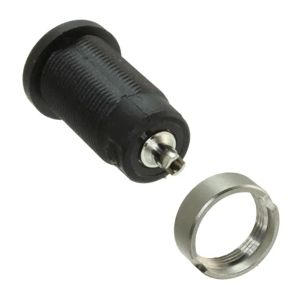

CT2242-0
CONN BANANA JACK SLDR CUP BLACK

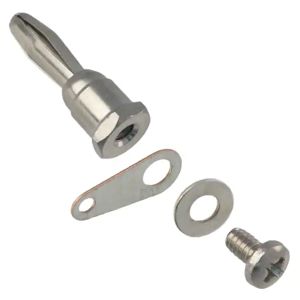

108-0753-001
CONN BANANA PLUG THRD

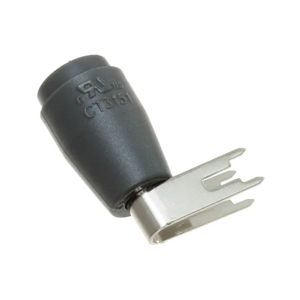

CT3151-8
CONN BANANA JACK SOLDER GRAY

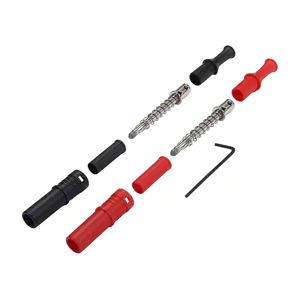

CT3202W
CONN BANANA PLUG SOLDERLESS

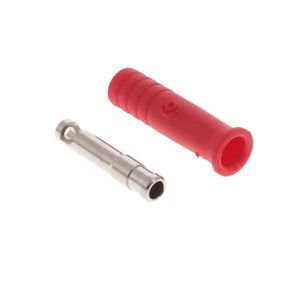

CT3095-2
JACK SOLDER DIY 2MM UNASSEM RED
108-1723-103
CONN BANANA PLUG SLDR/SLDRLESS

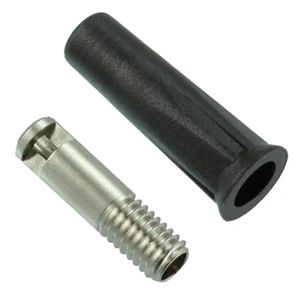

CT2213-0
CONN BANANA JACK SOLDER BLACK
