Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

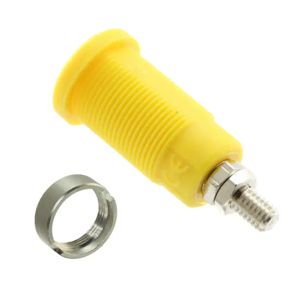

CT2236-4
CONN BANANA JACK THRD YELLOW

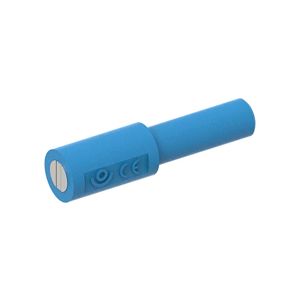

CT3879-6
9MM MAG CONN SHD BANANA JACK BLU

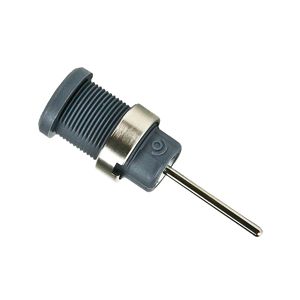

CT2906-8
CONN BANANA JACK SOLDER GRAY

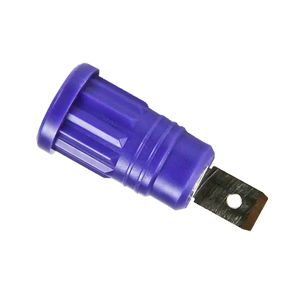

CT2911-7
CONN BANANA JACK QC PURPLE

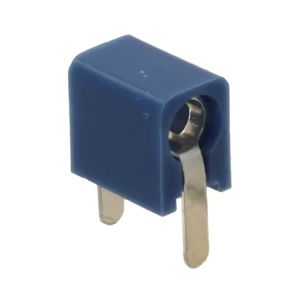

105-1110-001
CONN TIP JACK SOLDER BLUE

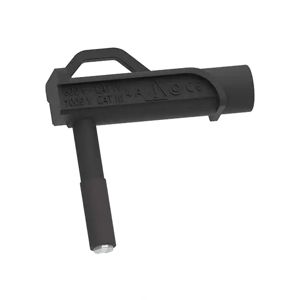

CT3881-0
6.6MM MAG CONN RA BANA JACK BLK

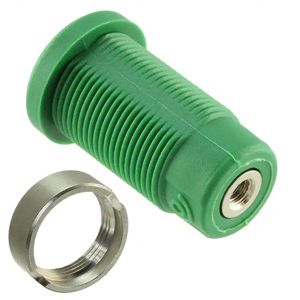

CT2908-5
CONN BANANA JACK THRD GREEN

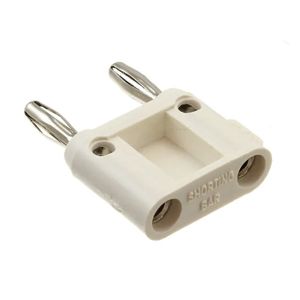

MDP-S-9
CONN DBL BAN PLUG STACK SLDRLESS

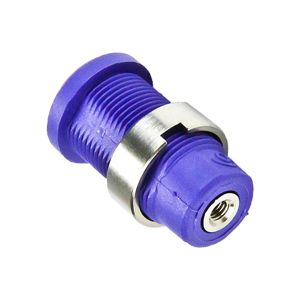

CT2908-7
CONN BANANA JACK THRD PURPLE

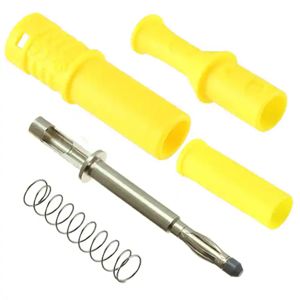

CT3201-S-4
CONN BANANA PLUG SOLDER YELLOW

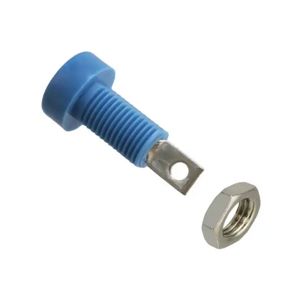

108-0910-001
CONN BANANA JACK SLDR TABS BLUE

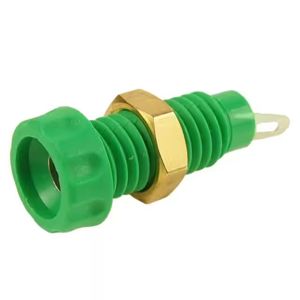

CL1460
4MM PANEL SKT S14 GREEN + NUT

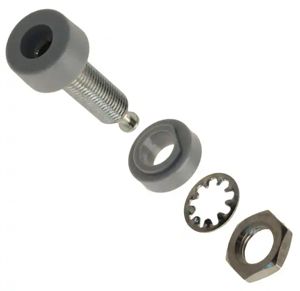

1581-8
CONN BANANA JACK TURRET GRAY

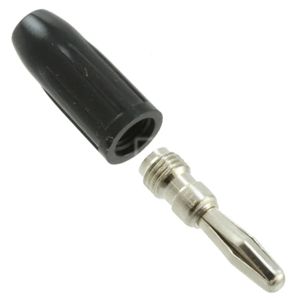

BU-00246-0
CONN BANANA PLUG SLDRLESS BLACK

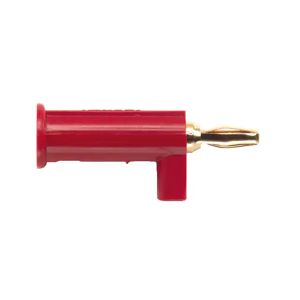

2945-2
CONN BAN PLG STACK MINI SLDRLESS

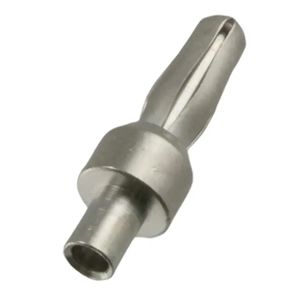

552-3
CONN BANANA PLUG RIVET

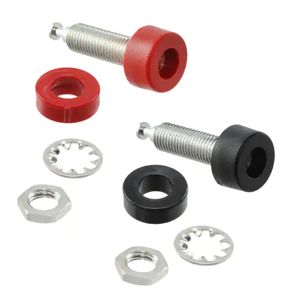

1581-02
CONN BANANA JACK TURRET

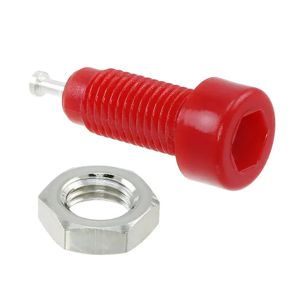

6031
CONN TIP JACK TURRET RED

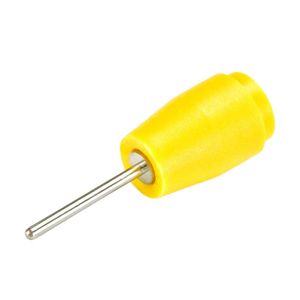

CT3150-4
CONN BANANA JACK SOLDER YELLOW

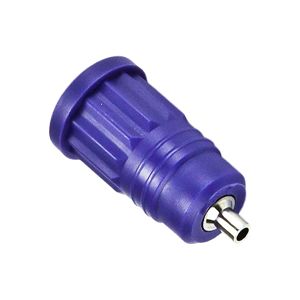

CT2244-7
CONN BANANA JACK SOLDER VIOLET
