Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

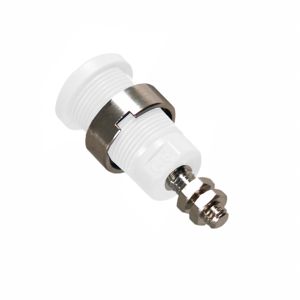

CT2236-9
CONN BANANA JACK THRD WHITE

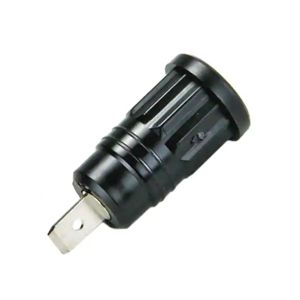

CT2915-0
CONN BANANA JACK QC BLACK

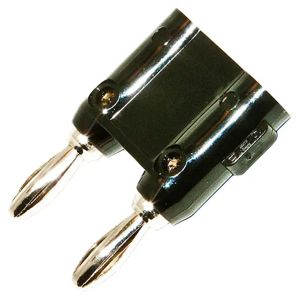

BU-P1330-0
CONN DBL BAN PLUG STACK SLDRLESS

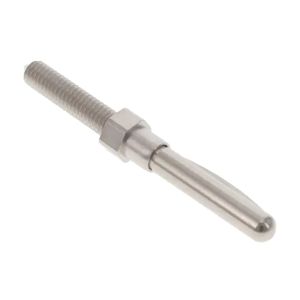

R941069000
BANANA / 4MM SERIE MALE B4-18ISO

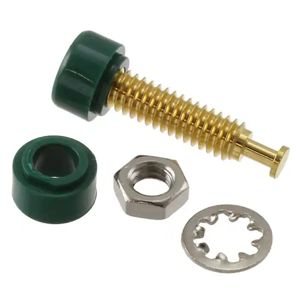

2142-5
CONN BANANA JACK MINI TURRET GRN

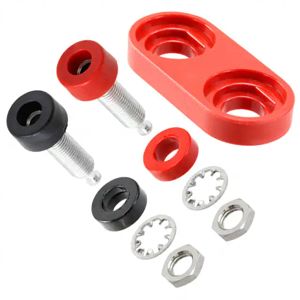

2269-2
CONN DBL BANANA JACK TURRET

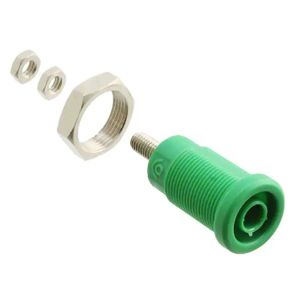

72930-5
CONN BANANA JACK THRD GREEN

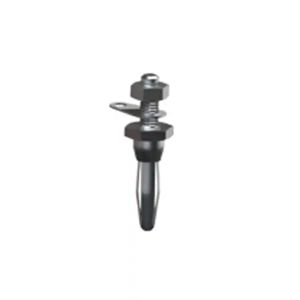

6074-2
CONN BANANA PLUG THRD

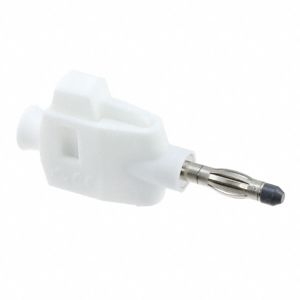

CT3249-9
CONN BANANA PLUG SLDRLESS WHITE

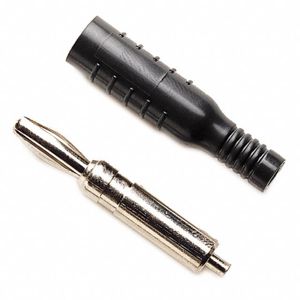

5170-0
CONN BANANA PLUG BLACK

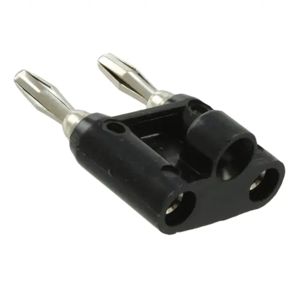

BU-00247-0
CONN DBL BAN PLUG STACK SLDRLESS

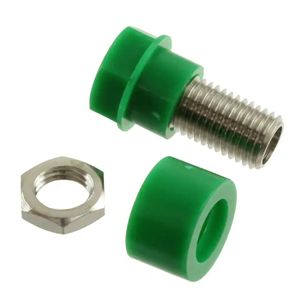

CT2230-5
CONN BANANA JACK THREADED GREEN
105-0757-150
CONN TIP JACK SOLDER YELLOW

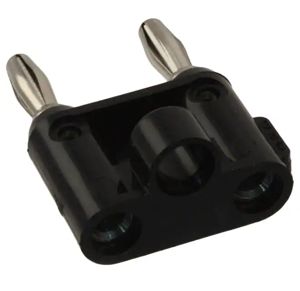

MDP-0
CONN DBL BAN PLUG STACK SLDRLESS

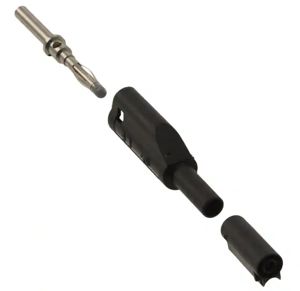

72925-0
CONN BANANA PLUG STACK MIN BLK

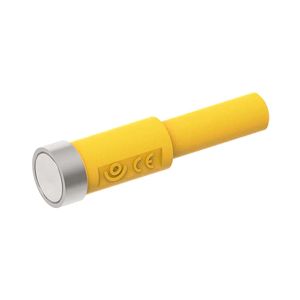

CT3880-4
10MM MAG CONN SH BANANA JACK YLW

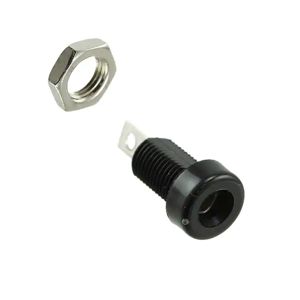

6092
CONN BANANA JACK SLDR TABS BLACK

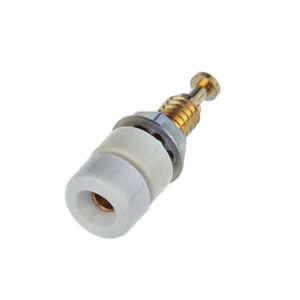

2142-9
CONN BANANA JACK MINI TURRET WHT

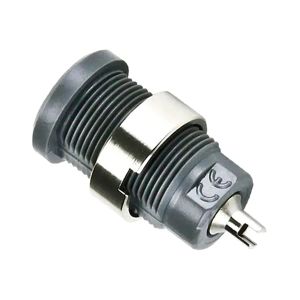

CT2242-8
CONN BANANA JACK SOLDER CUP GRAY

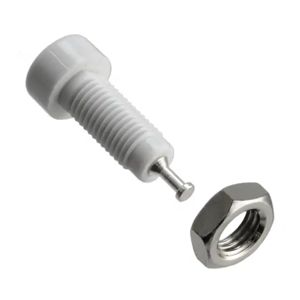

6030
CONN TIP JACK TURRET WHITE
