Card Edge Connectors - Edgeboard Connectors
Card Edge Connectors - Edgeboard Connectors: Reliable Interconnect Solutions for PCB Applications
Definition:
Card Edge Connectors, also known as Edgeboard Connectors, are specialized interconnects designed to provide secure and efficient electrical connections between printed circuit boards (PCBs) and other components. These connectors feature a series of contacts that mate directly with the exposed conductive edges of a PCB, eliminating the need for additional wiring or soldering. Commonly used in high-density applications, they ensure reliable signal transmission and mechanical stability in demanding environments.
Types of Card Edge Connectors:
1. Standard Card Edge Connectors: Ideal for general-purpose PCB connections, offering varying pin counts and pitch sizes.
2. High-Speed Edge Connectors: Optimized for high-frequency signal integrity, often used in telecommunications and computing.
3. Dual-Row Edge Connectors: Provide enhanced contact density for complex PCB designs.
4. Right-Angle Edge Connectors: Enable space-saving vertical or horizontal PCB configurations.
5. Customizable Edgeboard Connectors: Tailored to specific mechanical or electrical requirements, including ruggedized designs for industrial use.
Purchasing Recommendations:
- Compatibility: Verify the connector s pitch, thickness, and pin count to match your PCB specifications.
- Durability: For harsh environments, select connectors with robust materials (e.g., high-temperature plastics, gold-plated contacts).
- Signal Requirements: Choose high-speed variants for applications demanding low crosstalk and impedance control.
- Vendor Reliability: Source from manufacturers with proven quality standards (e.g., UL certification) to ensure long-term performance.
Card Edge Connectors are indispensable in modern electronics, offering a balance of simplicity and precision for seamless PCB integration. Invest in the right type to enhance your system s reliability and efficiency.
Filter and sort
Categories
895-035-520-602
895 SERIES (.100" (2.54MM) CONTA
337-028-556-812
337 SERIES (.156" (3.96MM) CONTA
395-008-542-404
395 SERIES (.100" (2.54MM) CONTA

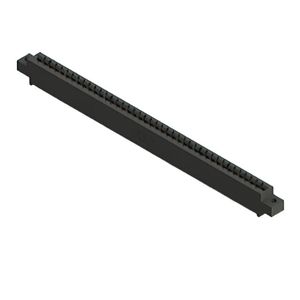

887-040-544-604
887 SERIES (.156" (3.96MM) CONTA
337-023-523-102
337 SERIES (.156" (3.96MM) CONTA
887-026-521-204
887 SERIES (.156" (3.96MM) CONTA
833-041-523-101
833 HIGH TEMP' SERIES (.156" (3.
395-032-560-507
395 SERIES (.100" (2.54MM) CONTA

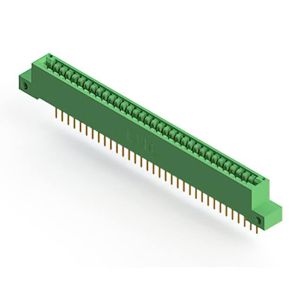

346-034-522-112
