Card Edge Connectors - Edgeboard Connectors: Reliable Interconnect Solutions for PCB Applications
Definition:
Card Edge Connectors, also known as Edgeboard Connectors, are specialized interconnects designed to provide secure and efficient electrical connections between printed circuit boards (PCBs) and other components. These connectors feature a series of contacts that mate directly with the exposed conductive edges of a PCB, eliminating the need for additional wiring or soldering. Commonly used in high-density applications, they ensure reliable signal transmission and mechanical stability in demanding environments.
Types of Card Edge Connectors:
1. Standard Card Edge Connectors: Ideal for general-purpose PCB connections, offering varying pin counts and pitch sizes.
2. High-Speed Edge Connectors: Optimized for high-frequency signal integrity, often used in telecommunications and computing.
3. Dual-Row Edge Connectors: Provide enhanced contact density for complex PCB designs.
4. Right-Angle Edge Connectors: Enable space-saving vertical or horizontal PCB configurations.
5. Customizable Edgeboard Connectors: Tailored to specific mechanical or electrical requirements, including ruggedized designs for industrial use.
Purchasing Recommendations:
- Compatibility: Verify the connector s pitch, thickness, and pin count to match your PCB specifications.
- Durability: For harsh environments, select connectors with robust materials (e.g., high-temperature plastics, gold-plated contacts).
- Signal Requirements: Choose high-speed variants for applications demanding low crosstalk and impedance control.
- Vendor Reliability: Source from manufacturers with proven quality standards (e.g., UL certification) to ensure long-term performance.
Card Edge Connectors are indispensable in modern electronics, offering a balance of simplicity and precision for seamless PCB integration. Invest in the right type to enhance your system s reliability and efficiency.
Filter and sort
Categories

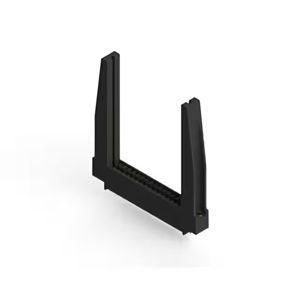

396-017-520-678
396 SERIES (.125" (3.18MM) CONTA

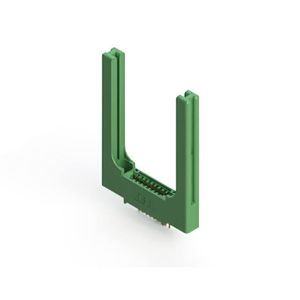

345-009-523-458
345 SERIES (.100" (2.54MM) CONTA

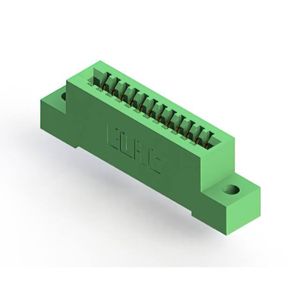

342-012-524-102
CONN EDGE SINGLE FML 12POS 0.100

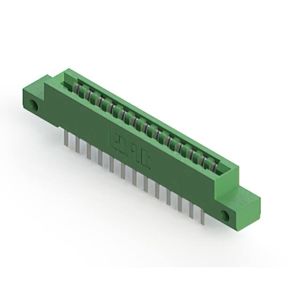

307-026-458-212
307 SERIES (.156" (3.96MM) CONTA

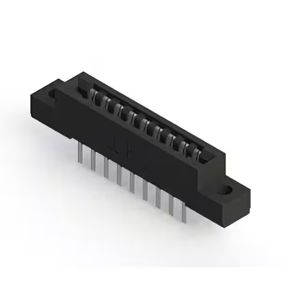

857-018-458-202
857 HIGH TEMP' SERIES (.156" (3.

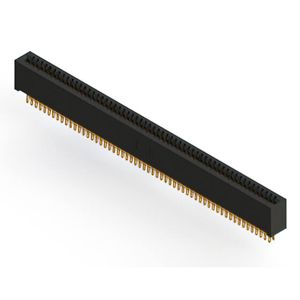

392-114-555-201
CONN EDGE DUAL FML 114POS 0.100
892-034-524-108
892 SERIES (.100" (2.54MM) CONTA

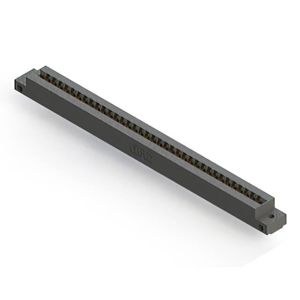

356-035-521-112
356 SERIES (.156" (3.96MM) CONTA

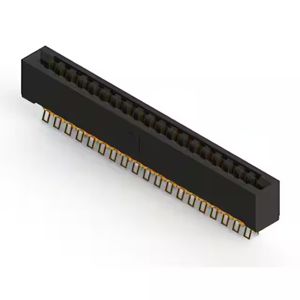

857-038-555-201
857 HIGH TEMP' SERIES (.156" (3.
895-034-523-402
895 SERIES (.100" (2.54MM) CONTA

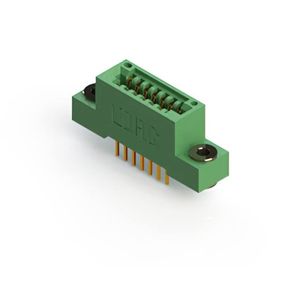

345-014-541-203
345 SERIES (.100" (2.54MM) CONTA

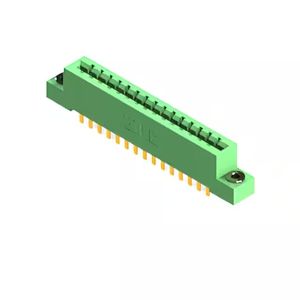

837-030-544-203
CONN EDGE DUAL FMALE 30POS 0.156

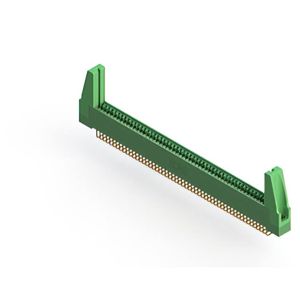

345-053-558-188
345 SERIES (.100" (2.54MM) CONTA

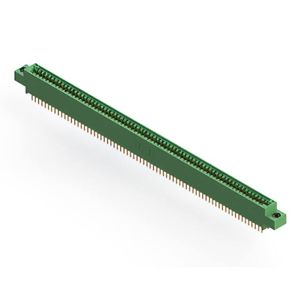

345-142-520-808
345 SERIES (.100" (2.54MM) CONTA

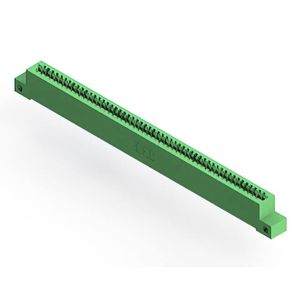

842-053-521-112
842 HIGH TEMP' SERIES (.100" (2.
846-030-559-808
846 HIGH TEMP' SERIES (.125" (3.

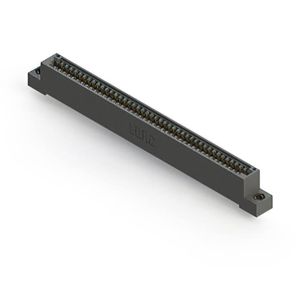

895-043-541-107
895 SERIES (.100" (2.54MM) CONTA

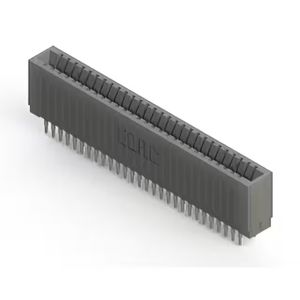

745-056-520-201
CONN EDGE DUAL FMALE 56POS 0.100

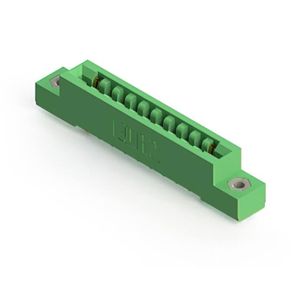

307-020-560-207
307 SERIES (.156" (3.96MM) CONTA

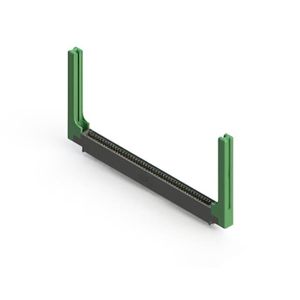

395-049-544-658
395 SERIES (.100" (2.54MM) CONTA
