Card Edge Connectors - Edgeboard Connectors
Card Edge Connectors - Edgeboard Connectors: Reliable Interconnect Solutions for PCB Applications
Definition:
Card Edge Connectors, also known as Edgeboard Connectors, are specialized interconnects designed to provide secure and efficient electrical connections between printed circuit boards (PCBs) and other components. These connectors feature a series of contacts that mate directly with the exposed conductive edges of a PCB, eliminating the need for additional wiring or soldering. Commonly used in high-density applications, they ensure reliable signal transmission and mechanical stability in demanding environments.
Types of Card Edge Connectors:
1. Standard Card Edge Connectors: Ideal for general-purpose PCB connections, offering varying pin counts and pitch sizes.
2. High-Speed Edge Connectors: Optimized for high-frequency signal integrity, often used in telecommunications and computing.
3. Dual-Row Edge Connectors: Provide enhanced contact density for complex PCB designs.
4. Right-Angle Edge Connectors: Enable space-saving vertical or horizontal PCB configurations.
5. Customizable Edgeboard Connectors: Tailored to specific mechanical or electrical requirements, including ruggedized designs for industrial use.
Purchasing Recommendations:
- Compatibility: Verify the connector s pitch, thickness, and pin count to match your PCB specifications.
- Durability: For harsh environments, select connectors with robust materials (e.g., high-temperature plastics, gold-plated contacts).
- Signal Requirements: Choose high-speed variants for applications demanding low crosstalk and impedance control.
- Vendor Reliability: Source from manufacturers with proven quality standards (e.g., UL certification) to ensure long-term performance.
Card Edge Connectors are indispensable in modern electronics, offering a balance of simplicity and precision for seamless PCB integration. Invest in the right type to enhance your system s reliability and efficiency.
Filter and sort
Categories
896-040-540-212
896 SERIES (.125" (3.18MM) CONTA
395-013-521-104
395 SERIES (.100" (2.54MM) CONTA
387-054-542-208
387 SERIES (.156" (3.96MM) CONTA

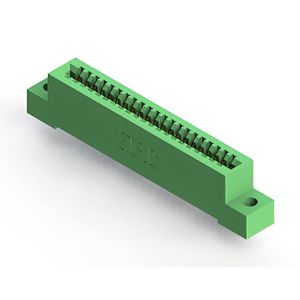

842-021-524-104
842 HIGH TEMP' SERIES (.100" (2.
846-041-500-108
846 HIGH TEMP' SERIES (.125" (3.

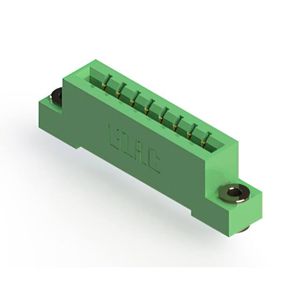

333-008-524-103
333 SERIES (.156" (3.96MM) CONTA

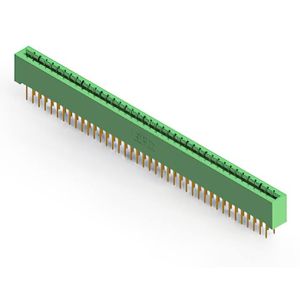

833-080-540-201
CONN EDGE DUAL FMALE 80POS 0.156
395-062-540-258
CONN EDGE DUAL FMALE 62POS 0.100
345-031-544-603
345 SERIES (.100" (2.54MM) CONTA
857-020-500-208
857 HIGH TEMP' SERIES (.156" (3.
833-030-524-603
833 HIGH TEMP' SERIES (.156" (3.
392-014-560-208
392 SERIES (.100" (2.54MM) CONTA

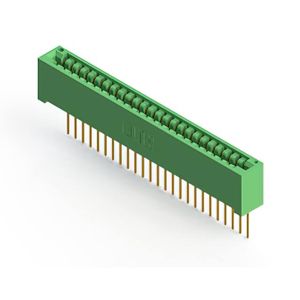

846-025-540-101
846 HIGH TEMP' SERIES (.125" (3.
345-080-520-212
345 SERIES (.100" (2.54MM) CONTA

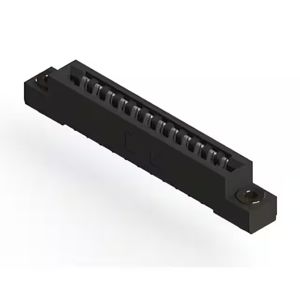

357-012-431-103
357 SERIES (.156" (3.96MM) CONTA

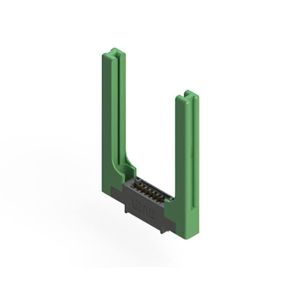

395-008-524-658
395 SERIES (.100" (2.54MM) CONTA
345-144-555-503
345 SERIES (.100" (2.54MM) CONTA
833-018-559-108
CONN EDGE SGL FMALE 18POS 0.156

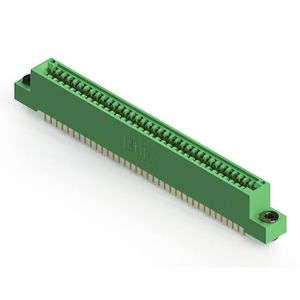

845-072-525-203
845 HIGH TEMP' SERIES (.100" (2.

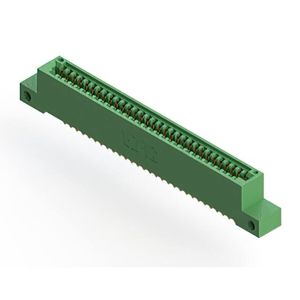

345-032-500-112
CONN EDGE SINGLE FML 32POS 0.100
