Circular Connectors - Contacts
Circular Connectors - Contacts
Definition:
Circular Connectors - Contacts are the essential conductive components within circular connectors, designed to establish secure electrical connections in demanding environments. These precision-engineered contacts (pins and sockets) ensure reliable signal transmission and power delivery across industrial, aerospace, military, and automotive applications.
Types & Variations:
1. Pin Contacts: Male-terminated elements for insertion into socket counterparts.
2. Socket Contacts: Female-terminated elements designed to receive pin contacts.
3. Material Options: Available in brass, phosphor bronze, or beryllium copper, often plated with gold, silver, or tin for corrosion resistance.
4. Size Standards: Compliant with MIL-DTL-5015, MIL-DTL-38999, or DIN standards, catering to varying current/voltage requirements.
Purchasing Guidance:
- Compatibility: Verify contact size (e.g., 20AWG-8AWG) and connector series (e.g., MIL-SPEC, commercial) to match housing specifications.
- Environment: Opt for gold plating in high-corrosion settings; tin plating suffices for cost-sensitive, low-frequency applications.
- Certifications: Prioritize UL, IEC, or MIL-certified contacts for mission-critical systems.
- Supplier Expertise: Partner with vendors offering CAD models and cross-reference tools to streamline BOM integration.
Investing in quality contacts minimizes insertion loss and ensures long-term mating-cycle durability critical for maintaining signal integrity in harsh operating conditions.
Filter and sort
Categories
2359527-1
NECTOR T, CRIMP SKT CONTACT- 1.5
MOVE-C-M-C015G-1.5
CONTACT MALE SIZE 16 (15A)
MP20W23G5
PIN CONTACT, MACHINED, SIZE 20,
HN0101500461
CONTACT PIN 20-22AWG CRIMP SLVR
031-8646-001
CONTACT SOCKET CRIMP SILVER
RC20W3K
CONTACT SOCKET 20-22AWG CRIMP
SA3350
CONTACT PIN 20-24AWG 1=10PC

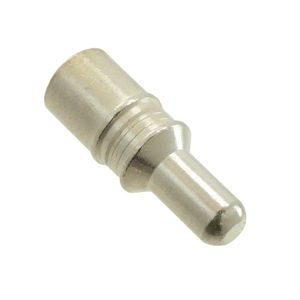

030-8614-010
CONTACT PIN 4AWG CRIMP SILVER

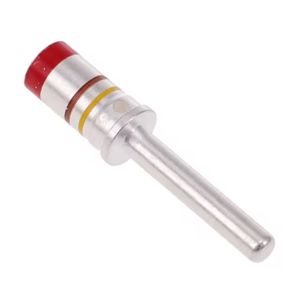

M39029/29-214
CONTACT PIN 8-10AWG CRIMP SILVER

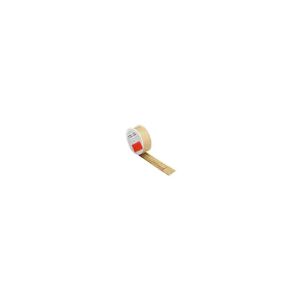

ZN02 015 0047 2
CONTACT SOCKET 18AWG CRIMP GOLD

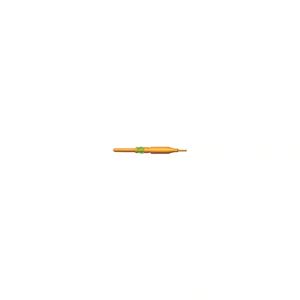

MP20W12E09F
PCB CONTACT - LONG VERSION, GOLD

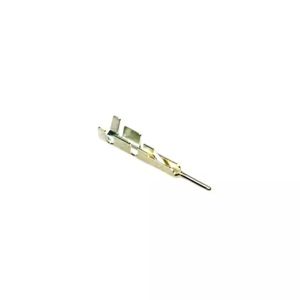

RP17-PC-112
CONTACT PIN 18-22AWG CRIMP SLVR

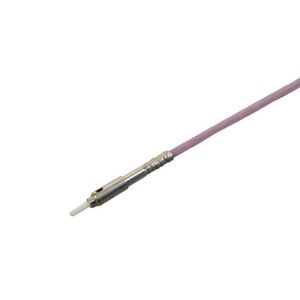

M801-MS1N
ARINC 801, MM, NON-PULL PROOF TE

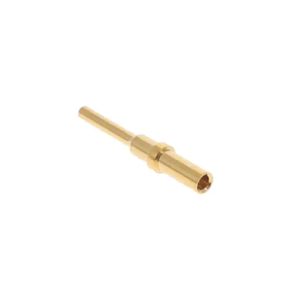

AT0-202-1631
16# MACHINED PIN CONTACT GOLD FL

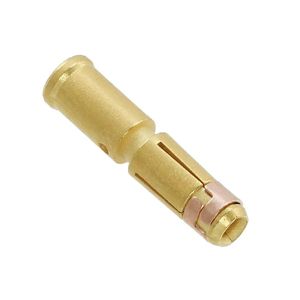

1607658
CONTACT SOCKET 14-18AWG CRIMP

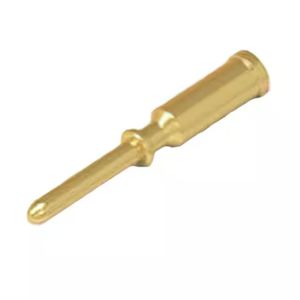

61.232.11
CONTACT PIN SZ 1.0MM CRIMP GOLD

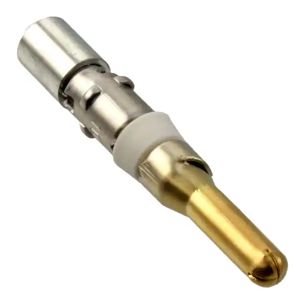

HR41-PC-111(01)
CONTACT PIN 10-12AWG CRIMP GOLD

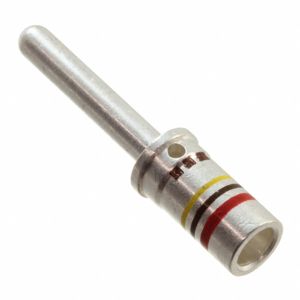

0660-206-0882
CONTACT PIN 8-10AWG SZ8 CRIMP

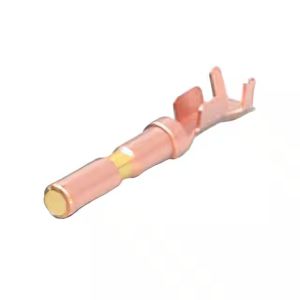

60.046.21
CONTACT SKT SZ 2.0MM CRIMP GOLD

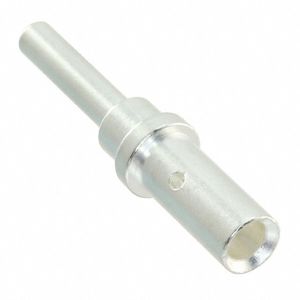

10-729936-162
CONTACT PIN 16AWG CRIMP NICKEL
