Definition:
Circular Connectors - Contacts are the essential conductive components within circular connectors, designed to establish secure electrical connections in demanding environments. These precision-engineered contacts (pins and sockets) ensure reliable signal transmission and power delivery across industrial, aerospace, military, and automotive applications.
Types & Variations:
1. Pin Contacts: Male-terminated elements for insertion into socket counterparts.
2. Socket Contacts: Female-terminated elements designed to receive pin contacts.
3. Material Options: Available in brass, phosphor bronze, or beryllium copper, often plated with gold, silver, or tin for corrosion resistance.
4. Size Standards: Compliant with MIL-DTL-5015, MIL-DTL-38999, or DIN standards, catering to varying current/voltage requirements.
Purchasing Guidance:
- Compatibility: Verify contact size (e.g., 20AWG-8AWG) and connector series (e.g., MIL-SPEC, commercial) to match housing specifications.
- Environment: Opt for gold plating in high-corrosion settings; tin plating suffices for cost-sensitive, low-frequency applications.
- Certifications: Prioritize UL, IEC, or MIL-certified contacts for mission-critical systems.
- Supplier Expertise: Partner with vendors offering CAD models and cross-reference tools to streamline BOM integration.
Investing in quality contacts minimizes insertion loss and ensures long-term mating-cycle durability critical for maintaining signal integrity in harsh operating conditions.
Filter and sort
Categories

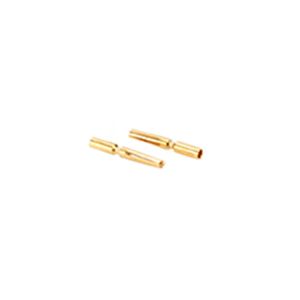

SC000385
CONTACT SOCKET 24-28AWG CRIMP

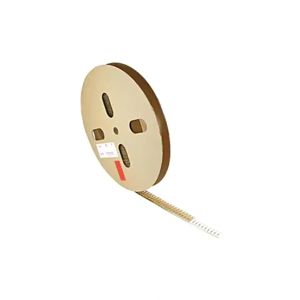

HN0101500472
CONTACT PIN 18AWG CRIMP GOLD
923.000.005.000.299
ODU-USA AMC SERIES T, #16, 1.6MM

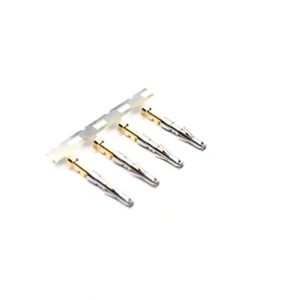

SS24W2G5
CONTACT SOCKET 24AWG SZ20 CRIMP

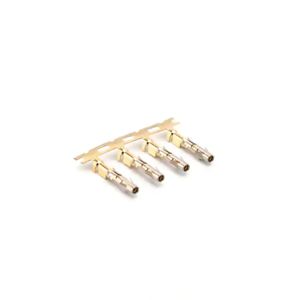

SS16M2G30
CONTACT SOCKET 16AWG SZ16 CRIMP
M39029/32-248
CONTACT SIZE 16 SOCKET, 16 AWG

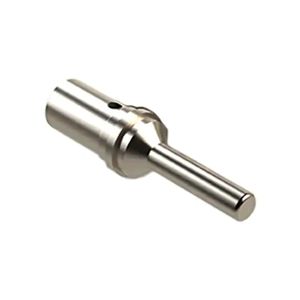

SC000345-141
CONTACT PIN 7-10AWG 3.6MM CRIMP

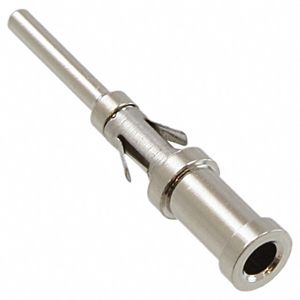

SA3544/P
CONTACT PIN 18-20AWG CRIMP 1=10

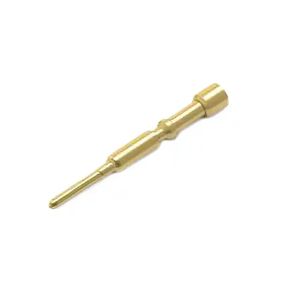

61.083.11
CONTACT PIN SZ 1.0MM CRIMP GOLD

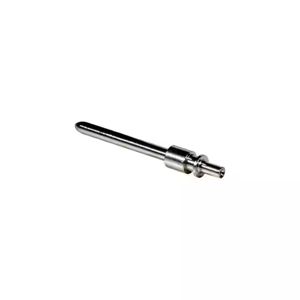

00601762
MALE CONTACT 1.5

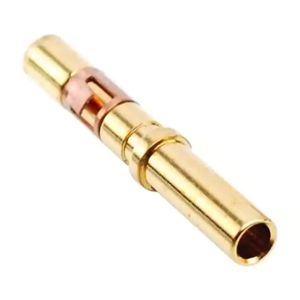

MS16M23F
CONTACT SOCKET 16-18AWG CRIMP

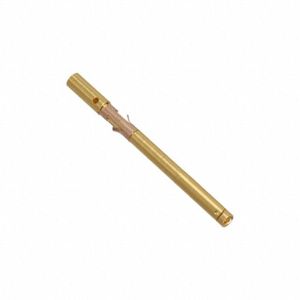

EGG.2B.660.ZZM
CONTACT SOCKET 20-24AWG CRIMP

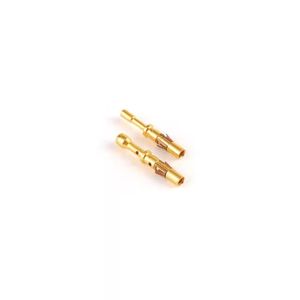

MS20M23G15
SOCKET CONTACT, MACHINED, GOLD 3

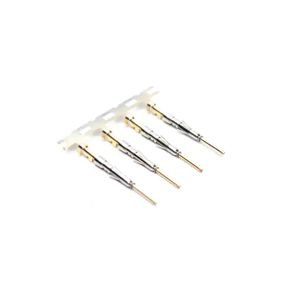

SP28W2G5
CONTACT PIN 28-30AWG SZ20 CRIMP

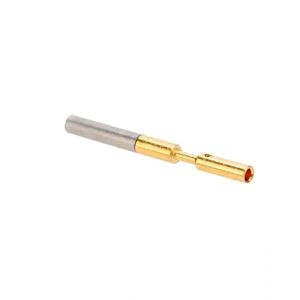

SC000460
CONTACT SOCKET 22-26AWG
SC000261
CONTACT PIN 18-22AWG 1.0MM CRIMP

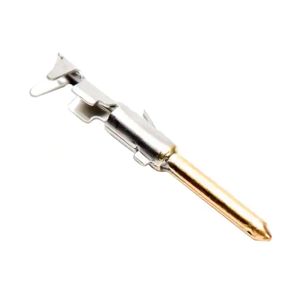

VN0101500472
CONTACT PIN 18AWG CRIMP

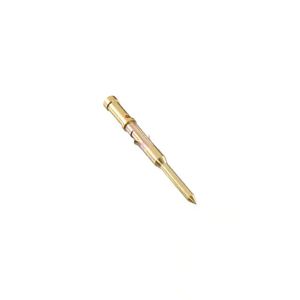

FGG.2B.561.ZZC
CONTACT PIN 22-26AWG CRIMP GOLD

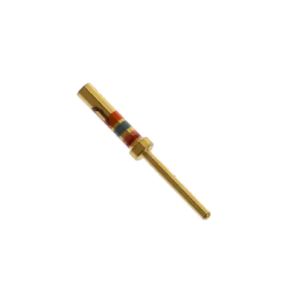

M39029/58-362
CONTACT PIN 22-26AWG CRIMP GOLD

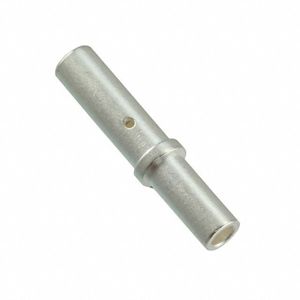

10-730742-121
CONTACT SOCKET 12AWG CRIMP SLVR
