Coaxial Connectors (RF) - Terminators
Coaxial Connectors (RF) - Terminators
Definition:
Coaxial Connectors (RF) - Terminators are specialized components used to terminate coaxial cables in radio frequency (RF) and microwave applications. These terminators provide impedance matching to prevent signal reflections, ensuring optimal signal integrity and minimizing interference in high-frequency circuits. They are essential in applications where unmatched transmission lines could lead to signal degradation or equipment damage.
Types of Products in This Category:
This category includes a variety of RF terminators designed for different connector types and performance requirements:
- 50 Ohm and 75 Ohm Terminators: Standard impedance options for matching common coaxial cable specifications.
- Male and Female Connector Terminators: Available in various genders to suit different interface needs (e.g., SMA, BNC, N-Type, TNC).
- Fixed and Adjustable Terminators: Fixed models offer consistent performance, while adjustable versions allow fine-tuning for precise applications.
- High-Power and Low-Power Terminators: Designed to handle varying power levels, from sensitive instrumentation to robust communication systems.
- Surface-Mount and Through-Hole Terminators: Options for PCB integration or standalone use.
Purchasing Recommendations:
When selecting RF terminators, consider the following factors:
1. Impedance Matching: Ensure the terminator matches the system s impedance (e.g., 50 Ohm for most RF applications, 75 Ohm for video).
2. Frequency Range: Verify the terminator s rated frequency to avoid signal loss or overheating.
3. Connector Type: Choose a terminator compatible with your coaxial connector (e.g., SMA for compact devices, N-Type for high-power systems).
4. Power Handling: Select a terminator rated for your application s power levels to prevent thermal failure.
5. Durability: For harsh environments, opt for ruggedized or weather-resistant models.
Investing in high-quality RF terminators ensures reliable performance, reduces signal distortion, and extends the lifespan of your RF systems. Always prioritize specifications that align with your technical requirements and operational conditions.
Filter and sort
Categories

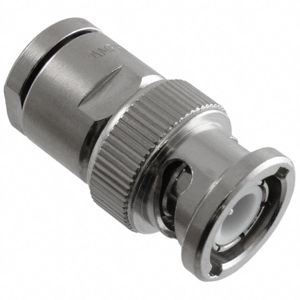

000-46650-75
CONN TERMINATOR PLUG BNC 75OHM

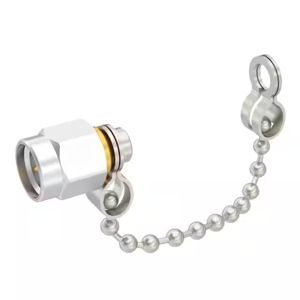

R404N01120
TERMINATION: SMA M 18 GHZ 2W WIT

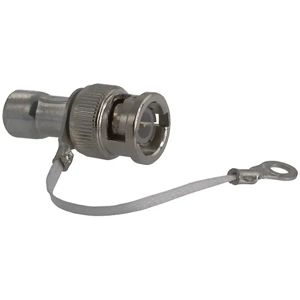

5221629-2
CONN TERMINATOR PLUG BNC 75OHM

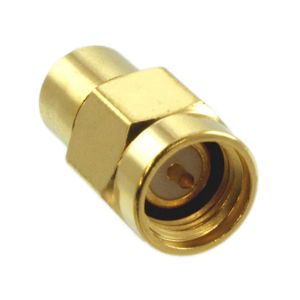

72975
CONN TERMINATOR PLUG SMA 50 OHM
AM20000T001-SM
20000 MHZ TERMINATOR

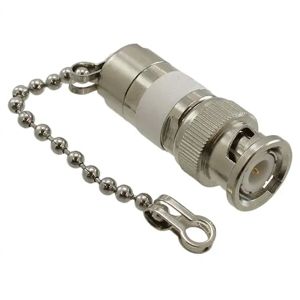

3840-50
CONN TERMINATOR PLUG BNC 50OHM

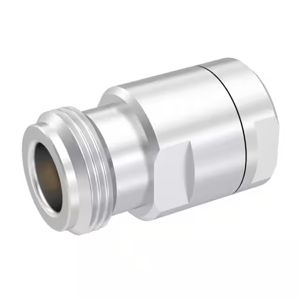

R404355150
PRECISION TERMINATION: N F 18GHZ

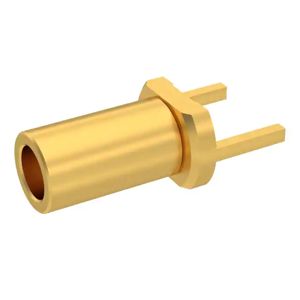

R280280000
CABLE TERMINATION STRAIGHT PCB M

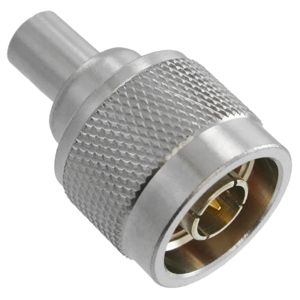

202109
CONN TERMINATOR PLUG N 50OHM

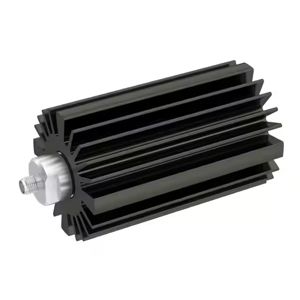

R404765000
TERMINATION: SMA F 6 GHZ 50W

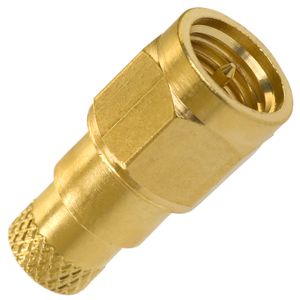

142-0801-861
CONN TERMINATOR PLUG SMA 50OHM
8038-4007
SMPS FEMALE TERMINATION (1/2 WAT

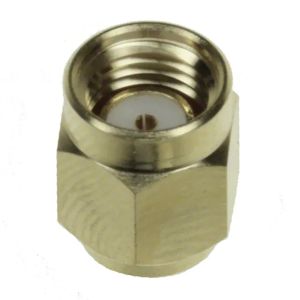

132360RP
CONN TERMINATR PLUG RP-SMA 50OHM

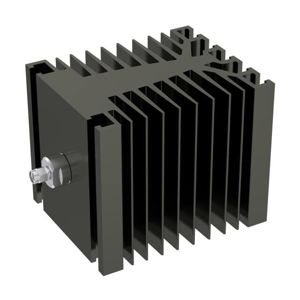

R404774000
TERMINATION: SMA M 6 GHZ 100W
R404N07000
TERMINATION: SMA M 26.5 GHZ 1W

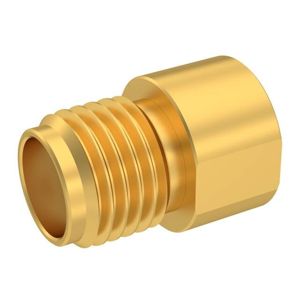

R404N08000
TERMINATION: SMA F 26.5 GHZ 1W

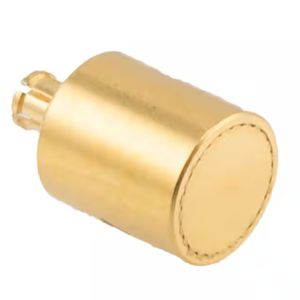

PE6TR1117
18GHZ TERMINATOR MINI SMP (F)1W
AM6000T001-SM
6000 MHZ TERMINATOR
R404758000
TERMINATION: 4.3-10 M SCREW 6 GH
R404122000
TERMINATION: TNC F 4GHZ 1W 50OHM
