Coaxial Connectors (RF) - Terminators

Coaxial Connectors (RF) - Terminators

Definition:

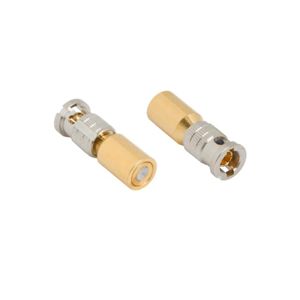

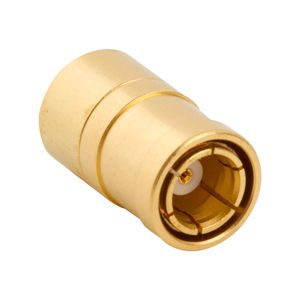

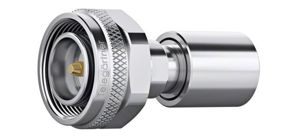

Coaxial Connectors (RF) - Terminators are specialized components used to terminate coaxial cables in radio frequency (RF) and microwave applications. These terminators provide impedance matching to prevent signal reflections, ensuring optimal signal integrity and minimizing interference in high-frequency circuits. They are essential in applications where unmatched transmission lines could lead to signal degradation or equipment damage.

Types of Products in This Category:
This category includes a variety of RF terminators designed for different connector types and performance requirements:
- 50 Ohm and 75 Ohm Terminators: Standard impedance options for matching common coaxial cable specifications.

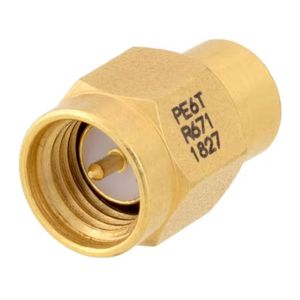

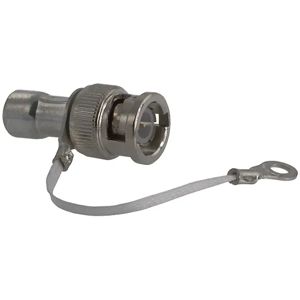

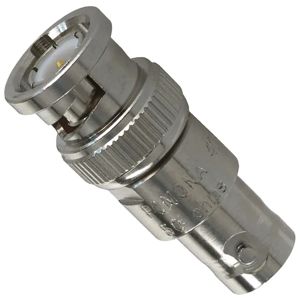

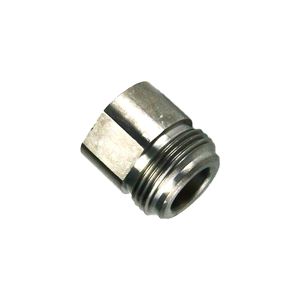

- Male and Female Connector Terminators: Available in various genders to suit different interface needs (e.g., SMA, BNC, N-Type, TNC).
- Fixed and Adjustable Terminators: Fixed models offer consistent performance, while adjustable versions allow fine-tuning for precise applications.

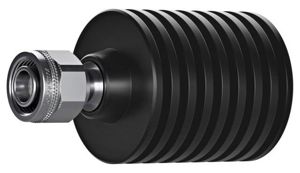

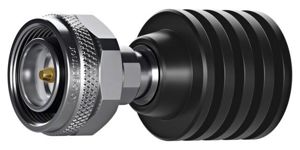

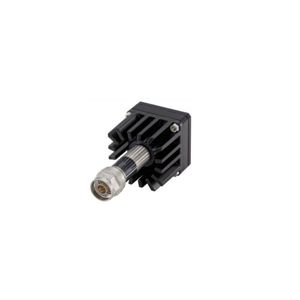

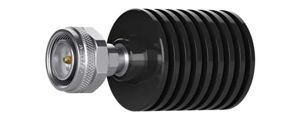

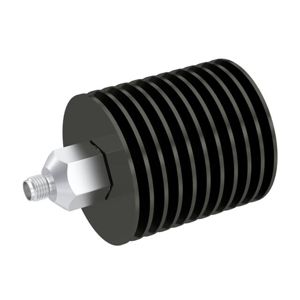

- High-Power and Low-Power Terminators: Designed to handle varying power levels, from sensitive instrumentation to robust communication systems.
- Surface-Mount and Through-Hole Terminators: Options for PCB integration or standalone use.

Purchasing Recommendations:
When selecting RF terminators, consider the following factors:
1. Impedance Matching: Ensure the terminator matches the system s impedance (e.g., 50 Ohm for most RF applications, 75 Ohm for video).
2. Frequency Range: Verify the terminator s rated frequency to avoid signal loss or overheating.
3. Connector Type: Choose a terminator compatible with your coaxial connector (e.g., SMA for compact devices, N-Type for high-power systems).
4. Power Handling: Select a terminator rated for your application s power levels to prevent thermal failure.
5. Durability: For harsh environments, opt for ruggedized or weather-resistant models.

Investing in high-quality RF terminators ensures reliable performance, reduces signal distortion, and extends the lifespan of your RF systems. Always prioritize specifications that align with your technical requirements and operational conditions.

Found 1007 items
