D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

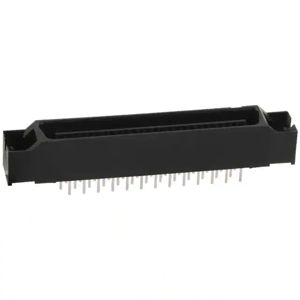

FX2B-52PA-1.27DSA(71)
CONN HEADER VERT 52POS 1.27MM

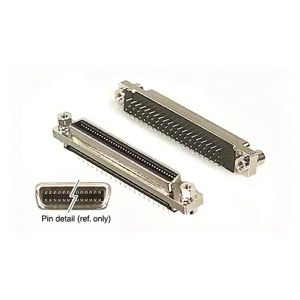

DX20BM-80S(50)
CONN MINI HD RCPT 80P PCB SOLDER

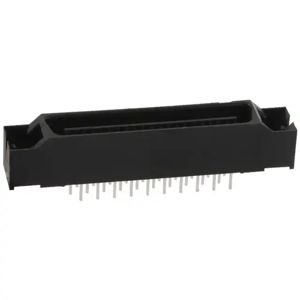

FX2B-40PA-1.27DSA(71)
CONN HEADER VERT 40POS 1.27MM

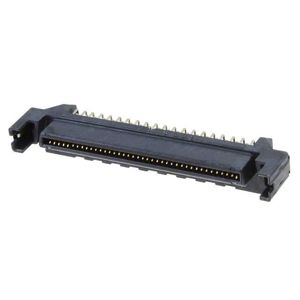

787535-4
CONN BTB SCSI RCPT 80P R/A SLDR

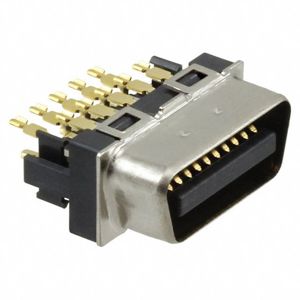

DF02P020F22A1
CONN PLUG 20POS STR SOLDER

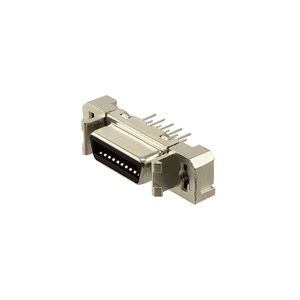

5175887-2
CONN RCPT 20POS PCB SOLDER

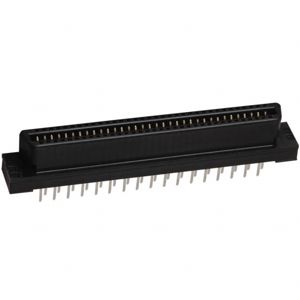

FX2CA-68S-1.27DSA(71)
CONN RECEPT VERT 68POS 1.27MM

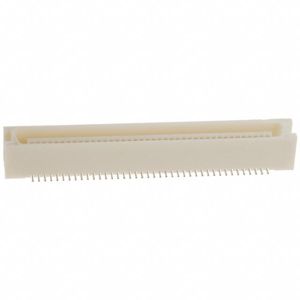

FX2-80P-1.27SV(71)
CONN HEADER STR 80POS 1.27MM SMD

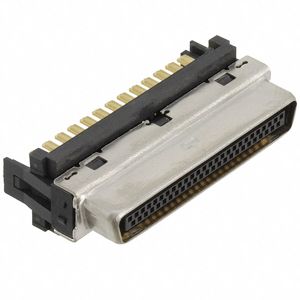

DH40-51S
CONN SCSI PLUG 51POS STR SOLDER

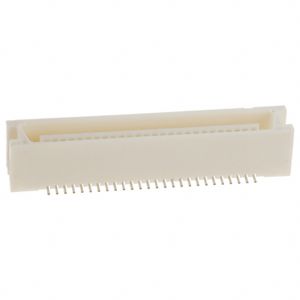

FX2-52P-1.27SV(71)
CONN PLUG 52POS SMD SOLDER

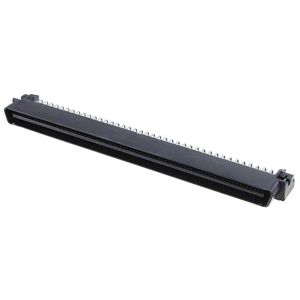

1-1734099-6
CONN BTB PLUG 160POS R/A SOLDER

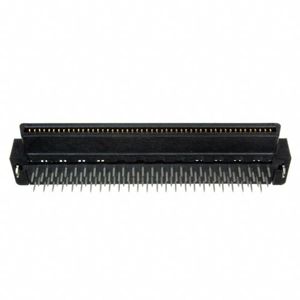

1-1734037-0
CONN BTB RCPT 100POS R/A SOLDER

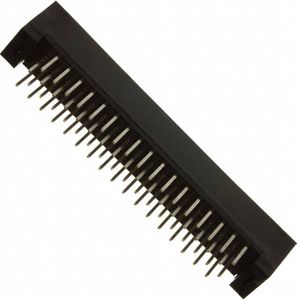

FX2C2-68P-1.27DSA(71)
CONN HEADER VERT 68POS 1.27MM

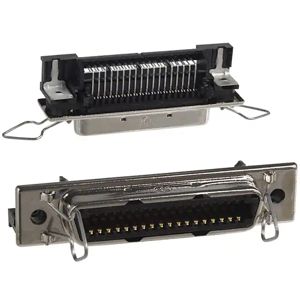

5555520-2
CONN RCPT 36POS R/A SOLDER

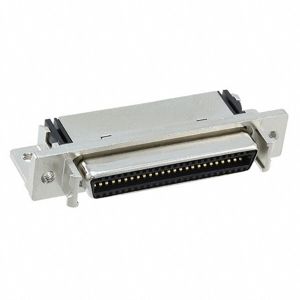

DX10-50S(50)
CONN 1.27MM PITCH HIDENSITY
556409-1
CONN PLUG 64POS STR IDC

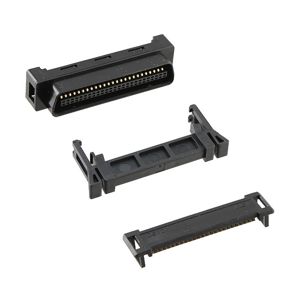

10150-8000EE
CONN PLUG 50POS STR IDC

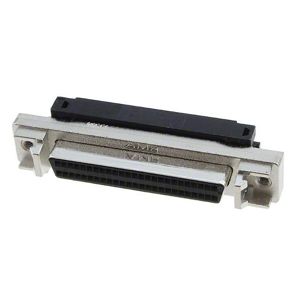

749611-5
CONN SCSI RCPT 50POS PNL MNT IDC

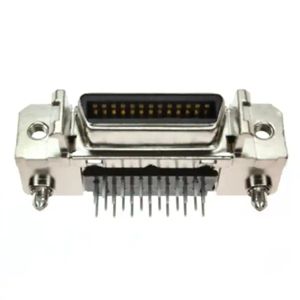

2-5178238-4
CONN RCPT 26POS R/A SOLDER

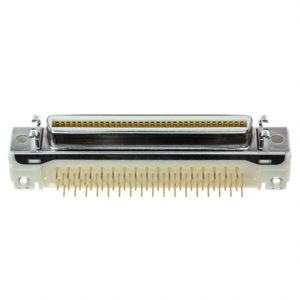

10268-55H3PC
CONN RCPT 68POS R/A SOLDER
