D-Shaped Connectors - Centronics
D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

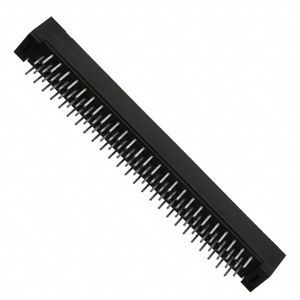

FX2CA1-100P-1.27DSA(71)
CONN HEADER VERT 100POS 1.27MM

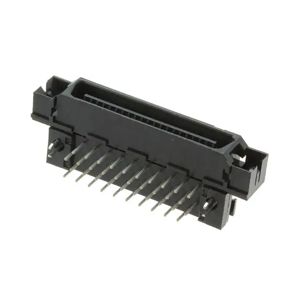

FX2B-40P-1.27DSL(71)
CONN HDR 40POS 1.27MM

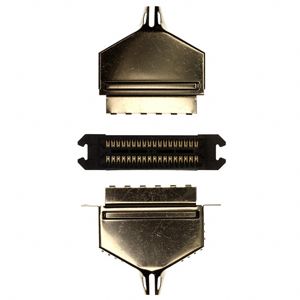

554950-2
CONN PLUG 36POS STR IDC

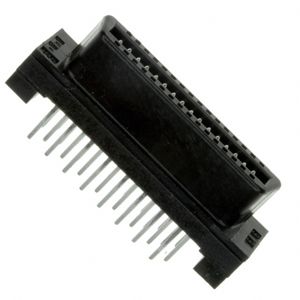

FX2C2-32S-1.27DSA(71)
CONN RECEPT VERT 32POS 1.27MM

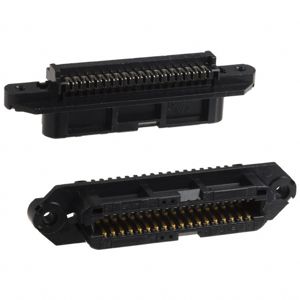

2-552275-1
CONN RCPT 36POS STR IDC

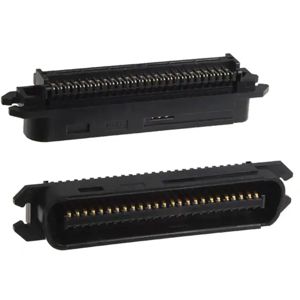

552319-1
CONN PLUG 50POS STR IDC

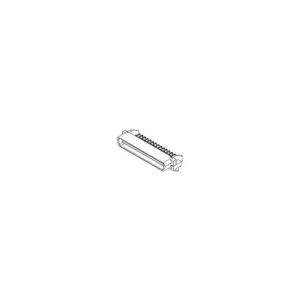

71661-2340
EBBI PLUG 1.27MM RA 40CKT

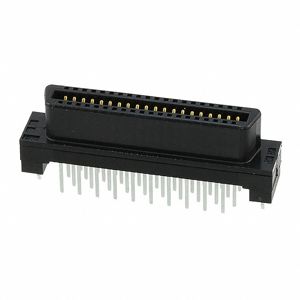

FX2C2-40S-1.27DSAL(71)
CONN RECEPT 40POS 1.27MM

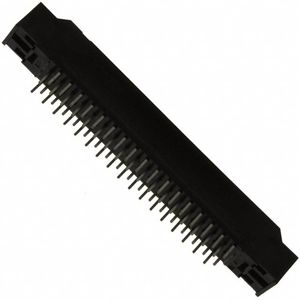

FX2BA-68PA-1.27DSA(71)
CONN HEADER VERT 68POS 1.27MM

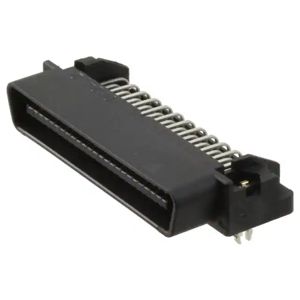

3-5175472-6
CONN BTB HD PLUG 50POS R/A SLDR

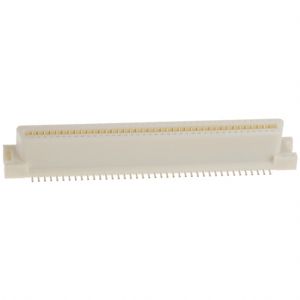

FX2-80S-1.27SV(71)
CONN RECEPT STR 80POS 1.27MM SMD

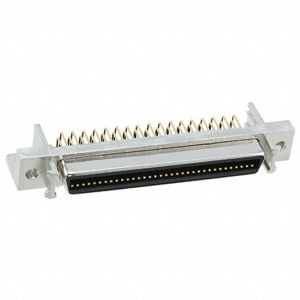

DX10M-68SE(50)
CONN RECEPT 68POS RA PCB

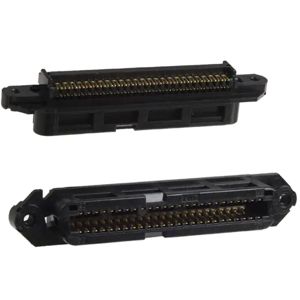

555227-1
CONN RCPT 50POS STR IDC

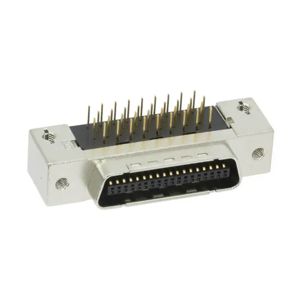

10136-5212PC
CONN PLUG 36POS R/A SOLDER

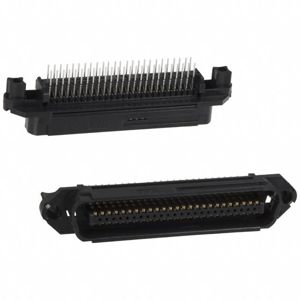

5552116-1
CONN PLUG 50POS VERT SOLDER

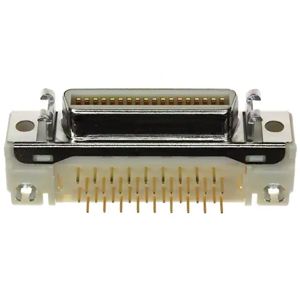

10236-55H3PC
CONN RCPT 36POS R/A SOLDER

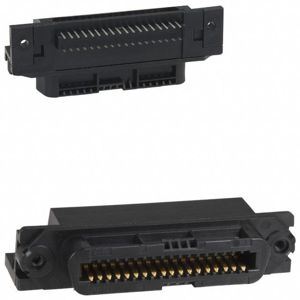

5552742-1
CONN RCPT 36POS R/A SOLDER

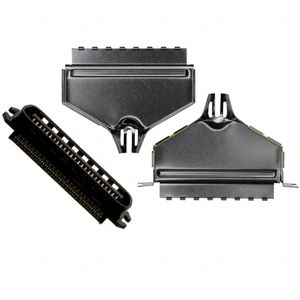

554953-2
CONN PLUG 50POS STR IDC

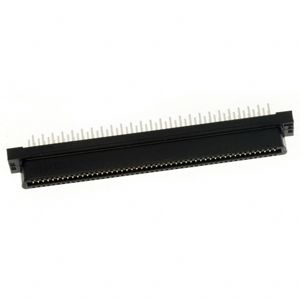

FX2C-100S-1.27DSA(71)
CONN RECEPT VERT 100POS 1.27MM

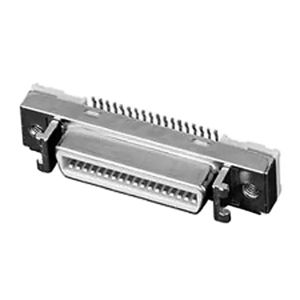

10220-2210PE
CONN RCPT 20POS SMD SOLDER
