D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories

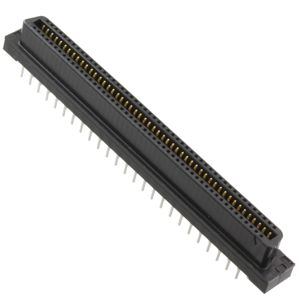

FX2C-100S-1.27DSAL(71)
CONN SOCKET VERT 100POS 1.27MM

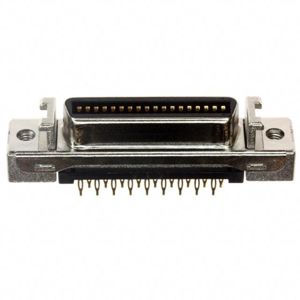

10236-R21TS
CONN RCPT 36POS PCB PRESS-FIT

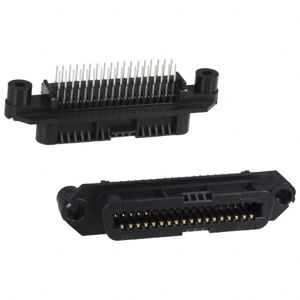

5552235-1
CONN RCPT 36POS VERT SOLDER

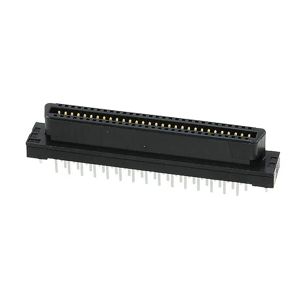

FX2CA-60S-1.27DSAL(71)
CONN RECEPT 60POS 1.27MM
FX2CA2-40P-1.27DSA(71)
CONN HEADER VERT 40POS 1.27MM

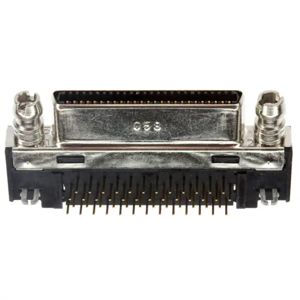

12250-5150-00FR
CONN RCPT 50POS R/A SOLDER

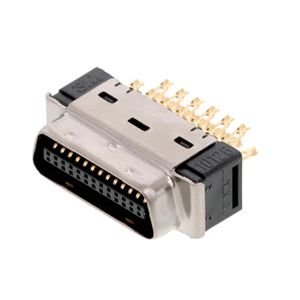

10126-3000PC
CONN PLUG 26POS STR SLDR CUP

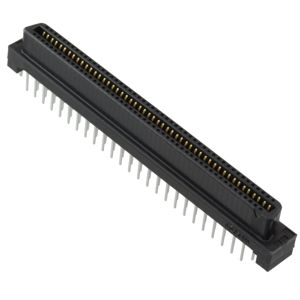

FX2CA2-100S-1.27DSAL(71)
CONN RECEPT 100POS 1.27MM

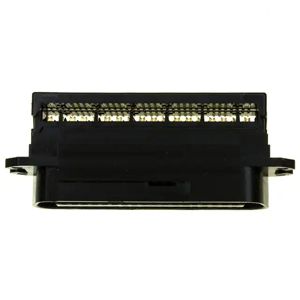

554084-1
CONN PLUG 36POS STR IDC
1734098-8
CONN RCPT 80POS STR IDC

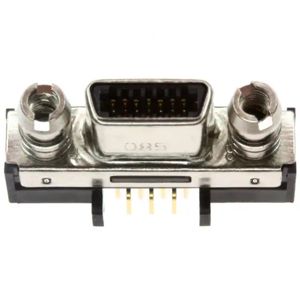

12214-1150-00FR
CONN RCPT 14POS PCB SOLDER

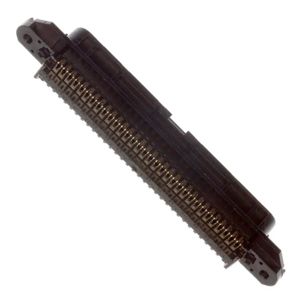

552307-1
CONN RCPT 64POS STR IDC

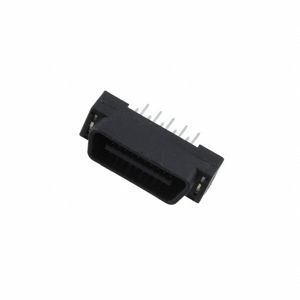

5175473-1
CONN BTB PLUG 20POS VERT SOLDER

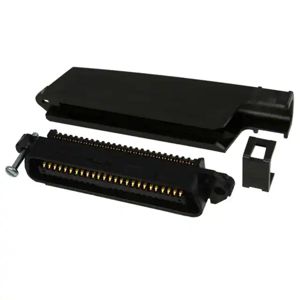

1-5229912-1
CONN PLUG 50POS R/A IDC

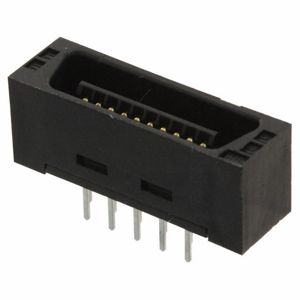

FX2C-20P-1.27DSAL(71)
CONN HEADER VERT 20POS 1.27MM

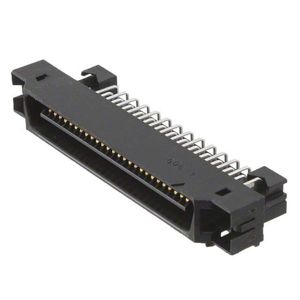

FX2B-52PA-1.27DSL(71)
CONN HEADER R/A 52POS 1.27MM

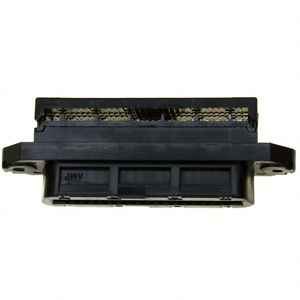

553601-1
CONN RCPT 36POS PNL MNT IDC

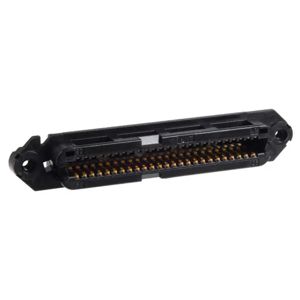

229975-1
CONN RCPT 50POS STR IDC

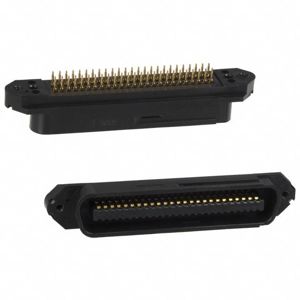

554758-1
CONN PLUG 50POS VERT PRESS-FIT

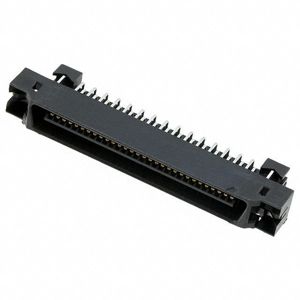

FX2B-60PA-1.27DSL(71)
CONN HDR 60POS 1.27MM
