D-Shaped Connectors - Centronics
D-Shaped Connectors - Centronics: Reliable Interconnect Solutions for Data Transfer
Definition & Overview
D-Shaped Connectors - Centronics are a specialized type of rectangular, D-shell interconnects primarily designed for parallel data transmission, widely recognized for their use in legacy printer and peripheral connections. Characterized by their sturdy, latch-secured design, these connectors ensure stable signal integrity in demanding environments. As a subcategory of Connectors & Interconnects, Centronics-style D-Shaed connectors adhere to standardized pin configurations (e.g., 36-pin for IEEE-1284 applications) and offer gender variants (male/female) for versatile mating.
Product Types & Applications
This category includes:
1. Standard Centronics Connectors Classic 36-pin interfaces for legacy printers/scanners.
2. High-Density variants Compact designs for space-constrained industrial setups.
3. Shielded & Ruggedized Models EMI-resistant options for automotive/military use.
4. Adapter Kits Enabling compatibility with modern USB or serial interfaces.
Common applications span industrial automation, vintage equipment maintenance, and retro-computing hardware restoration.
Purchasing Recommendations
1. Pin Configuration Verify pin count (e.g., 14, 24, 36) against your device s IEEE-1284 requirements.
2. Durability Opt for gold-plated contacts or nylon housings in high-vibration environments.
3. Compliance Ensure MIL-DTL-24308 or IEC 60603-22 standards for defense/aerospace projects.
4. Future-Proofing Consider hybrid adapters if integrating legacy systems with contemporary buses.
Ideal for engineers prioritizing backward compatibility and mechanical robustness in data transfer systems.
Filter and sort
Categories
5084488-3
CONN SCA-2 PLUG 40POS VERT SLDR

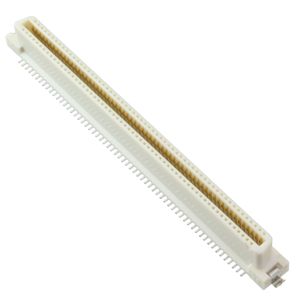

FX2-120S-1.27SVL(71)
CONN RCPT 120POS SMD SOLDER

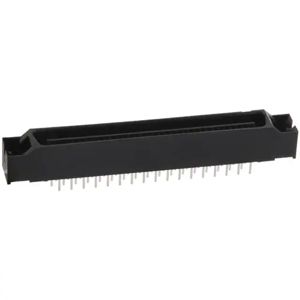

FX2B-68PA-1.27DSA(71)
CONN HEADER VERT 68POS 1.27MM

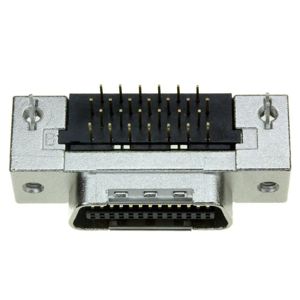

10126-52B2PC
CONN PLUG 26POS R/A SOLDER

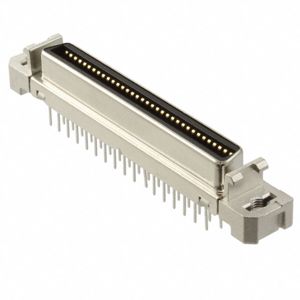

2-5175887-8
CONN RCPT 68POS PCB SOLDER

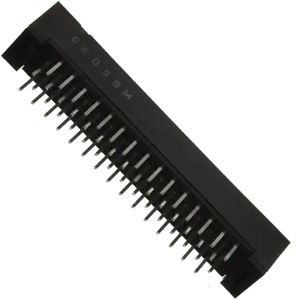

FX2CA1-60P-1.27DSA(71)
CONN HEADER VERT 60POS 1.27MM

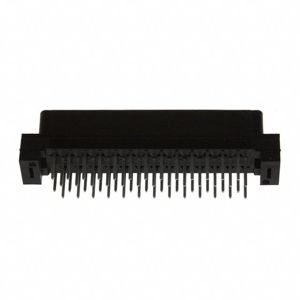

FX2CA2-52S-1.27DSA(71)
CONN RECEPT VERT 52POS 1.27MM

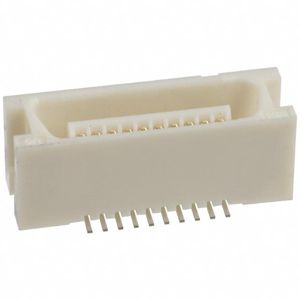

FX2-20P-1.27SV(71)
CONN PLUG 20POS SMD SOLDER
111-050-213L001
CONN SCSI RCPT 50POS VERT SOLDER

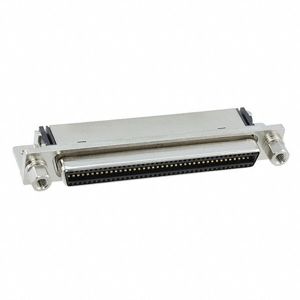

DX10A-80S(50)
CONN PLUG 80POS RA

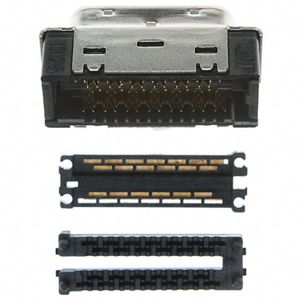

10126-6000EC
CONN PLUG 26POS STR IDC

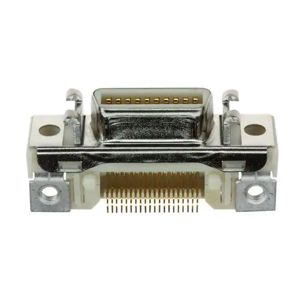

10220-1210PE
CONN RCPT 20POS R/A SOLDER

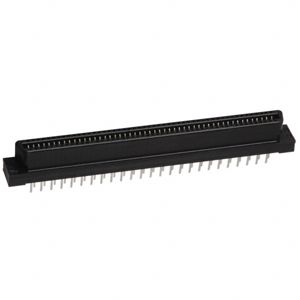

FX2CA-100S-1.27DSA(71)
CONN RECEPT VERT 100POS 1.27MM

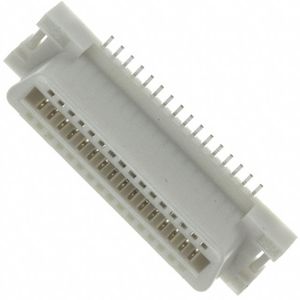

FX2-32S-1.27SV(71)
CONN RCPT 32POS SMD SOLDER

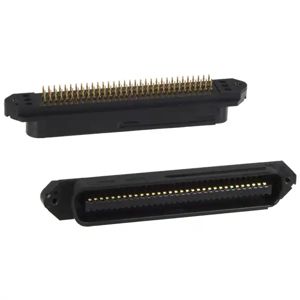

554759-1
CONN PLUG 64POS VERT PRESS-FIT
112-024-213R001
CONN SCSI RCPT 24POS R/A SOLDER

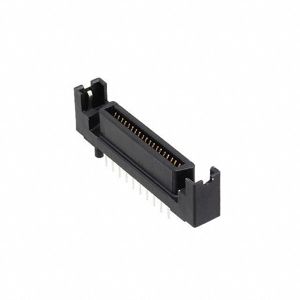

71781-003LF
CONN SCA-2 RCPT 40POS VERT SLDR

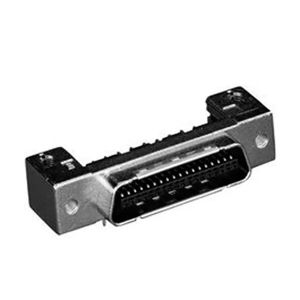

10126-5212PC
CONN BTB PLUG 26POS R/A SOLDER
5554923-2
CONN RCPT 24POS R/A SOLDER

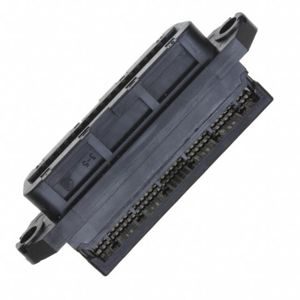

554089-1
CONN RCPT 36POS PNL MNT IDC
