Definition:
D-Sub (D-Subminiature) adapters are specialized interconnect components designed to facilitate compatibility, signal conversion, or physical interface transitions between D-Sub connectors of differing genders, pin configurations, or standards. These adapters ensure seamless integration in legacy and modern systems by bridging mismatched D-Sub ports (e.g., DB9 to DB25) or converting between connector types (e.g., D-Sub to USB).
Types of D-Sub Adapters:
1. Gender Changers: Convert male to female connectors (or vice versa) without altering pinouts.
2. Pin/Port Converters: Adapt between D-Sub variants (e.g., DB15 to DB9) for legacy device support.
3. Hybrid Adapters: Interface D-Sub with non-D-Sub standards (e.g., D-Sub to RJ45, HDMI, or terminal blocks).
4. Filtered Adapters: Incorporate EMI/RFI shielding for signal integrity in high-noise environments.
5. Cable Adapters: Combine D-Sub connectors with cable assemblies for extended reach or modular setups.
Purchasing Recommendations:
- Compatibility: Verify the adapter s pin count (e.g., 9, 15, 25, 37) and gender (male/female) against your system requirements.
- Signal Type: For analog/digital signals (e.g., VGA, serial RS-232), ensure the adapter supports the required protocol and bandwidth.
- Durability: Opt for metal-shell or shielded designs in industrial/outdoor applications to resist corrosion and EMI.
- Standards Compliance: Check for certifications (e.g., MIL-DTL-24308, RoHS) for aerospace, defense, or regulated industries.
- Vendor Support: Source from suppliers offering customization (e.g., custom pin wiring) for niche applications.
D-Sub adapters remain critical for retrofitting legacy equipment, simplifying cabling architectures, and enabling cross-standard connectivity. Select a product aligned with your electrical, mechanical, and environmental constraints to ensure reliable performance.
Filter and sort
Categories
09670370605
D-SUB 37PIN FEMALE TO MALE GENDE

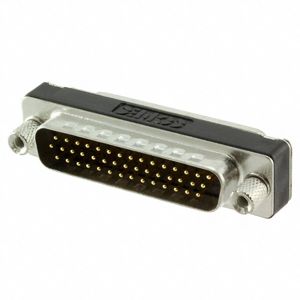

243A11700X
CONN DSUB ADAPTER HD44F HD44M

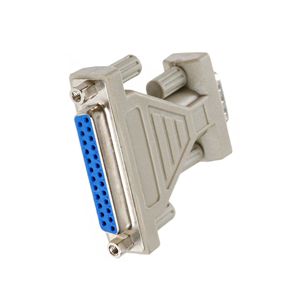

460-BE-9M25F
CONN DSUB ADAPTER DB25F DB9M

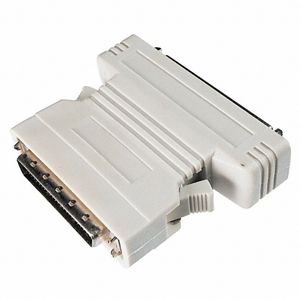

AB885-M/F
CONN DSUB ADAPTER HPD68F HPD50M

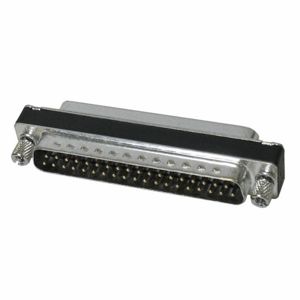

163C50039X
CONN DSUB ADAPTER DB37F DB37M

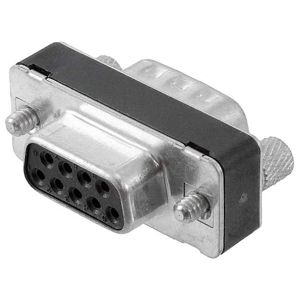

243A10050X
CONN DSUB ADAPTER DB9F DB9M

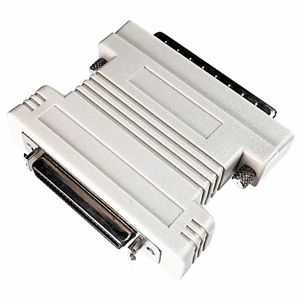

AB887-F/M
CONN DSUB ADAPTR CENT 50F HPD68M
P100-000-R
CONN DSUB ADAPTER DB9M DB25M

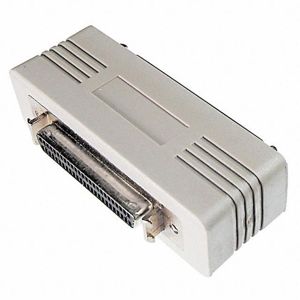

AB885-F/F
CONN DSUB ADAPTER HPD50F HPD68F

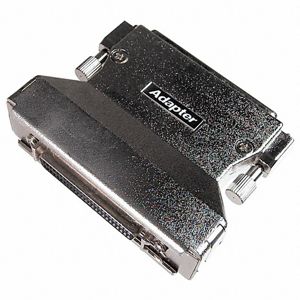

AB867
CONN DSUB ADAPTR HPD50F CENT 68M
P156-000-R
DSUB GENDER CHANGER DB25M DB25M

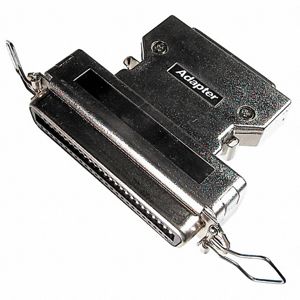

AB880
CONN DSUB ADPT CENT 50F CENT 50M

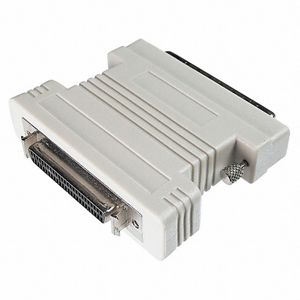

AB885-F/M
CONN DSUB ADAPTER HPD50F HPD68M

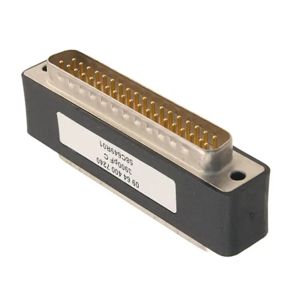

09644007240
CONN DSUB ADAPTER DB37F DB37M

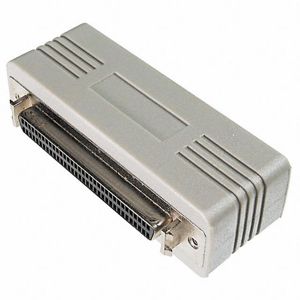

AB886-F/F
DSUB GENDER CHANGR HPD68F HPD68F

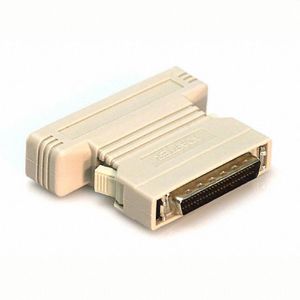

AB-Y344
CONN DSUB ADAPTER HPD50M HPD68M

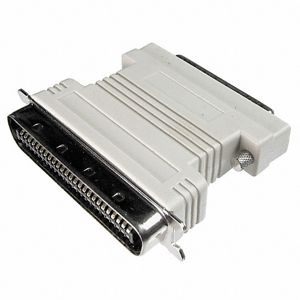

AB869-M/M
CONN DSUB ADAPTR CENT 50M HPD68M

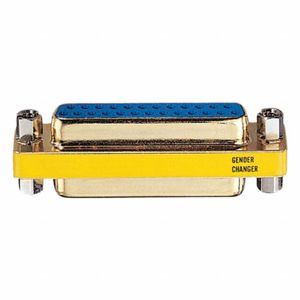

P154-000
DSUB GENDER CHANGER DB25F DB25F

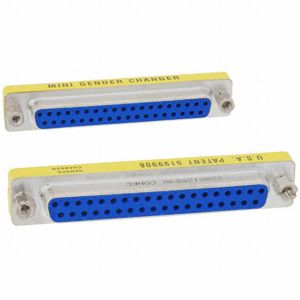

320X12559X
DSUB GENDER CHANGER DB37F DB37F

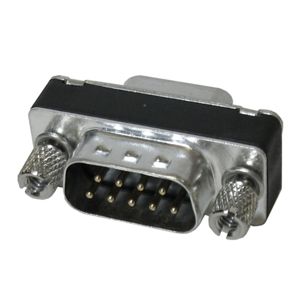

163C50009X
CONN DSUB ADAPTER DB9F DB9M
