Data Acquisition - Analog to Digital Converters (ADC)
Data Acquisition - Analog to Digital Converters (ADC) Overview
Definition:
Analog-to-Digital Converters (ADCs) are a critical subcategory of Integrated Circuits (ICs) designed to convert continuous analog signals into discrete digital values. These components are essential for data acquisition systems, enabling precise measurement, processing, and transmission of real-world signals in digital systems. ADCs are widely used in applications such as industrial automation, medical instrumentation, consumer electronics, and communication systems.
Types of ADCs in This Category:
1. Successive Approximation Register (SAR) ADCs Offer a balance of speed and resolution, ideal for medium-speed applications like sensor interfaces.
2. Delta-Sigma ( ) ADCs Provide high resolution and noise reduction, commonly used in audio processing and precision measurement.
3. Pipeline ADCs Deliver high-speed conversion for applications such as radar and wireless communications.
4. Flash ADCs Ultra-fast conversion for real-time signal processing in high-frequency systems.
5. Dual-Slope ADCs Known for high accuracy in low-speed applications like digital multimeters.
Purchasing Recommendations:
- Resolution & Speed: Match the ADC s bit resolution (e.g., 8-bit to 24-bit) and sampling rate to your system s requirements.
- Interface Compatibility: Ensure compatibility with standard interfaces (SPI, I2C, parallel) for seamless integration.
- Power Consumption: Consider low-power ADCs for battery-operated or portable devices.
- Application-Specific Needs: Select specialized ADCs (e.g., high-precision for medical devices or ruggedized for industrial use).
By understanding these factors, you can optimize performance and cost-efficiency in your data acquisition systems.
Filter and sort
Categories
AD9633BCPZ-80
IC ADC 12BIT PIPELINED 48LFCSP
MAX5875EGK
16-BIT, 200MSPS, DUAL DAC
MAX1080AEUP
IC ADC 10BIT SAR 20TSSOP
MCP33111-10T-E/MN
IC ADC 12BIT SAR 10TDFN
LTC2480IMS#TRPBF
IC ADC 16BIT SIGMA-DELTA 10MSOP

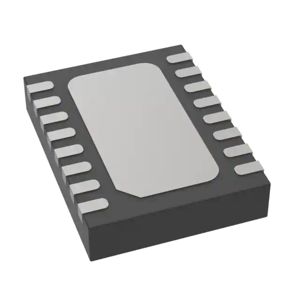

LTC2378IDE-18#TRPBF
IC ADC 18BIT SAR 16DFN
ADS1232IPWR
IC ADC 24BIT SIGMA-DELTA 24TSSOP
LTC2380IMS-16#PBF
IC ADC 16BIT SAR 16MSOP

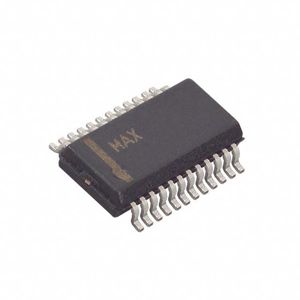

MAX1092AEEG+
IC ADC 10BIT 400KSPS 24-QSOP
LTC1298IS8#TRPBF
IC ADC 12BIT SAR 8SOIC

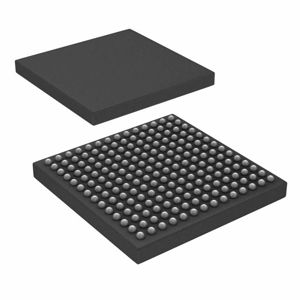

ADS54T04IZAYR
IC ADC 12BIT PIPELINED 196NFBGA

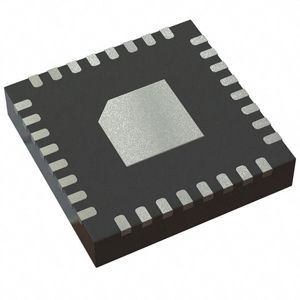

ADS114S06IRHBR
IC ADC 16BIT SIGMA-DELTA 32VQFN
MCP33111-10-E/MS
IC ADC 12BIT SAR 10MSOP

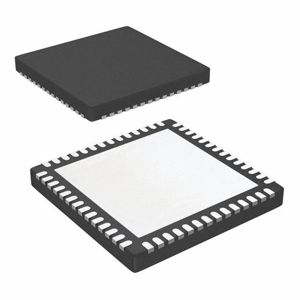

AD9484BCPZ-500
IC ADC 8BIT PIPELINED 56LFCSP
LTC1298CS8#PBF
IC ADC 12BIT SAR 8SOIC
MAX1284BCSA+
IC ADC 12BIT SAR 8SOIC

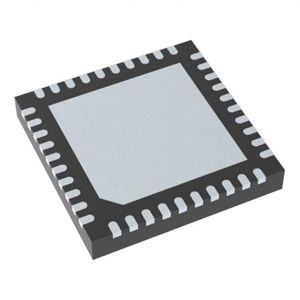

LTC2265IUJ-12#TRPBF
IC ADC 12BIT PIPELINED 40QFN
AD977BRS
IC ADC 16BIT SAR 28SSOP
ADS122C04IPWR
IC ADC 24BIT SIGMA-DELTA 16TSSOP

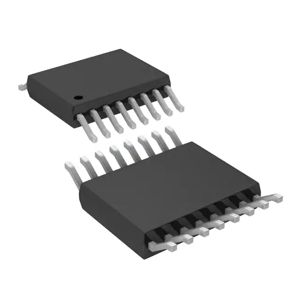

LTC2327HMS-18#TRPBF
IC ADC 18BIT SAR 16MSOP
