Definition:
Digital Potentiometers, often referred to as "digipots," are integrated circuits (ICs) designed to emulate the functionality of traditional mechanical potentiometers but with digital control. These devices provide variable resistance through electronic signals, enabling precise adjustment of voltage division, current control, or signal attenuation in a circuit. As a key component in data acquisition systems, digital potentiometers offer enhanced accuracy, programmability, and reliability compared to their analog counterparts.
Types of Digital Potentiometers:
1. Volatile vs. Non-Volatile:
- Volatile Digipots lose their settings when power is removed, suitable for dynamic applications requiring frequent adjustments.
- Non-Volatile Digipots retain settings after power-off, ideal for preset configurations or memory-critical systems.
Interface Types:
- I2C/SPI-Compatible: Enable serial communication for microcontroller-based designs.
- Up/Down Interface: Simple pulse-controlled adjustment for basic applications.
Resolution & Channels:
- Ranging from 6-bit to 10-bit resolution for fine-tuning precision.
- Single, dual, or quad-channel options to support multi-circuit control.
Purchasing Recommendations:
- Match Resolution to Application: Higher bit counts (e.g., 10-bit) are critical for sensitive analog signal processing, while 6-8 bits suffice for general-purpose use.
- Consider Endurance: For frequently adjusted systems, select digipots with high write-cycle ratings (e.g., >50,000 cycles).
- Verify Voltage Compatibility: Ensure the IC s operating voltage range aligns with your circuit s requirements (e.g., 3.3V, 5V, or 15V).
- Package Size: SMD packages (e.g., TSSOP, QFN) save space in compact designs, while DIP options simplify prototyping.
Digital potentiometers bridge analog flexibility with digital precision, making them indispensable for audio equipment, sensor calibration, and automated test systems. Evaluate technical specs against your design s needs to optimize performance and cost-efficiency.
Filter and sort
Categories

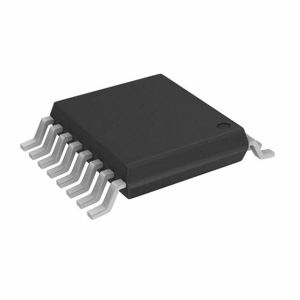

DS1881E-050+
IC DGTL POT 45KOHM 64TAP 16TSSOP

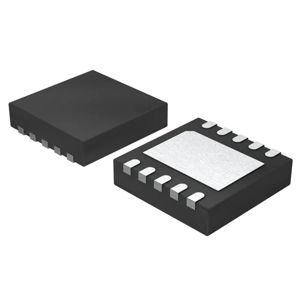

ISL22316WFRT10Z-TK
IC DGTL POT 10KOHM 128TAP 10TDFN

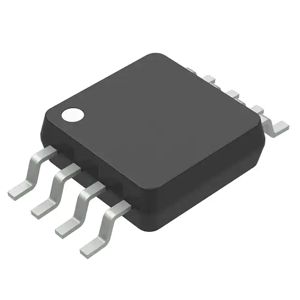

MCP4561T-104E/MS
IC DGTL POT 100KOHM 257TAP 8MSOP

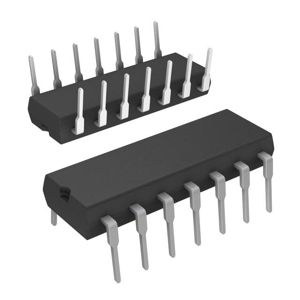

MCP42010-E/P
IC DGTL POT 10KOHM 256TAP 14DIP
ISL23318WFUZ-T7A
IC DGTL POT 10KOHM 128TAP 10MSOP

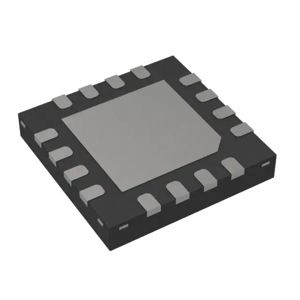

MAX5391LATE+T
IC DGT POT 10KOHM 256TAP 16TQFN
MCP4341-103E/ML
IC DGTL POT 10KOHM 129TAP 20QFN
X9511WSIZ
IC DGTL POT 10KOHM 32TAP 8SOIC

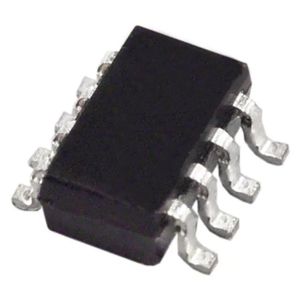

AD5160BRJZ5-RL7
IC DGTL POT 5KOHM 256TAP SOT23-8
MCP4021-502E/MS
IC DGTL POT 5KOHM 64TAP 8MSOP

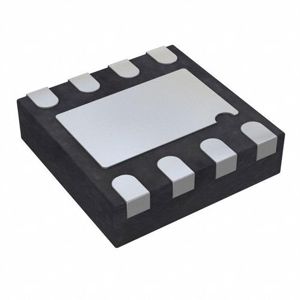

AD5110BCPZ10-1-RL7
IC DGTL POT 10KOHM 128TAP 8LFCSP
MCP4342-103E/ST
IC DGT POT 10KOHM 129TAP 14TSSOP

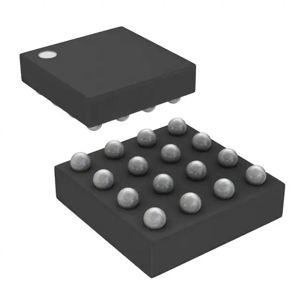

DS1847B-050+T&R
IC DGT POT 50KOHM 256TAP 16CSBGA

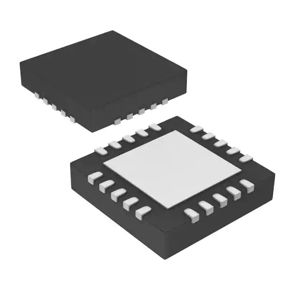

MCP4451-104E/ML
IC DGT POT 100KOHM 257TAP 20QFN

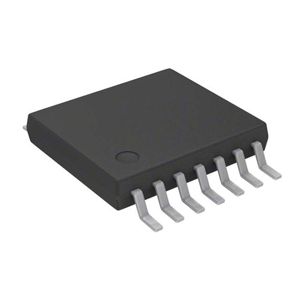

MCP4651T-104E/ST
IC DGT POT 100KOHM 257TP 14TSSOP

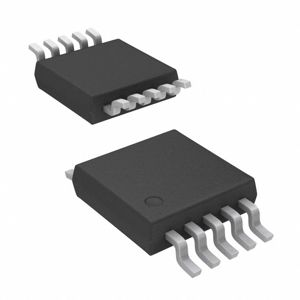

CAT5271ZI-50-GT3
IC DGTL POT 50KOHM 256TAP 10MSOP
X9317WS8Z-2.7
IC DGTL POT 10KOHM 100TAP 8SOIC
MAX5402EUA+
IC DGTL POT 10KOHM 256TAP 8UMAX

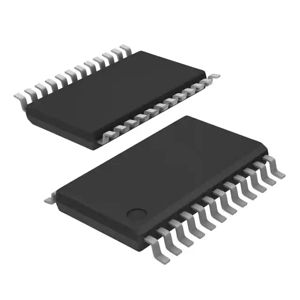

X9418WV24
IC DGTL POT 10KOHM 64TAP 24TSSOP

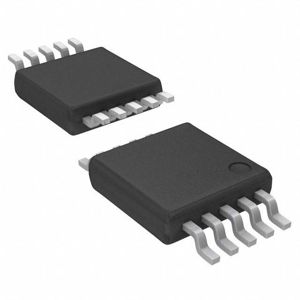

MAX5450EUB+T
IC DGTL POT 10KOHM 256TAP 10UMAX
