Diodes - Bridge Rectifiers
Diodes - Bridge Rectifiers: Classification Introduction
1. Definition of the Category
Diodes - Bridge Rectifiers are essential discrete semiconductor components designed to convert alternating current (AC) to direct current (DC) efficiently. As a specialized subset of diodes, bridge rectifiers integrate four or more diodes in a specific configuration (typically a Graetz circuit) to provide full-wave rectification. This ensures smoother DC output with higher efficiency compared to half-wave rectifiers, making them critical in power supply circuits across industries.
2. Types of Bridge Rectifiers
This category encompasses several key types, each tailored for distinct applications:
- Single-Phase Bridge Rectifiers: Standard for low-to-medium power applications (e.g., consumer electronics, adapters).
- Three-Phase Bridge Rectifiers: Used in industrial equipment and high-power systems requiring robust AC/DC conversion.
- Surface-Mount (SMD) Bridge Rectifiers: Compact designs for space-constrained PCB applications.
- Through-Hole Bridge Rectifiers: Ideal for high-reliability scenarios, such as automotive or industrial power supplies.
- High-Voltage/High-Current Rectifiers: Engineered for specialized power transmission and heavy machinery.
3. Purchasing Recommendations
When selecting bridge rectifiers, consider the following:
- Voltage/Current Ratings: Ensure the device s maximum repetitive reverse voltage (VRRM) and forward current (IF) exceed your circuit requirements.
- Efficiency & Thermal Performance: Opt for models with low forward voltage drop (V_F) and adequate heat dissipation (e.g., heatsink-compatible packages).
- Certifications & Standards: Prioritize UL, IEC, or AEC-Q101 certified components for safety and reliability.
- Supplier Expertise: Source from vendors offering technical support and lifecycle management, especially for high-volume or mission-critical applications.
Bridge rectifiers are foundational to modern electronics choosing the right type ensures optimal performance, longevity, and cost-effectiveness for your power conversion needs.
Filter and sort
Categories

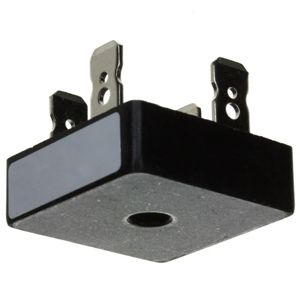

VS-26MB100A
BRIDGE RECT 1PHASE 1KV 25A D-34

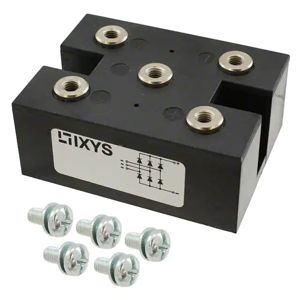

VUO125-16NO7
BRIDGE RECT 3P 1.6KV 166A PWS-C

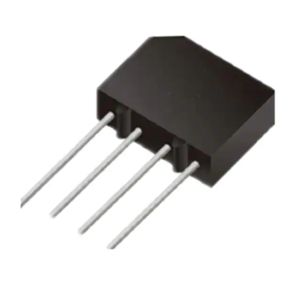

KBP210
Bridge Rectifier KBP 1KV 2A

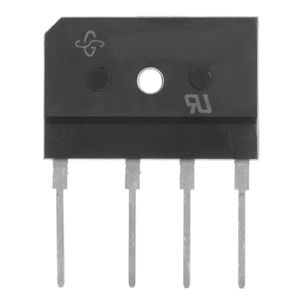

GSIB2540-E3/45
BRIDGE RECT 1P 400V 3.5A GSIB-5S

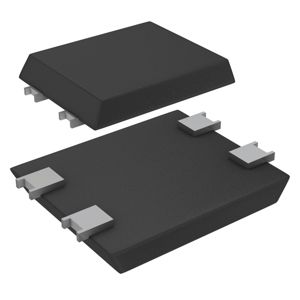

RDBF258-13
BRIDGE RECTIFIER DBF T&R 3K

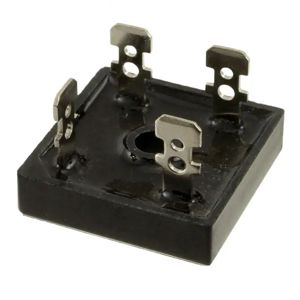

KBPC5004T
BRIDGE RECT 1PHASE 400V 50A KBPC

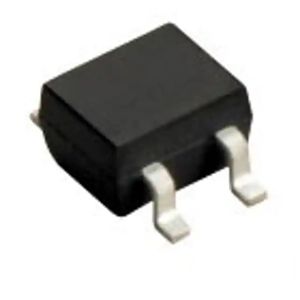

DRS306K
BRIDGE RECT GLASS 800V 3A DK3

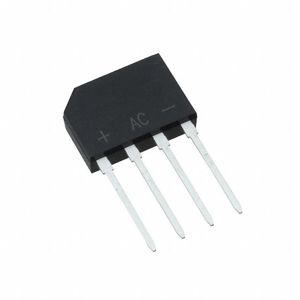

KBP4005G
BRIDGE RECT 1PHASE 50V 4A KBP

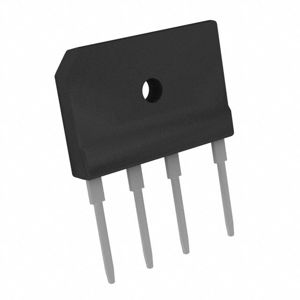

GBJ810-B1-0000
RECT BRIDGE 1000V 8A 6KBJ

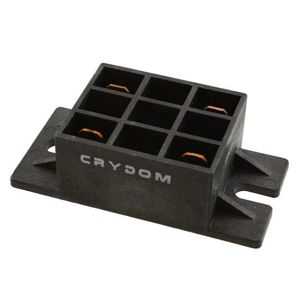

B483C-2
BRIDGE RECT 1PHASE 600V 35A

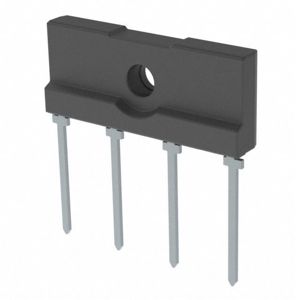

TS6KL60
BRIDGE RECT 1PHASE 600V 6A KBJL

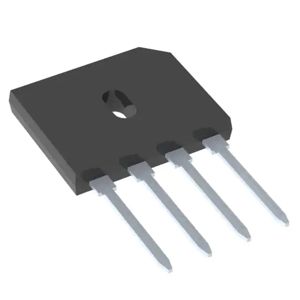

GBU10A-BP
BRIDGE RECT 1PHASE 50V 10A GBU
GBPC2510
BRIDGE RECT 1PHASE 1KV 25A GBPC

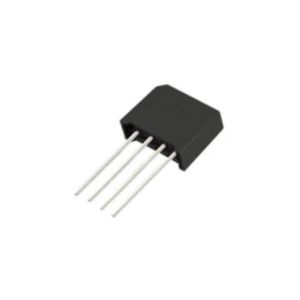

RBU404M
BRIDGE RECT GLASS 400V 4A RBU

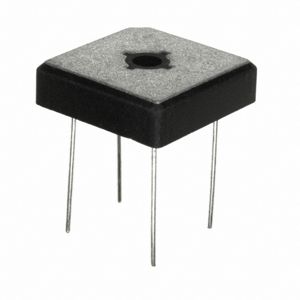

GBPC3504W-G
BRIDGE RECT 1P 400V 35A GBPC-W

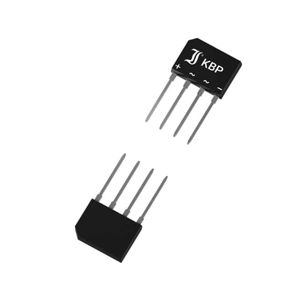

KBP302G
1PH BRIDGE KBP 200V 3A

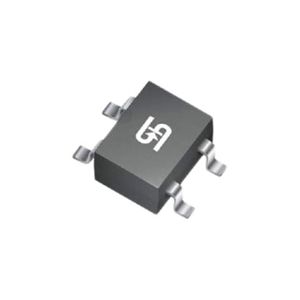

RMB2S
BRIDGE RECT 1P 200V 800MA MBS

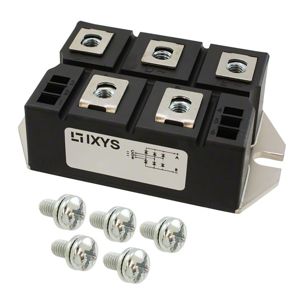

VUO25-08NO8
BRIDGE RECT 3P 800V 25A PWS-E1

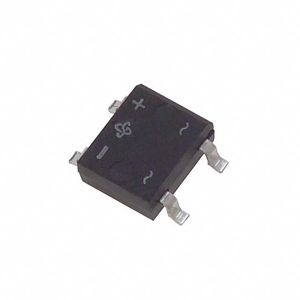

DF005SA-E3/45
BRIDGE RECT 1PHASE 50V 1A DFS

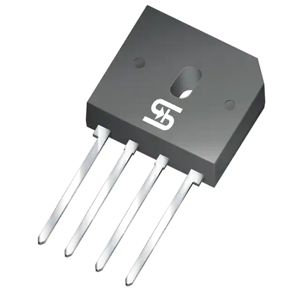

GBU2504
BRIDGE RECT 1PHASE 400V 25A GBU
