Diodes - Bridge Rectifiers

Diodes - Bridge Rectifiers: Classification Introduction

1. Definition of the Category
Diodes - Bridge Rectifiers are essential discrete semiconductor components designed to convert alternating current (AC) to direct current (DC) efficiently. As a specialized subset of diodes, bridge rectifiers integrate four or more diodes in a specific configuration (typically a Graetz circuit) to provide full-wave rectification. This ensures smoother DC output with higher efficiency compared to half-wave rectifiers, making them critical in power supply circuits across industries.

2. Types of Bridge Rectifiers
This category encompasses several key types, each tailored for distinct applications:
- Single-Phase Bridge Rectifiers: Standard for low-to-medium power applications (e.g., consumer electronics, adapters).

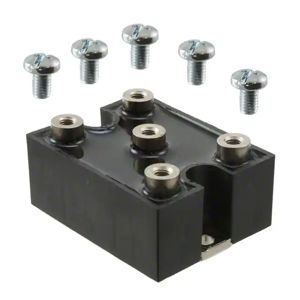

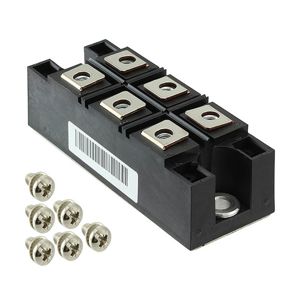

- Three-Phase Bridge Rectifiers: Used in industrial equipment and high-power systems requiring robust AC/DC conversion.

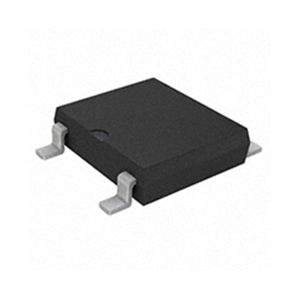

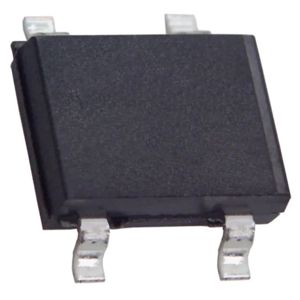

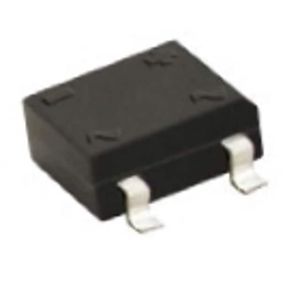

- Surface-Mount (SMD) Bridge Rectifiers: Compact designs for space-constrained PCB applications.

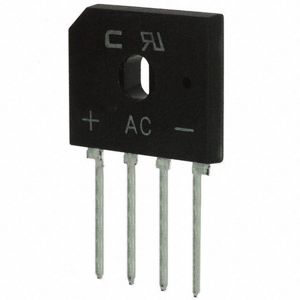

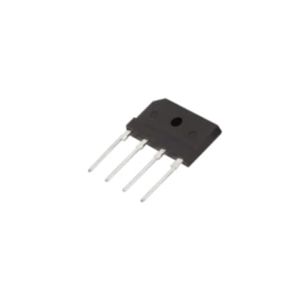

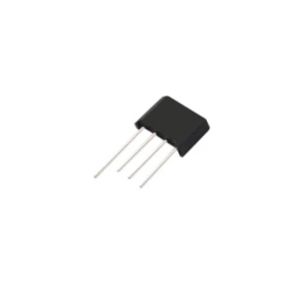

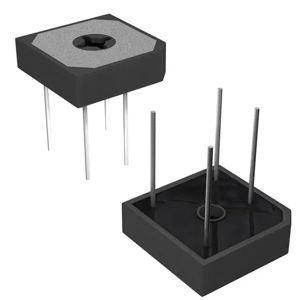

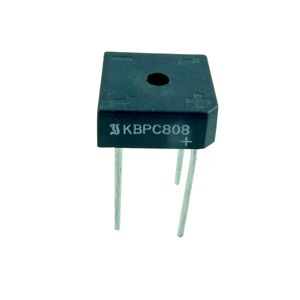

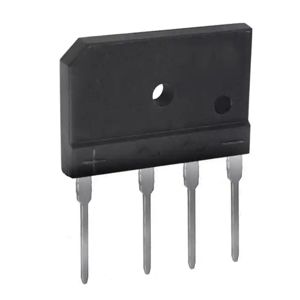

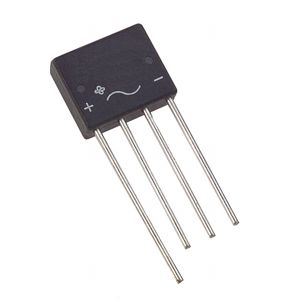

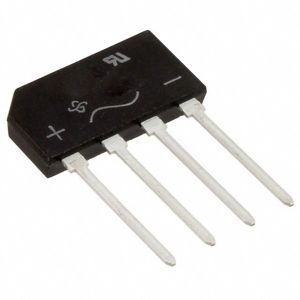

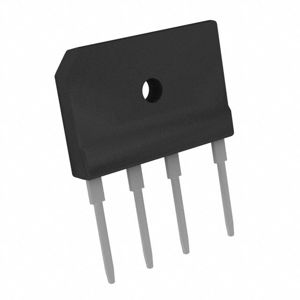

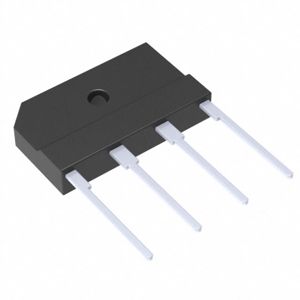

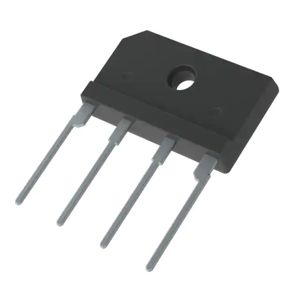

- Through-Hole Bridge Rectifiers: Ideal for high-reliability scenarios, such as automotive or industrial power supplies.
- High-Voltage/High-Current Rectifiers: Engineered for specialized power transmission and heavy machinery.

3. Purchasing Recommendations
When selecting bridge rectifiers, consider the following:
- Voltage/Current Ratings: Ensure the device s maximum repetitive reverse voltage (VRRM) and forward current (IF) exceed your circuit requirements.
- Efficiency & Thermal Performance: Opt for models with low forward voltage drop (V_F) and adequate heat dissipation (e.g., heatsink-compatible packages).
- Certifications & Standards: Prioritize UL, IEC, or AEC-Q101 certified components for safety and reliability.
- Supplier Expertise: Source from vendors offering technical support and lifecycle management, especially for high-volume or mission-critical applications.

Bridge rectifiers are foundational to modern electronics choosing the right type ensures optimal performance, longevity, and cost-effectiveness for your power conversion needs.
