Diodes - Zener - Single: Precision Voltage Regulation for Your Circuit Needs
Definition:
Diodes - Zener - Single are specialized semiconductor devices designed to maintain a stable reference voltage in electronic circuits. Unlike standard diodes, Zener diodes operate in the reverse breakdown region, providing precise voltage regulation and protection against voltage spikes. They are essential components in power supplies, voltage regulators, and surge protection applications.
Types of Products in This Category:
This classification includes a variety of Zener diodes tailored to different voltage and power requirements:
- Voltage Ratings: Ranging from a few volts to several hundred volts, catering to low-voltage and high-voltage applications.
- Power Dissipation: Options include low-power (e.g., 500mW) for signal circuits and high-power (e.g., 5W) for robust power management.
- Packaging: Available in multiple form factors such as DO-41, SOD-123, and SOT-23 for through-hole or surface-mount designs.
- Tolerance Levels: Precision Zeners with tight tolerances (e.g., 1%) for critical applications, and standard tolerances (e.g., 5%) for general use.
Purchasing Recommendations:
When selecting a Zener diode, consider the following to ensure optimal performance:
1. Voltage Requirement: Choose a Zener voltage (Vz) that matches your circuit s regulation needs.
2. Power Rating: Ensure the diode s power dissipation (Pz) exceeds the maximum expected load to avoid overheating.
3. Application Environment: For high-reliability scenarios (e.g., automotive or industrial), opt for diodes with robust thermal and electrical characteristics.
4. Packaging Compatibility: Select a package type that aligns with your PCB design (e.g., SMD for compact layouts).
Zener diodes are indispensable for maintaining voltage stability invest in the right specifications to enhance circuit reliability and longevity.
Filter and sort
Categories

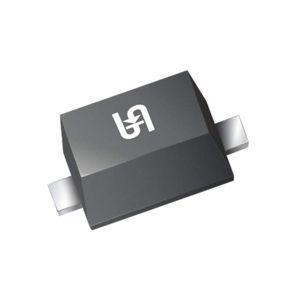

BZT52C56K RKG
DIODE ZENER 56V 200MW SOD523F
TZX2V4A-TR
DIODE ZENER 2.4V 500MW DO35

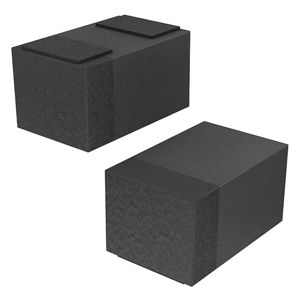

CZRQR27VB-HF
DIODE ZENER 27V 125MW 0402

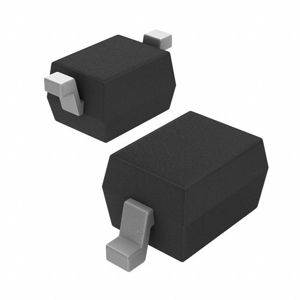

DDZ6V2BS-7
DIODE ZENER 6.2V 200MW SOD323

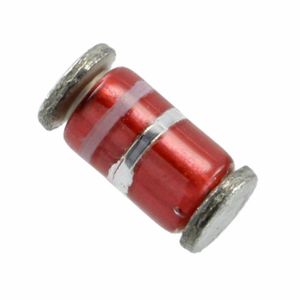

CDLL3021
DIODE ZENER 11V 1W DO213AB
SZBZX84C27ET3G
DIODE ZENER 27V 225MW SOT23-3

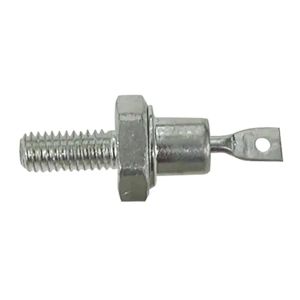

1N3015
DO4 10 WATT ZENER DIODES

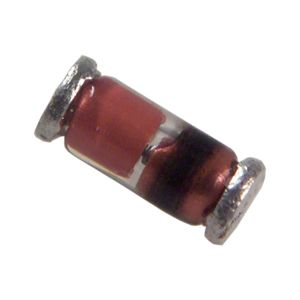

TZM5240B-GS08
DIODE ZENER 10V 500MW SOD80
SML4763-E3/5A
DIODE ZENER 91V 1W DO214AC
BZT52C4V3-G3-08
DIODE ZENER 4.3V 410MW SOD123

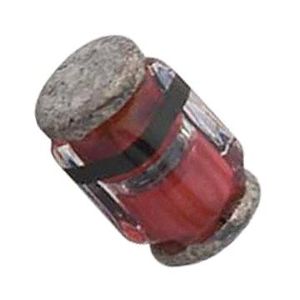

BZM55B30-TR
DIODE ZENER 30V 500MW MICROMELF

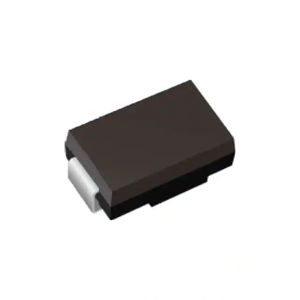

1SMA4739_R1_00001
SURFACE MOUNT SILICON ZENER DIOD

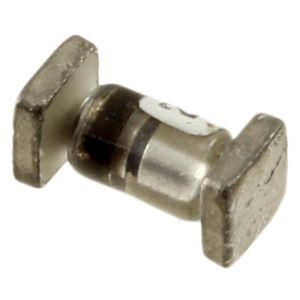

JAN1N6335US
DIODE ZENER 30V 500MW MELF
BZT52C6V2Q-7-F
ZENER DIODE SOD123 T&R 3K

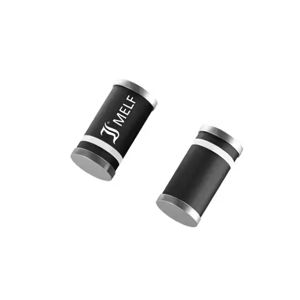

CDLL4477/TR
VOLTAGE REGULATOR

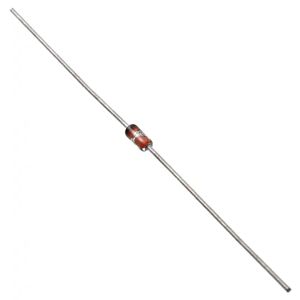

JANTX1N5521D-1/TR
VOLTAGE REGULATOR

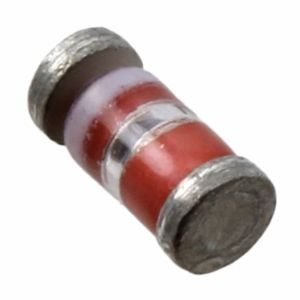

JANTX1N755AUR-1/TR
VOLTAGE REGULATOR

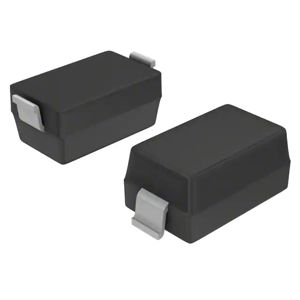

BZT52B12-E3-08
DIODE ZENER 12V 410MW SOD123

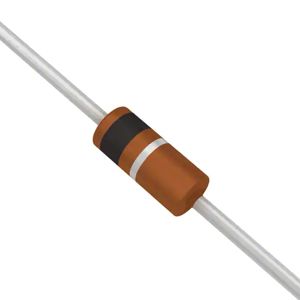

BZX55B18-TAP
DIODE ZENER 18V 500MW DO35

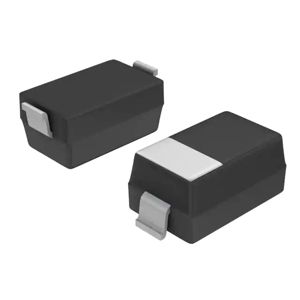

MMSZ5221B_R1_00001
SOD-123, ZENER
