Diodes - Zener - Single

Diodes - Zener - Single: Precision Voltage Regulation for Your Circuit Needs

Definition:
Diodes - Zener - Single are specialized semiconductor devices designed to maintain a stable reference voltage in electronic circuits. Unlike standard diodes, Zener diodes operate in the reverse breakdown region, providing precise voltage regulation and protection against voltage spikes. They are essential components in power supplies, voltage regulators, and surge protection applications.

Types of Products in This Category:
This classification includes a variety of Zener diodes tailored to different voltage and power requirements:
- Voltage Ratings: Ranging from a few volts to several hundred volts, catering to low-voltage and high-voltage applications.
- Power Dissipation: Options include low-power (e.g., 500mW) for signal circuits and high-power (e.g., 5W) for robust power management.

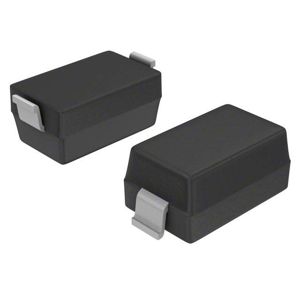

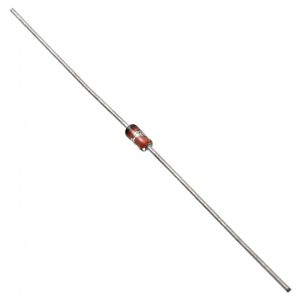

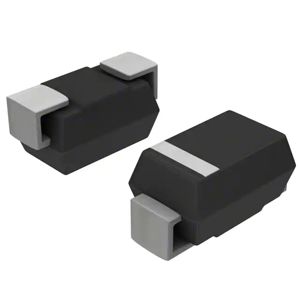

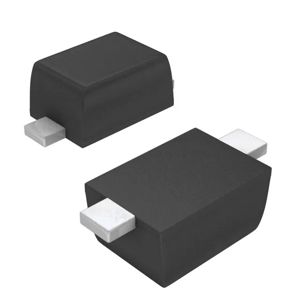

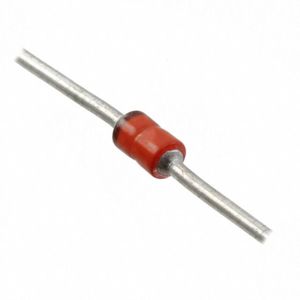

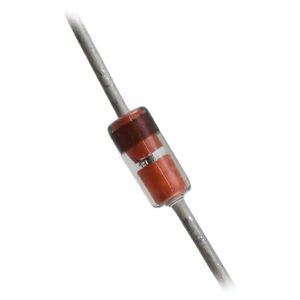

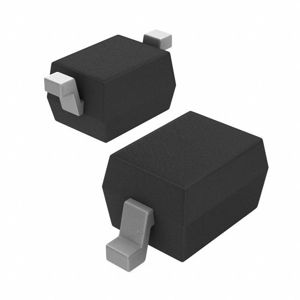

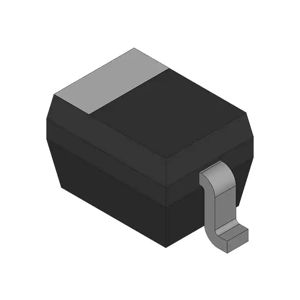

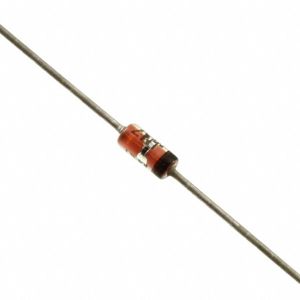

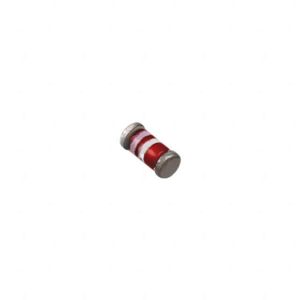

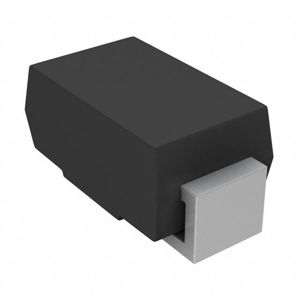

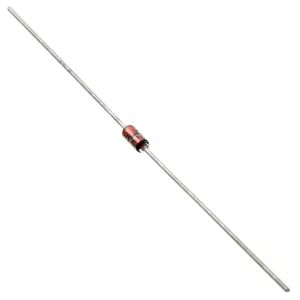

- Packaging: Available in multiple form factors such as DO-41, SOD-123, and SOT-23 for through-hole or surface-mount designs.
- Tolerance Levels: Precision Zeners with tight tolerances (e.g., 1%) for critical applications, and standard tolerances (e.g., 5%) for general use.

Purchasing Recommendations:
When selecting a Zener diode, consider the following to ensure optimal performance:
1. Voltage Requirement: Choose a Zener voltage (Vz) that matches your circuit s regulation needs.
2. Power Rating: Ensure the diode s power dissipation (Pz) exceeds the maximum expected load to avoid overheating.
3. Application Environment: For high-reliability scenarios (e.g., automotive or industrial), opt for diodes with robust thermal and electrical characteristics.
4. Packaging Compatibility: Select a package type that aligns with your PCB design (e.g., SMD for compact layouts).

Zener diodes are indispensable for maintaining voltage stability invest in the right specifications to enhance circuit reliability and longevity.
