Display Modules - LED Character and Numeric

Display Modules - LED Character and Numeric

Definition:
Display Modules - LED Character and Numeric are optoelectronic components designed to visually display alphanumeric characters, symbols, or digits using light-emitting diodes (LEDs). These modules are widely used in applications requiring clear, bright, and energy-efficient displays, such as digital clocks, industrial control panels, consumer electronics, and instrumentation.

Types of LED Character and Numeric Display Modules:

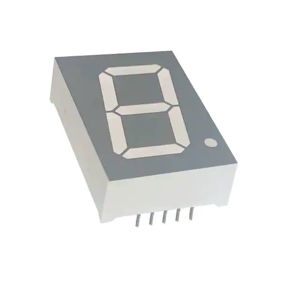

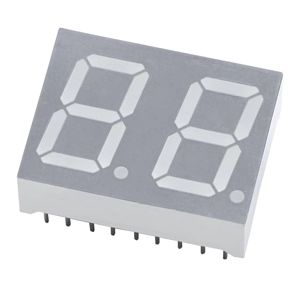

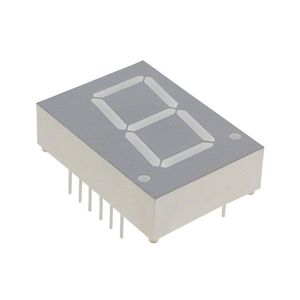

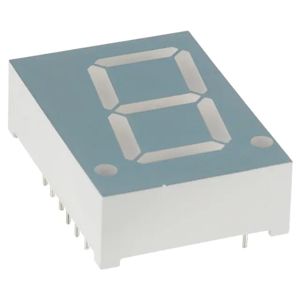

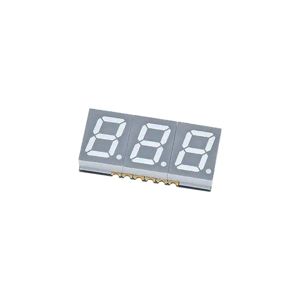

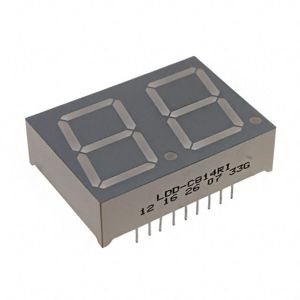

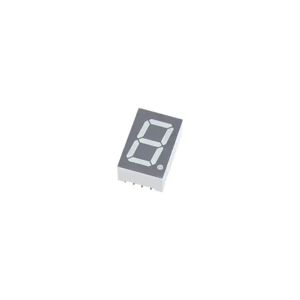

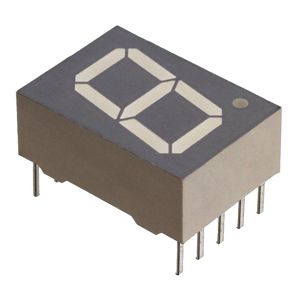

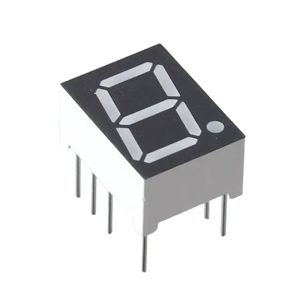

1. 7-Segment Displays: The most common type, featuring seven LED segments that form numerals (0-9) and some letters by illuminating specific combinations.
2. 14-Segment & 16-Segment Displays: Enhanced versions capable of displaying a broader range of alphanumeric characters.
3. Dot Matrix Displays: Comprising a grid of LEDs to form customizable characters or simple graphics.
4. Specialty Displays: Tailored for unique applications, such as large-digit displays for scoreboards or high-brightness modules for outdoor use.

Purchasing Recommendations:
- Application Fit: Choose between common-anode or common-cathode configurations based on circuit design.
- Viewing Angle & Brightness: Opt for high-brightness LEDs with wide viewing angles for readability in varied lighting conditions.
- Size & Resolution: Match the display size and segment density to your readability and space constraints.
- Interface Compatibility: Ensure compatibility with your driver circuitry (e.g., TTL, CMOS, or microcontroller interfaces).
- Durability: For harsh environments, select modules with robust housings and extended temperature ranges.

Ideal for engineers and designers, these LED modules combine reliability with versatility, making them a cornerstone of optoelectronic display solutions.

Found 4916 items
