FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

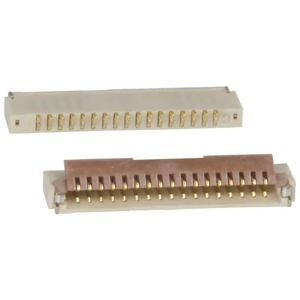

FH19C-17S-0.5SH(10)
CONN FFC BOTTOM 17POS 0.50MM R/A

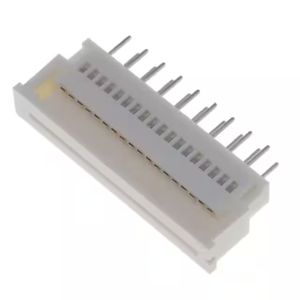

0039532185
CONN FFC VERT 18POS 1.25MM PCB

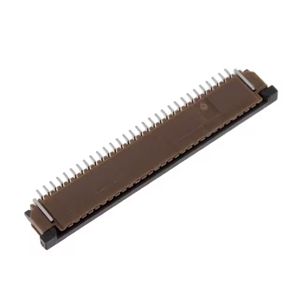

SFW30R-1STE9LF
CONN FFC BOTTOM 30POS 1.00MM R/A

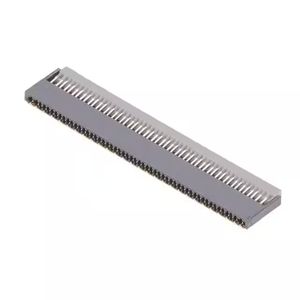

5047545100
CONN FPC 51POS .3MM SMD R/A

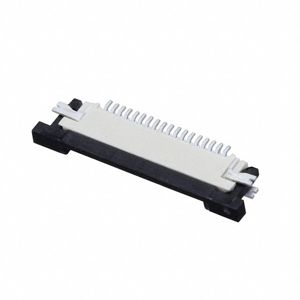

687118183622
CONN FFC TOP 18POS 0.5MM SMD R/A
1-1734742-8
CONN FFC VERT 18POS 0.50MM SMD
CF20321D0R0-NH
CF20 SERIES 0.50MM(.020") ZIF SI
686126188622
WR-FPC_1.00 MM SMT HORIZONTAL LI

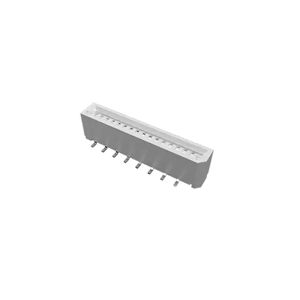

F52L-1A7A1-11005
FLEX CONNECTOR, 1.00MM PITCH, HE

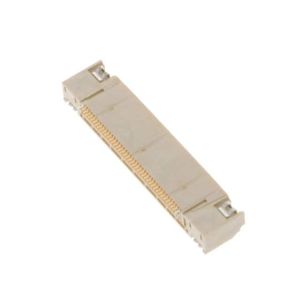

046810640001846+
0.5MM PITCH - 40 POS - RT ANGLE
SFV24R-2STBE1HLF
CONN FFC TOP 24POS 0.5MM SMD R/A

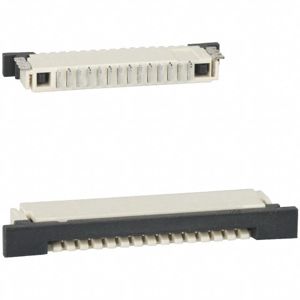

1-487952-4
CONN FPC BOTTOM 14POS 1.00MM R/A
CF07111D0R0-NH
CF07 SERIES 1.00MM(.039") ZIF SI

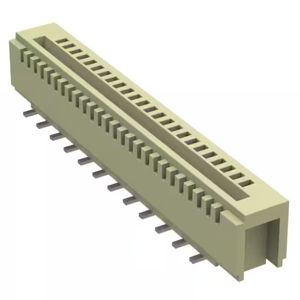

CF16241M0R0-NH
CF16 SERIES 1.00MM(.039") LIF TO

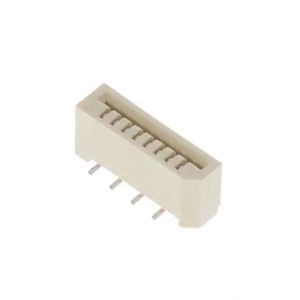

686108188822
WR-FPC_1.00 MM SMT VERTICAL LIF

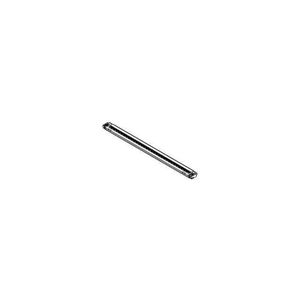

104083-9617
0.5 FPC FRONTFLIP 96P CONN. ASSY

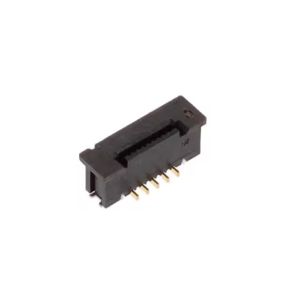

1734742-9
.5 FPC VT ZIF TYPE-A 9 CONT

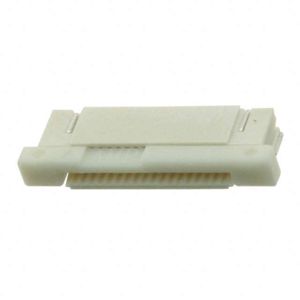

1-1734592-8
CONN FPC BOTTOM 18POS 0.50MM R/A

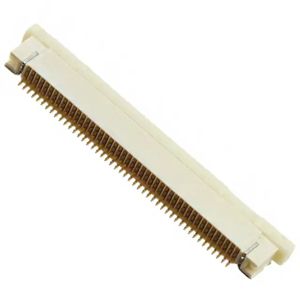

4-1734592-6
CONN FPC BOTTOM 46POS 0.50MM R/A

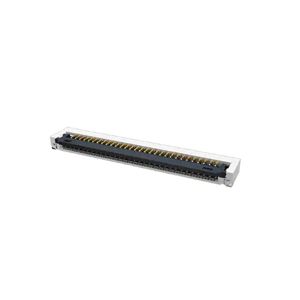

F51L-1A7H1-11028
FLEX CONNECTOR, 1.00MM PITCH, HE
