Gas Discharge Tube Arresters (GDT)

Gas Discharge Tube Arresters (GDT) Circuit Protection Solutions

Definition:
Gas Discharge Tube Arresters (GDTs) are specialized circuit protection devices designed to safeguard sensitive electronic equipment from voltage surges and transient overvoltages. Utilizing an inert gas-filled chamber, GDTs provide a high-impedance state under normal conditions but rapidly switch to a low-impedance state when exposed to excessive voltage, diverting harmful energy away from critical components. As a key subcategory of Circuit Protection, GDTs are widely used in telecommunications, power distribution, and industrial applications where robust surge suppression is essential.

Types of GDT Products:

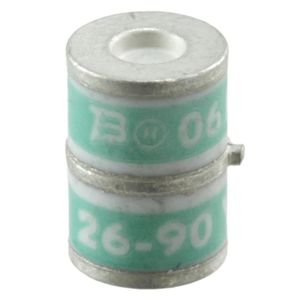

1. 2-Electrode GDTs Basic surge protection for low-voltage circuits, commonly used in telecom and signal lines.

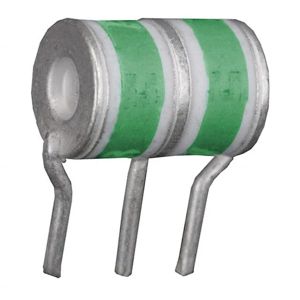

2. 3-Electrode GDTs Enhanced protection for balanced lines (e.g., DSL, Ethernet), offering symmetrical clamping.

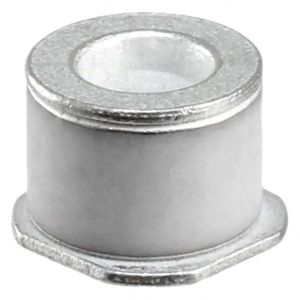

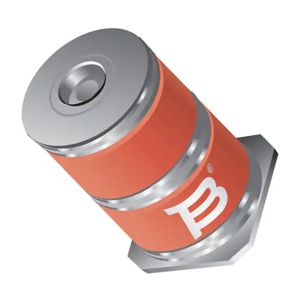

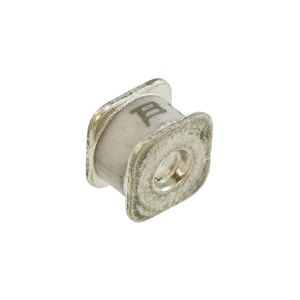

3. Surface-Mount (SMD) GDTs Compact designs for modern PCB applications, ensuring space-efficient surge protection.
4. High-Current GDTs Built for heavy-duty industrial systems, capable of handling extreme surge currents (e.g., lightning strikes).

Purchasing Recommendations:
- Voltage Rating: Select a GDT with a DC spark-over voltage slightly above the operating voltage of your system.
- Current Capacity: Ensure the GDT s surge current rating matches or exceeds expected transient conditions (e.g., 5kA 20kA).
- Response Time: Opt for fast-acting GDTs (<100ns) for sensitive electronics.
- Certifications: Look for compliance with IEC 61643, UL 1449, or Telcordia GR-1089 standards.

Ideal for engineers designing surge protection modules (SPDs), GDTs offer reliable, long-lasting defense against electrical disturbances. Pair them with other circuit protection devices (e.g., TVS diodes) for layered protection strategies.
