Definition:
Interface - Signal Buffers, Repeaters, and Splitters are specialized Integrated Circuits (ICs) designed to enhance, distribute, and maintain signal integrity in electronic systems. These components play a critical role in ensuring reliable data transmission by amplifying weak signals (buffers), extending signal reach over long distances (repeaters), or splitting a single signal into multiple outputs (splitters). They are essential in applications where signal degradation, noise, or impedance mismatches could compromise performance.
Types of Products in This Category:
1. Signal Buffers: Isolate and amplify input signals to drive higher loads without distortion. Common types include voltage buffers, current buffers, and bidirectional buffers.
2. Signal Repeaters: Regenerate signals to extend transmission range, often used in high-speed data lines (e.g., USB, HDMI, PCIe).
3. Signal Splitters: Divide a single input signal into multiple identical outputs, ideal for multi-drop bus systems or clock distribution networks.
4. Integrated Solutions: Combination ICs that merge buffering, repeating, or splitting functionalities for compact designs.
Purchasing Recommendations:
- Match Specifications: Ensure the IC s voltage levels, data rates, and protocol compatibility (e.g., I2C, SPI, LVDS) align with your system requirements.
- Signal Integrity: For high-frequency applications, prioritize low-skew, low-jitter, and impedance-matched components.
- Package & Power: Select packages (e.g., SOIC, QFN) that fit your PCB layout and power constraints.
- Reliability: Opt for industrial-grade ICs with extended temperature ranges if used in harsh environments.
Ideal for applications like networking equipment, automotive systems, and industrial automation, these ICs safeguard signal quality while optimizing system performance. Choose trusted manufacturers to ensure longevity and compliance with industry standards.
Filter and sort
Categories
SN65LVDS100D
IC REDRIVER 1CH 2GBPS 8SOIC

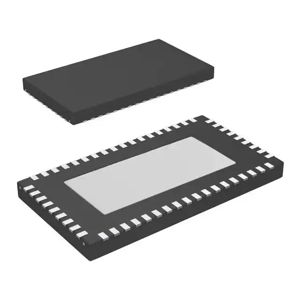

DS100KR800SQE/NOPB
IC REDRIVER 8CH 10.3GBPS 54WQFN

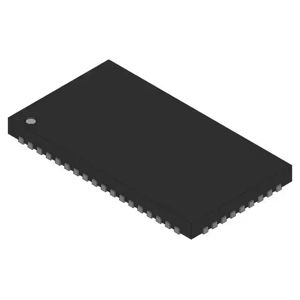

DS125BR800ANJYR
DS125BR800A LOW-POWER 12.5-GBPS

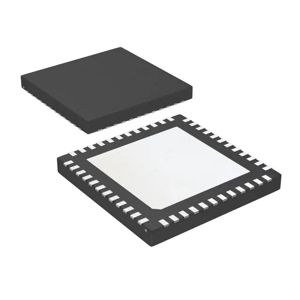

DS15MB200TSQ/NOPB
IC MULTIPLEXER LVDS 4CH 48WQFN
PCA9515ADGKT
IC REDRIVER I2C 1CH 8VSSOP

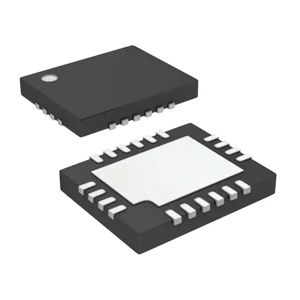

LTC4332CUFD#TRPBF
SPI EXTEND OVER RUGGED DIFFERENT

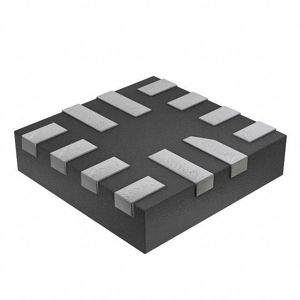

TUSB216RWBRQ1
USB 2.0 HIGH SPEED SIGNAL CONDIT
SN65LVDS105D
IC MULTIPLEXER 1CH 16SOIC
TUSB501TDRFRQ1
IC REDRIVER USB 3.0 8WSON
SN65LVDS19DRFT
IC REDRIVER 1CH 2GBPS 8WSON
LTC4301LCMS8#TRPBF
IC REDRIVER I2C HOTSWAP 8MSOP

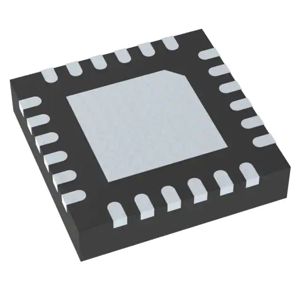

SN65LVPE502RGET
IC REDRIVER USB 3.0 2CH 24VQFN

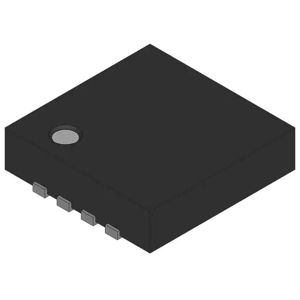

DS90LV001TLD-NS
DS90LV001 800-MBPS LVDS BUFFER

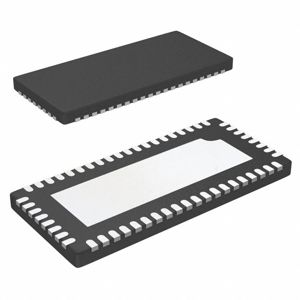

PI2EQX5964ZFEX
IC REDRIVER PCIE 4CH 56TQFN
DS280MB810ZBLT
IC REDRIVER 28GBPS 135NFBGA
LTC4311ISC6#TRMPBF
IC ACCELERATOR I2C 1CH SC70-6
PCA9519BS,118
N BUFFER, REDRIVER 4 CHANNEL 400

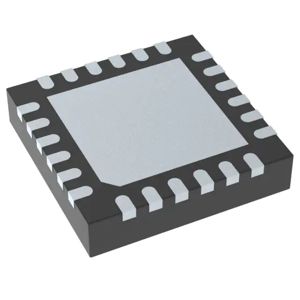

DS125BR111RTWR
IC REPEATER/EQUALIZR 2CH24WQFN
PCA9515ADT
IC REDRIVER I2C 1CH 400KHZ 8SOIC

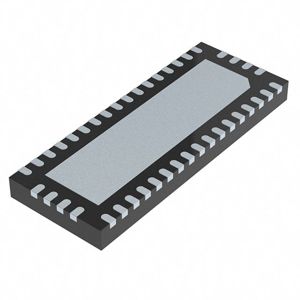

PI3EQX1004B1ZHEX
USB3 EQX V-QFN3590-42
