Definition & Overview
LEDs (Light Emitting Diodes) under the Circuit Board Indicators, Arrays, Light Bars, and Bar Graphs category are essential optoelectronic components designed for visual signaling, status indication, and illumination in electronic circuits. These LEDs are engineered for integration into PCBs (Printed Circuit Boards) and provide efficient, low-power solutions for applications requiring clear visibility, compact design, and reliability.
Types of Products in This Category
1. Circuit Board Indicators: Discrete LEDs used for power status, activity alerts, or operational feedback in devices like consumer electronics, industrial controls, and automotive dashboards.
2. LED Arrays: Multi-LED modules arranged in clusters or matrices, ideal for backlighting, decorative lighting, or multi-segment displays.
3. Light Bars: Linear LED assemblies offering uniform illumination for instrument panels, signage, or task lighting in medical and retail equipment.
4. Bar Graph LEDs: Segmented displays for analog-level visualization (e.g., audio VU meters, battery level indicators), available in single or multi-color options.
Key Features & Applications
- High Brightness & Efficiency: Low power consumption with high luminous intensity for energy-sensitive designs.
- Compact Form Factors: SMD (Surface Mount) and through-hole configurations for flexible PCB integration.
- Customization: Options include varying colors (RGB, monochromatic), sizes, and viewing angles.
- Industries Served: Automotive, industrial automation, consumer electronics, and IoT devices.
Purchasing Recommendations
1. Purpose-Driven Selection: Match LED type to application needs e.g., bar graphs for level monitoring, light bars for even illumination.
2. Technical Specifications: Verify forward voltage, current ratings, and luminosity (mcd) to ensure compatibility with your circuit design.
3. Environmental Factors: For harsh environments (e.g., outdoor/automotive), prioritize LEDs with high IP ratings or extended temperature ranges.
4. Supplier Reliability: Source from vendors offering RoHS compliance, datasheets, and bulk pricing for scalable projects.
Optimize your designs with precision-engineered LEDs combining visibility, durability, and energy efficiency for seamless integration into modern optoelectronic systems.
Filter and sort
Categories

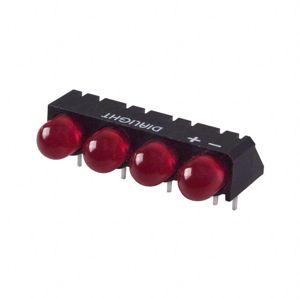

5501107004F
LED 5MM QUAD LOW CUR RED PC MNT

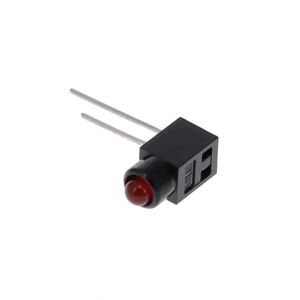

0035.1350
SRL LED - HOLDER RED

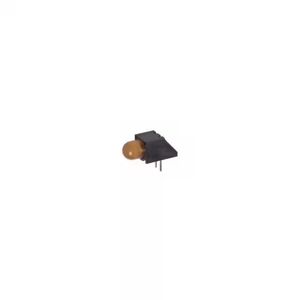

550-2308F
5 MM CBI

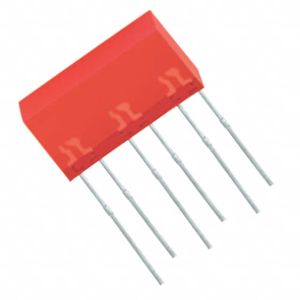

XEUR23D
LIGHTBAR 5X16MM RED RED DIFF
568-2242-22-24F
CBI 3MM QUAD X 4 BKLIT G-G-G-G

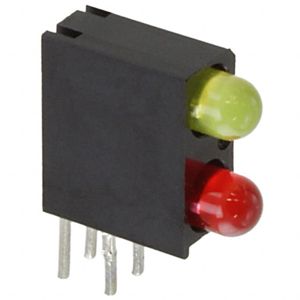

5530131F
LED CBI 3MM BI-LVL YELLOW/RED
5510502F
LED CBI 3MM RED 60DEG RA 5V RES

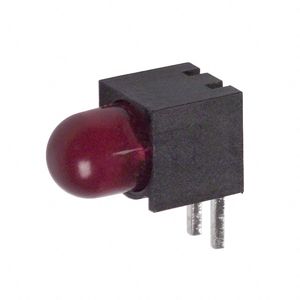

5500505F
LED 5MM 5V RT ANGLE RED PC MNT
XPV1LUY11D
LED 1POS YELLOW DIFFUSED CBI

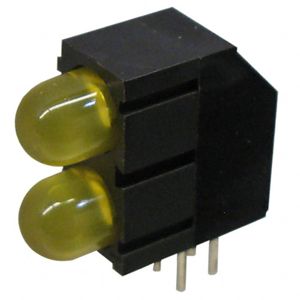

XVH2LUY50D
LED 5MM YELLOW DIFF BI-LEVEL CBI

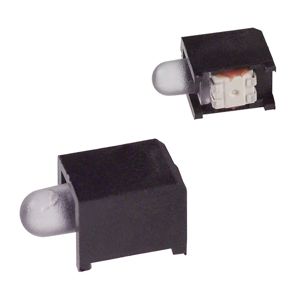

5912701848F
LED SMD PRISM 3MM 590NM YLW

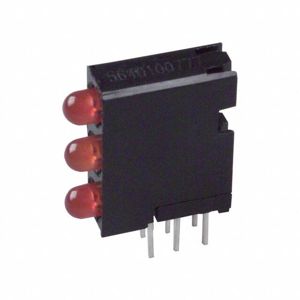

5640100777F
LED 3HI 3MM ORANGE PC MNT
5552009F
LED 2MM 5V RT ANGLE RED PCMNT

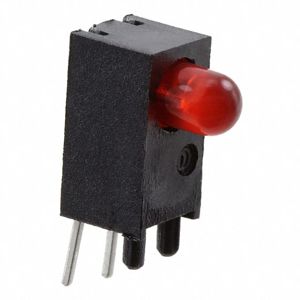

5510503F
LED CBI 3MM RED DIFF 5V .250

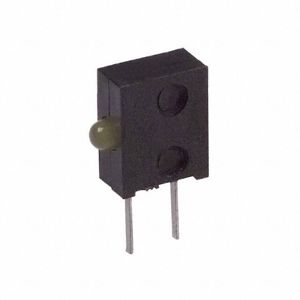

HLMP-6400-F0010
LED DOME 583NM YLW DIFF RA AXIAL

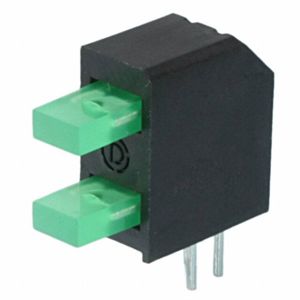

5670122F
LED 2X4MM BI-LVL GN,GN TINT DIFF

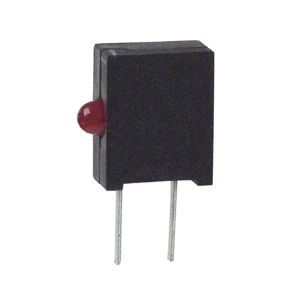

5552008F
LED 2MM 24V RT ANGLE RED PCMNT

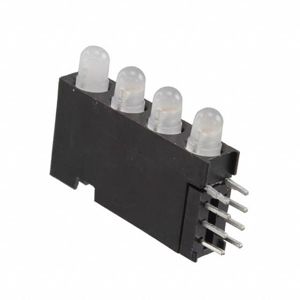

5680701823F
LED CBI 3MM 4X1 R/G,Y/G,Y/G,Y/G

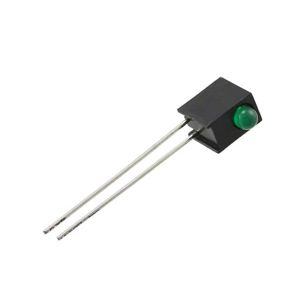

MV5464MP4B
LED SS GREEN DIFF RA PCB 3MM
NTE3116
10-LED GRN BAR
