Definition:
Logic Buffers, Drivers, Receivers, and Transceivers are essential digital integrated circuits (ICs) designed to manage signal integrity, amplification, and data transmission between components in electronic systems. Buffers stabilize and isolate signals, drivers enhance current/voltage to control loads (e.g., LEDs or motors), while receivers and transceivers facilitate bidirectional communication across interfaces like UART, SPI, or I C. These ICs ensure robust data flow in high-speed or noise-prone environments.
Product Types:
This category includes:
- Buffers/Line Drivers: Voltage-level shifters (e.g., 74HC125) for signal conditioning.
- Bus Transceivers: Bidirectional ICs (e.g., SN74LVC8T245) for multi-protocol support.
- MOSFET/High-Side Drivers: Power gate drivers (e.g., IR2110) for switching applications.
- Differential Receivers: RS-485/422-compatible ICs (e.g., MAX485) for long-distance communication.
- Automotive-Grade ICs: AEC-Q100 certified for vehicular systems.
Purchasing Guidance:
1. Signal Requirements: Match voltage levels (e.g., 3.3V vs. 5V) and speed (e.g., 100Mbps vs. 1Gbps).
2. Interface Protocol: Select ICs compatible with your system s standard (e.g., CAN, LVDS).
3. Robustness: For industrial/automotive use, prioritize ESD protection and wide temperature ranges.
4. Packaging: Consider space-constrained designs (e.g., SOIC, QFN).
5. Supplier Reputation: Source from trusted distributors (e.g., Texas Instruments, NXP) to avoid counterfeit parts.
Optimize system performance with precision-selected logic ICs critical for modern PCBs, IoT devices, and industrial automation.
Filter and sort
Categories
SN74ALVTH162827LR
IC BUFFER NON-INVERT 3.6V 56SSOP

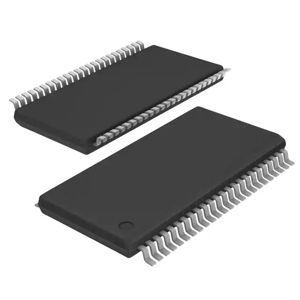

SN74AVC16244DGVR
IC BUF NON-INVERT 3.6V 48TVSOP

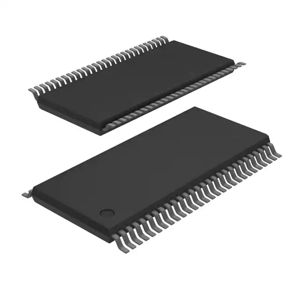

SN74ABT16543DLR
IC TXRX NON-INVERT 5.5V 56SSOP
SN74ALS35AD
IC BUF NON-INVERT 5.5V 14SOIC

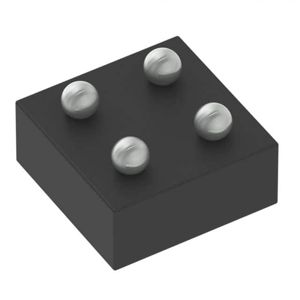

SN74LVC1G17YZVR
IC BUF NON-INVERT 5.5V 4DSBGA
74VHCT541D-Q100J
IC BUFFER NON-INVERT 5.5V 20SO
SN74LVTH244APWRG4
IC BUF NON-INVERT 3.6V 20TSSOP

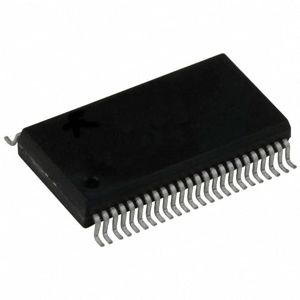

SN74LVT16245ADGGR
IC TXRX NON-INVERT 3.6V 48TSSOP

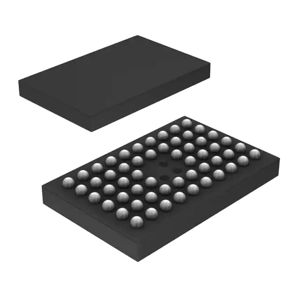

SN74AVC16244GQLR
IC BUFFER NON-INVERT 3.6V 56BGA
SN74LVT245BPW
IC TXRX NON-INVERT 3.6V 20TSSOP
SN74HCT640N
BUS DRIVER/TRANSCEIVER, 8-BIT
GTL2034PW,118
IC BUF NON-INVERT 3.6V 14TSSOP
SN74BCT29864BNT
IC TRANSCEIVER INVERT 5.5V 24DIP

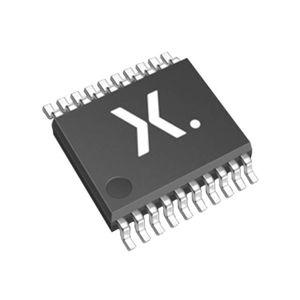

74LVT244APW,118
IC BUF NON-INVERT 3.6V 20TSSOP
SN54S241/BRA
54S241 - BUS DRIVER, DUAL 4-BIT,
SN74LV07APW
IC BUF NON-INVERT 5.5V 14TSSOP
74ALVT162821DGG112
BUS DRIVER, ALVT SERIES, 10-BIT
SN74AUP2G17DCKR
IC BUF NON-INVERT 3.6V SC70-6
SN74ALS620AN
IC TRANSCEIVER INVERT 5.5V 20DIP
TC7SH34F,LJ(CT
IC BUFFER NON-INVERT 5.5V SMV
