Definition:
Logic Gates and Inverters are fundamental components within the Integrated Circuits (ICs) category, designed to perform basic logical operations in digital circuits. These devices process binary signals (0s and 1s) to execute functions such as AND, OR, NOT, NAND, NOR, and XOR, forming the backbone of computational and decision-making systems in electronics.
Product Types:
This classification encompasses a variety of logic ICs, including:
- Basic Gates (AND, OR, NOT, etc.): Single-function chips for simple logic operations.
- Universal Gates (NAND, NOR): Versatile components capable of constructing any other logic function.
- Inverters (NOT Gates): Devices that output the inverse of their input signal.
- Schmitt Trigger Gates: Noise-resistant variants with hysteresis for signal conditioning.
- Programmable Logic Devices (PLDs): Configurable ICs for custom logic implementations.
Available in standard CMOS, TTL, and low-voltage (LVCMOS) technologies to suit diverse voltage and power requirements.
Purchasing Recommendations:
1. Match Technology to System Requirements: Select TTL for legacy systems or CMOS for low-power designs.
2. Consider Propagation Delay: Critical for high-speed applications; opt for advanced series like 74HC or 74LS.
3. Verify Voltage Compatibility: Ensure logic levels (e.g., 3.3V vs. 5V) align with your circuit.
4. Evaluate Packaging: Choose DIP for prototyping or surface-mount (SOIC, SOT-23) for compact PCBs.
5. Quality Assurance: Source from reputable distributors to avoid counterfeit components in critical projects.
Ideal for embedded systems, computing hardware, and automation, Logic Gates and Inverters ensure reliable digital signal processing. Partner with trusted suppliers for components that meet industry standards (e.g., JEDEC, RoHS).
Filter and sort
Categories
74LVT02PW,118
IC GATE NOR 4CH 2-INP 14TSSOP
MC74VHCT04ADTR2
IC INVERTER 6CH 1-INP 14TSSOP
74ABT20DB,112
NAND GATE, ABT SERIES, 2 FUNC, 4
SN74LVC1G00DBVT
IC GATE NAND 1CH 2-INP SOT23-5
74LV27D,112
IC GATE NOR 3CH 3-INP 14SO
NC7SVL32FHX
IC GATE OR 1CH 2-INP 6MICROPAK2
SN74AS20N
IC GATE NAND 2CH 4-INP 14DIP
SN74AUC1G32YZPR
IC GATE OR 1CH 2-INP 5DSBGA
SN74LV1T04DBVR
IC INVERTER 1CH 1-INP SOT23-5
SN74S08N
IC GATE AND 4CH 2-INP 14DIP

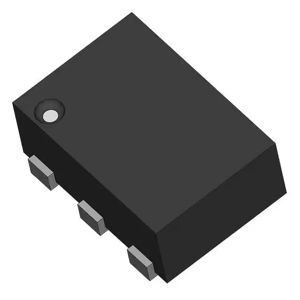

74AUP1G132GS,132
74AUP1G132 - LOW-POWER 2-INPUT N

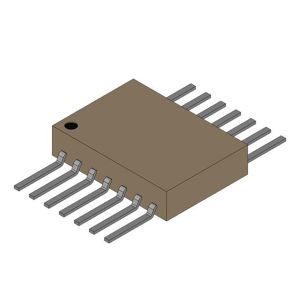

SNJ54LS37W
54LS37 QUADRUPLE 2-INPUT POSITIV
SN74LVC3GU04YZPR
IC INVERTER 3CH 3-INP 8DSBGA
SN74LVC1G32MDBVREP
IC GATE OR 1CH 2-INP SOT23-5

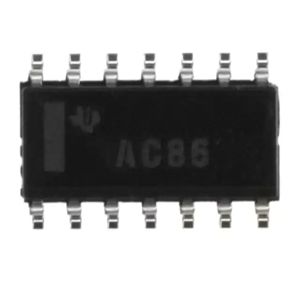

SN74AHC05DBR
IC INVERTER OD 6CH 1-INP 14SSOP
NC7SZ08P5X
IC GATE AND 1CH 2-INP SC70-5

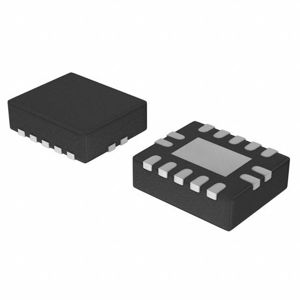

74LVC06ABQ-Q100X
IC INVERTER OD 6CH 1-IN 14DHVQFN

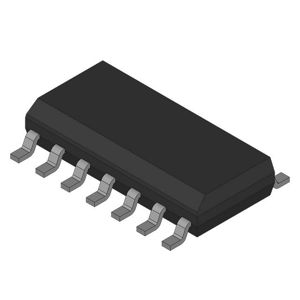

74LV132D/C4118
NAND GATE, LV/LV-A/LVX/H SERIES
MC74LCX14MELG
IC INVERTER 6CH 1-INP SOEIAJ

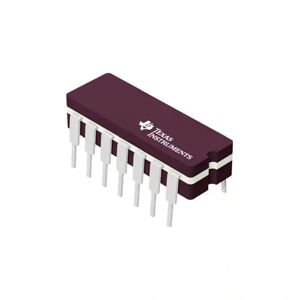

SN74ACT00N
IC GATE NAND 4CH 2-INP 14DIP
