Definition:
Logic Gates and Inverters are fundamental components within the Integrated Circuits (ICs) category, designed to perform basic logical operations in digital circuits. These devices process binary signals (0s and 1s) to execute functions such as AND, OR, NOT, NAND, NOR, and XOR, forming the backbone of computational and decision-making systems in electronics.
Product Types:
This classification encompasses a variety of logic ICs, including:
- Basic Gates (AND, OR, NOT, etc.): Single-function chips for simple logic operations.
- Universal Gates (NAND, NOR): Versatile components capable of constructing any other logic function.
- Inverters (NOT Gates): Devices that output the inverse of their input signal.
- Schmitt Trigger Gates: Noise-resistant variants with hysteresis for signal conditioning.
- Programmable Logic Devices (PLDs): Configurable ICs for custom logic implementations.
Available in standard CMOS, TTL, and low-voltage (LVCMOS) technologies to suit diverse voltage and power requirements.
Purchasing Recommendations:
1. Match Technology to System Requirements: Select TTL for legacy systems or CMOS for low-power designs.
2. Consider Propagation Delay: Critical for high-speed applications; opt for advanced series like 74HC or 74LS.
3. Verify Voltage Compatibility: Ensure logic levels (e.g., 3.3V vs. 5V) align with your circuit.
4. Evaluate Packaging: Choose DIP for prototyping or surface-mount (SOIC, SOT-23) for compact PCBs.
5. Quality Assurance: Source from reputable distributors to avoid counterfeit components in critical projects.
Ideal for embedded systems, computing hardware, and automation, Logic Gates and Inverters ensure reliable digital signal processing. Partner with trusted suppliers for components that meet industry standards (e.g., JEDEC, RoHS).
Filter and sort
Categories
DM74ALS133N
IC GATE NAND 1CH 13-INP 16DIP
74LCX32FT(AJ)
IC GATE OR 4CH 2-INP 14TSSOPB
M74HC04YRM13TR
IC INVERTER 6CH 1-INP 14SO
CD4009UBF3A
CD4009UB-MIL CMOS HEX INVERTING

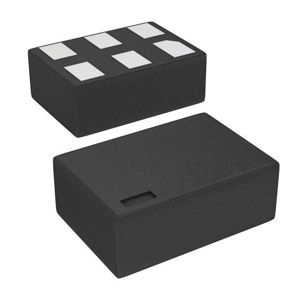

NC7WZ14L6X
IC INVERTER 2CH 2-INP 6MICROPAK
5962-8954702CA
SN54ACT08 QUADRUPLE 2-INPUT POSI

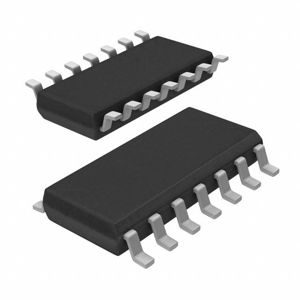

74HC7266D,652
IC GATE XNOR 4CH 2-INP 14SO
54LS08LMQB
AND GATE, LS SERIES

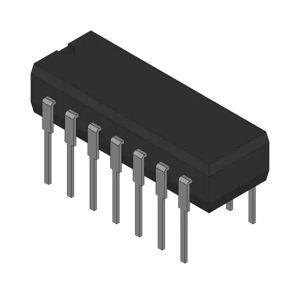

5962-9682601QCA
SN54AHCT32 QUADRUPLE 2-INPUT POS

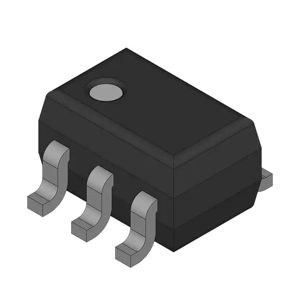

NC7SV38P5X
NAND GATE, HC/UH SERIES, 1 FUNC,

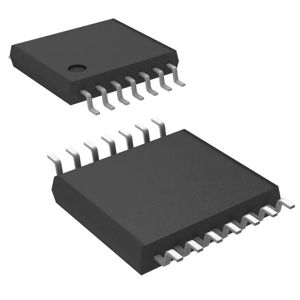

NLV74VHC08DTRG
IC GATE AND 4CH 2-INP 14TSSOP
SN74LVC00AQPWRG4Q1
IC GATE NAND 4CH 2-INP 14TSSOP

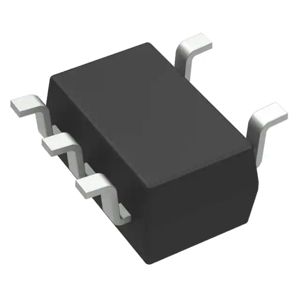

MC74VHC1GT14DTT1
IC INVERT SGL SCHMTT TTL 5TSOP
74LVC2GU04GN,132
IC INVERTER 2CH 2-INP 6XSON
SN74AHC32PW
IC GATE OR 4CH 2-INP 14TSSOP
SN74HC86N
IC GATE XOR 4CH 2-INP 14DIP

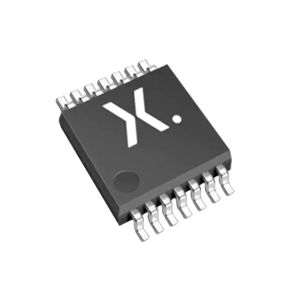

74VHCT02PW-Q100J
IC GATE NOR 4CH 2-INP 14TSSOP
SN74LVU04AQPWRG4Q1
IC INVERTER 6CH 1-INP 14TSSOP

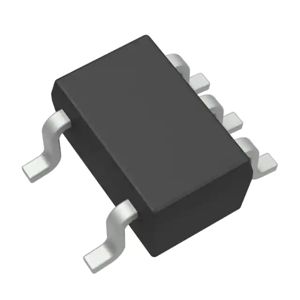

SN74AUC1G02DCKR
IC GATE NOR 1CH 2-INP SC70-5

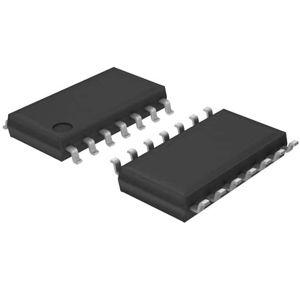

SN74AHC14NSR
IC INVERT SCHMITT 6CH 1-IN 14SOP
