Logic - Latches: Essential Components for Digital Circuit Design
Definition:
Logic Latches are fundamental digital integrated circuits (ICs) designed to store and maintain a binary state (0 or 1) in electronic systems. As a subcategory of Logic under Integrated Circuits (ICs), latches serve as basic memory elements, capturing and holding data until explicitly changed. They are widely used in sequential logic circuits, enabling temporary data retention for synchronization, control, and state management in complex systems.
Types of Logic Latches:
1. SR Latches (Set-Reset): The simplest type, using two inputs (Set and Reset) to control the output state.
2. D Latches (Data): Features a single data input (D) and a control signal (Enable) to capture and hold the input value.
3. Transparent Latches: Outputs follow inputs while enabled, "latching" the value when disabled.
4. Gated Latches: Include an additional enable gate for synchronized operation in clocked systems.
Purchasing Recommendations:
- Application Alignment: Choose SR latches for basic control circuits, D latches for data storage, and gated variants for clock-dependent designs.
- Performance Metrics: Prioritize propagation delay, power consumption, and voltage compatibility (e.g., 3.3V vs. 5V) based on system requirements.
- Packaging: Select surface-mount (SMD) or through-hole packages (DIP) per assembly constraints.
- Reliability: Opt for industrial-grade latches for harsh environments and automotive/medical certifications (AEC-Q100, ISO 13485) if needed.
Ideal for registers, buffer storage, and real-time control, Logic Latches ensure robust digital system performance. Evaluate datasheets and supplier credibility to balance cost and functionality.
Filter and sort
Categories
SN74ACT373DW
IC OCT TRANSP D-TYP LATCH 20SOIC

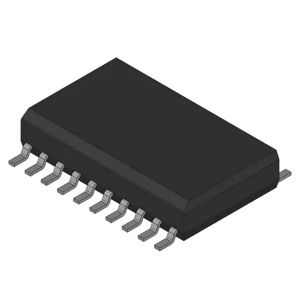

CD74ACT533M
8-BIT DRIVER

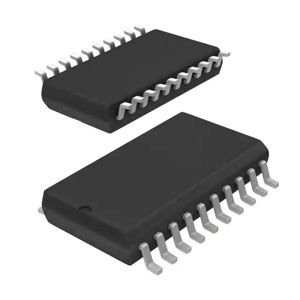

MC74HC373ADWR2G
IC LATCH OCTAL 3ST TRANS 20SOIC

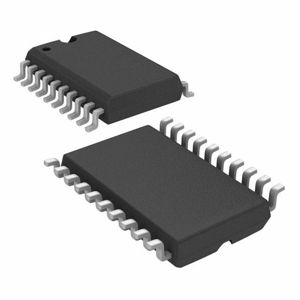

SN74ALS533ADW
IC D-TYPE LATCH TRI-ST 20-SOIC

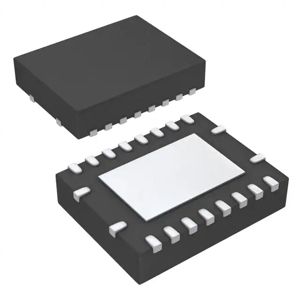

SN74LV573ARGYR
IC D-TYP LATCH OCT 3ST 20VQFN

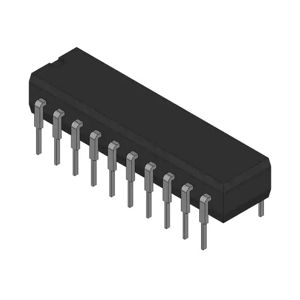

CD74AC573E
BUS DRIVER
MM74HCT373WM
IC LATCH OCTAL D 3 ST 20SOIC

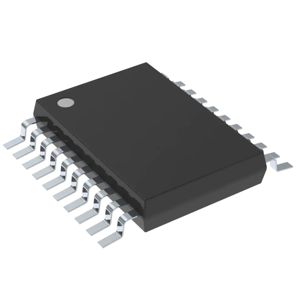

SN74LVC841ADW
IC BUS-INTERFACE LATCH 24-SOIC

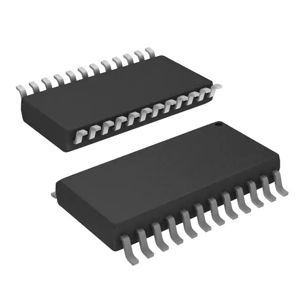

CY74FCT841ATSOC
IC 10BIT BUSINT LATCH3ST 24-SOIC

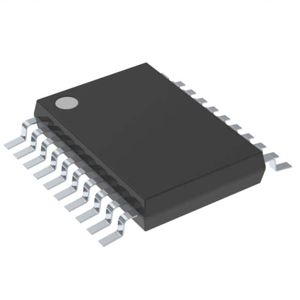

SN74LV573ATDGVR
IC OCTAL LATCH 3ST 20-TVSOP

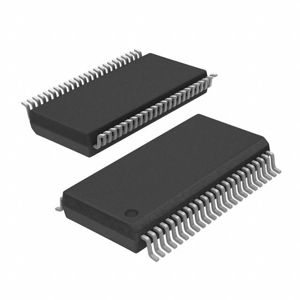

SN74AHCT16373DL
IC 16BIT TRANSP D LATCH 48-SSOP

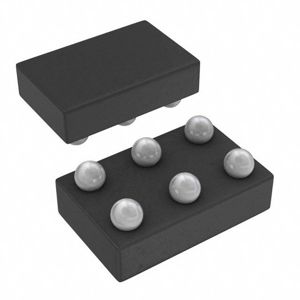

SN74LVC1G373YEPR
IC D-TYPE LATCH SGL 3-ST 6DSBGA
DM74ALS533N
BUS DRIVER

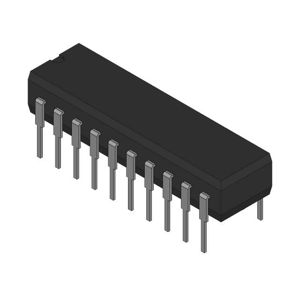

CD74HC373EX
OCTAL TRANSPARENT D-TYPE LATCH
SN74ALVTH16373DLR
IC D-TYPE LATCH TRI-ST 48-SSOP
CLVTH162373MDLREP
IC 16BIT TRANSP D-LATCH 48-SSOP
SN74LV373ADW
IC OCT D TRANSP LATCH 20-SOIC

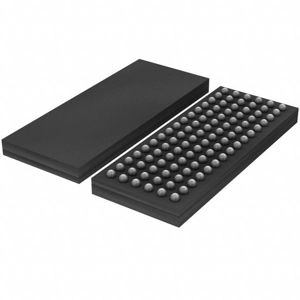

74LVCH32373AEC,551
IC 32BIT TRANSP D LATCH 96LFBGA

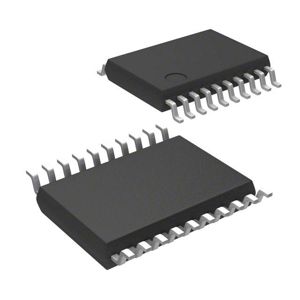

TC74LCX373FK(EL,K)
IC OCTAL D-TYPE LATCH 20VSSOP

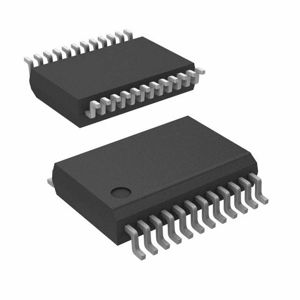

SN74ABT841ADBR
