Logic - Latches: Essential Components for Digital Circuit Design
Definition:
Logic Latches are fundamental digital integrated circuits (ICs) designed to store and maintain a binary state (0 or 1) in electronic systems. As a subcategory of Logic under Integrated Circuits (ICs), latches serve as basic memory elements, capturing and holding data until explicitly changed. They are widely used in sequential logic circuits, enabling temporary data retention for synchronization, control, and state management in complex systems.
Types of Logic Latches:
1. SR Latches (Set-Reset): The simplest type, using two inputs (Set and Reset) to control the output state.
2. D Latches (Data): Features a single data input (D) and a control signal (Enable) to capture and hold the input value.
3. Transparent Latches: Outputs follow inputs while enabled, "latching" the value when disabled.
4. Gated Latches: Include an additional enable gate for synchronized operation in clocked systems.
Purchasing Recommendations:
- Application Alignment: Choose SR latches for basic control circuits, D latches for data storage, and gated variants for clock-dependent designs.
- Performance Metrics: Prioritize propagation delay, power consumption, and voltage compatibility (e.g., 3.3V vs. 5V) based on system requirements.
- Packaging: Select surface-mount (SMD) or through-hole packages (DIP) per assembly constraints.
- Reliability: Opt for industrial-grade latches for harsh environments and automotive/medical certifications (AEC-Q100, ISO 13485) if needed.
Ideal for registers, buffer storage, and real-time control, Logic Latches ensure robust digital system performance. Evaluate datasheets and supplier credibility to balance cost and functionality.
Filter and sort
Categories

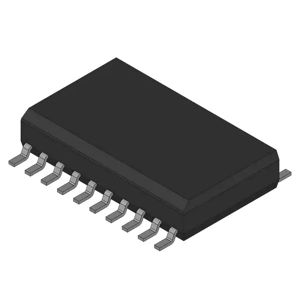

74F373SC
BUS DRIVER

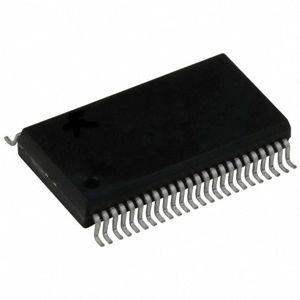

SN74HSTL16919DGGR
IC MEMORY ADDRESS LATCH 48-TSSOP

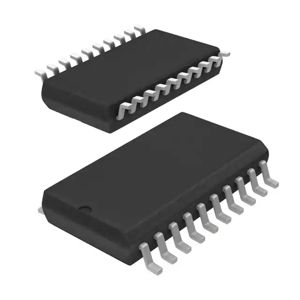

MC74VHC373DWR2
IC LATCH OCTAL D 3ST 20SOIC

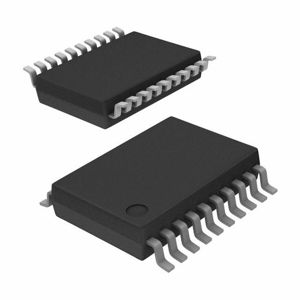

SN74AHC373DBR
IC OCT TRANSP D-TYP LATCH 20SSOP

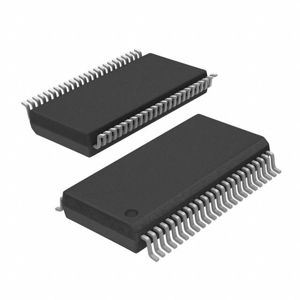

SN74ALVCH16373DL
IC TRANSPARENT LATCH 48-SSOP
CD74HC75PWT
IC DUAL 2BIT TRANS LATCH 16TSSOP

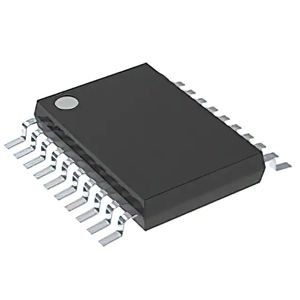

SN74AC373PW
IC OCTAL D TRANSP LATCH 20-TSSOP
SN74AHC573DW
IC OCT TRNSP D-TYP LATCH 20-SOIC
CD74HCT259E
IC 8BIT ADDRESSABLE LATCH 16-DIP
SN74ALS996DW
IC D READ-BACK LATCH 24-SOIC
SN74HCS259QWBQBRQ1
AUTOMOTIVE 8-BIT ADDRESSABLE LAT
SN74ACT563PW
IC OCTAL D TRANSP LATCH 20-TSSOP
CD74AC573M
IC OCTAL TRANSP LATCH 3ST 20SOIC
SN74ACT373PW
IC OCTAL D TRANSP LATCH 20-TSSOP

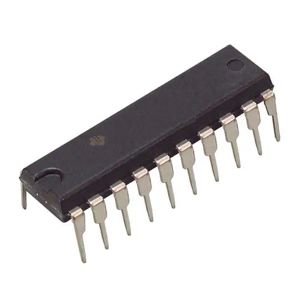

SN74ACT373N
IC OCT TRANSP D-TYP LATCH 20-DIP

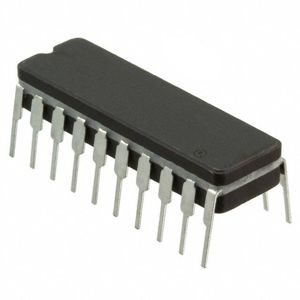

54FCT373ATDB
IC TXRX OCTAL BIDIRECT 20CERDIP

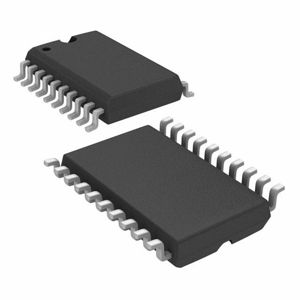

SN74ALVCH373DWR
IC OCTAL LATCH TRI-ST 20-SOIC

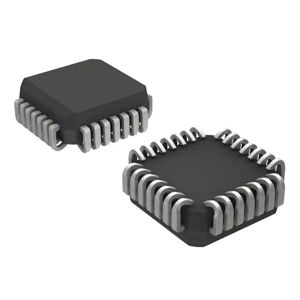

MC10E150FNG
IC LATCH 6BIT D 5V ECL 28-PLCC

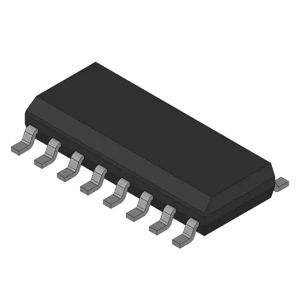

74LS279FPEL-E
74LS279 QUAD SET-RESET LATCHES

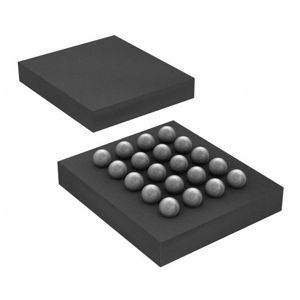

SN74LV573AZQNR
IC OCT TRANSP LATCH D 3ST 20BGA
