Logic - Multivibrators
Logic - Multivibrators | Integrated Circuits (ICs)
Definition:
Logic - Multivibrators are a specialized category of digital integrated circuits (ICs) designed to generate and control oscillating or pulsed signals. These devices operate as astable (free-running oscillators), monostable (one-shot pulse generators), or bistable (flip-flop) circuits, making them essential for timing, clocking, and signal synchronization applications in electronic systems.
Types of Multivibrator ICs:
1. Astable Multivibrators: Produce continuous square-wave oscillations, ideal for clock generation and LED flashers.
2. Monostable Multivibrators: Generate a single output pulse of fixed duration upon triggering, used in timers and debouncing circuits.
3. Bistable Multivibrators (Flip-Flops): Maintain one of two stable states until triggered, critical for memory storage and state control.
4. Programmable Multivibrators: Offer adjustable timing parameters via external resistors/capacitors for flexible design integration.
Purchasing Recommendations:
- Application Alignment: Select astable ICs (e.g., NE555) for repetitive signals, monostable variants (e.g., 74HC123) for pulse stretching, and bistable types (e.g., CD4013) for latching logic.
- Timing Precision: Verify frequency range and stability specifications (e.g., 1% tolerance) for time-critical designs.
- Package & Compatibility: Match IC package (SOIC, DIP, etc.) to PCB constraints and ensure voltage compatibility (3.3V/5V) with your system.
- Quality Assurance: Prioritize RoHS-compliant, industry-standard brands (Texas Instruments, ON Semiconductor) for reliability.
Multivibrators are pivotal in digital logic design, offering tailored solutions for pulse generation and signal conditioning across consumer electronics, automotive, and industrial automation.
Filter and sort
Categories

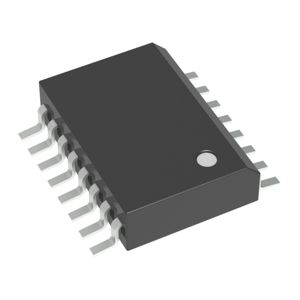

NLV14538BDWR2G
IC MULTIVIBRATOR 95NS 16SOIC
SN74AHC123APWR
IC MULTIVIBRATOR 7.5NS 16TSSOP

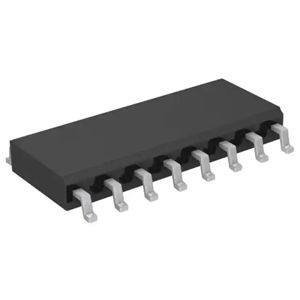

MM74HC123AM
IC MULTIVIBRATOR 22NS 16SOIC
SN74LS123D
IC MULTIVIBRATOR 28NS 16SOIC
11C90DM/B
PRESCALER, ECL SERIES
74AHCT123APW,118
IC MULTIVIBRATOR 5NS 16TSSOP

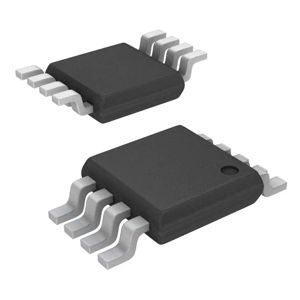

74LVC1G123DP,125
IC MULTIVIBRATOR 5.3NS 8TSSOP

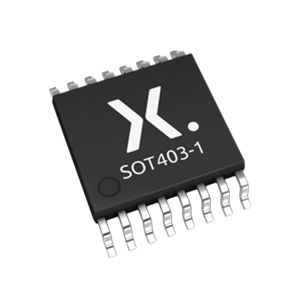

74HC123PW,112
IC MULTIVIBRATOR 65NS 16TSSOP
CD74HC423M
IC MULTIVIBRATOR 25NS 16SOIC

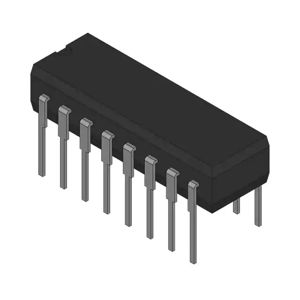

5962-8780501EA
CD54HC221 HIGH SPEEC CMOS LOGIC

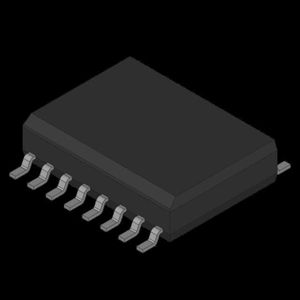

MC74HC4538AFR1
DUAL PRECISION MONOSTABLE MULTIV
CD74HCT123MT
IC MULTIVIBRATOR 25NS 16SOIC

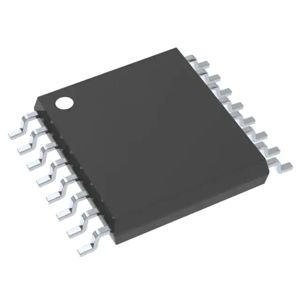

SN74LV123APWR
IC MULTIVIBRATOR 13NS 16TSSOP

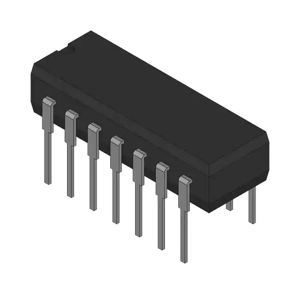

4047BDC
IC MULTIVIBRATOR

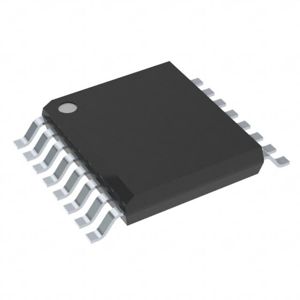

SN74LS221DBR
IC MULTIVIBRATOR 45NS 16SSOP
CD74HCT123E
IC MULTIVIBRATOR 25NS 16DIP
CD4047BPWR
IC MULTIVIBRATOR 80NS 14TSSOP

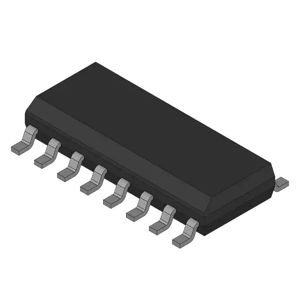

MM74HC221ASJ
IC MULTIVIBRATOR

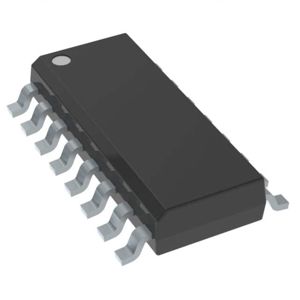

SN74LS123NSR
IC MULTIVIBRATOR 28NS 16SO
74123DC
IC MULTIVIBRATOR
